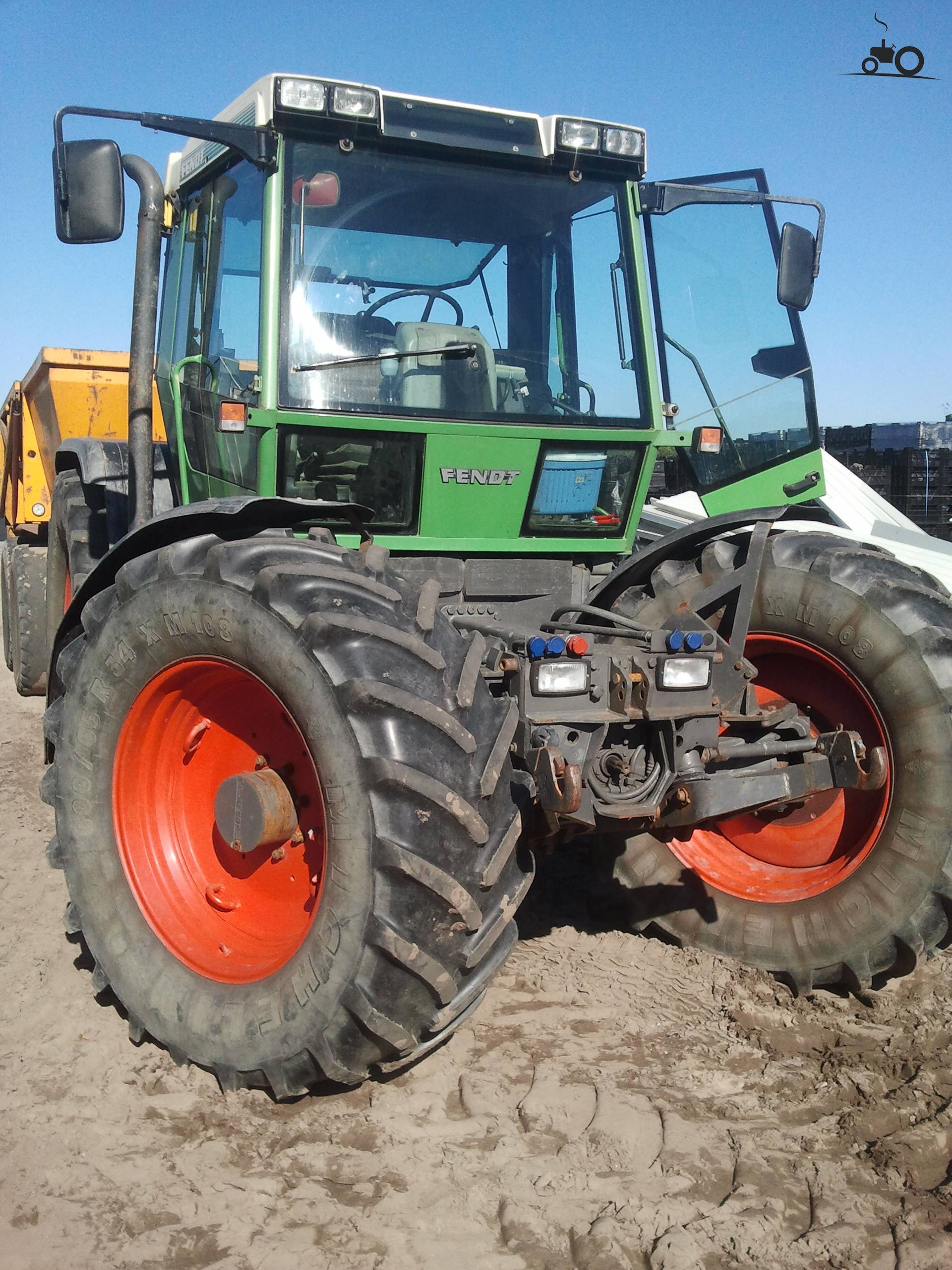

The Fendt Xylon 522 is a tractor model with a rating of approximately 125 hp, placing it at the higher end of its class. It was produced from 1995 to 2004. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine and features four-wheel drive with a 44-speed gearbox. Its operating weight is listed at 6530 kg, suitable for operations covering 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Weight
6530 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
125 hp
Recorded weight
6530 kg
Transmissions
44-speed
Production years
1995-2004
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerFendtReference
Tool Carrier tractorReference
Drive4x4 4WDReference
Engine
MAN 4.6L 4-cyl dieselReference
Fuel tank230.1 LReference
Engine93.2 kWReference
MANReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke108 x 125 mmReference
Power93.2 kWReference
Rated RPM2300Reference
Torque500.1 NmReference
Torque RPM1400Reference
Transmission
44-speedReference
Gears44 forward and reverseReference
PTO & Hydraulics
Pump flow101.8 lpmReference
Rear lift7758 kgReference
Rear PTO Type540, 750, 1000, 1400Reference
Dimensions
Wheelbase305 cmReference
Weight6530 kgReference
Front tire480/70R30Reference
Rear tire520/70R38Reference
Ag front480/70R30Reference
Ag rear520/70R38Reference
Length542 cmReference
Height303 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
