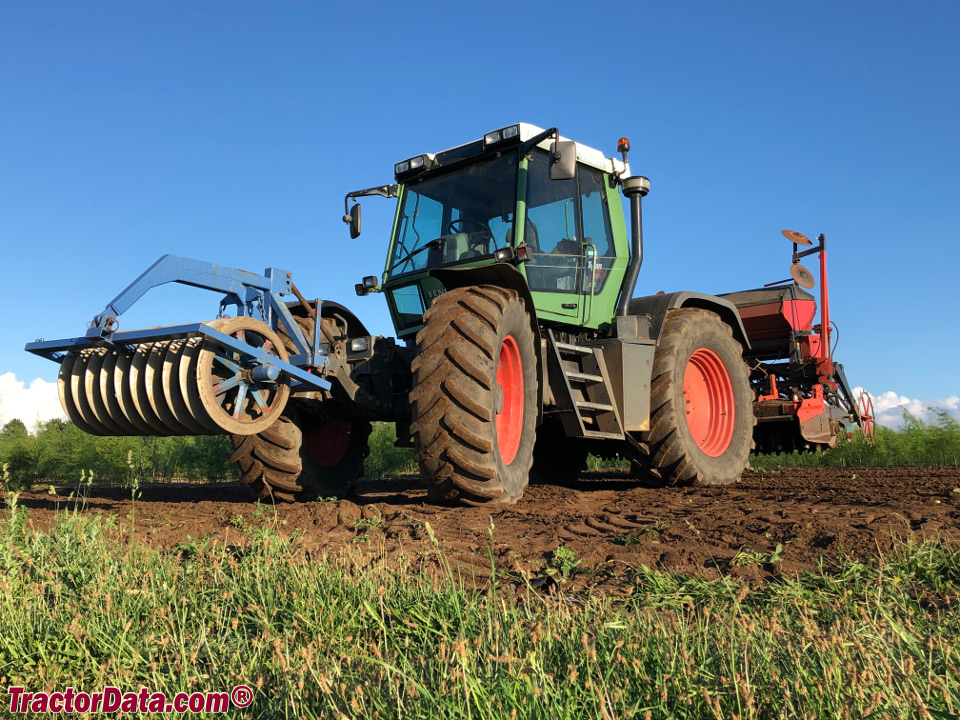

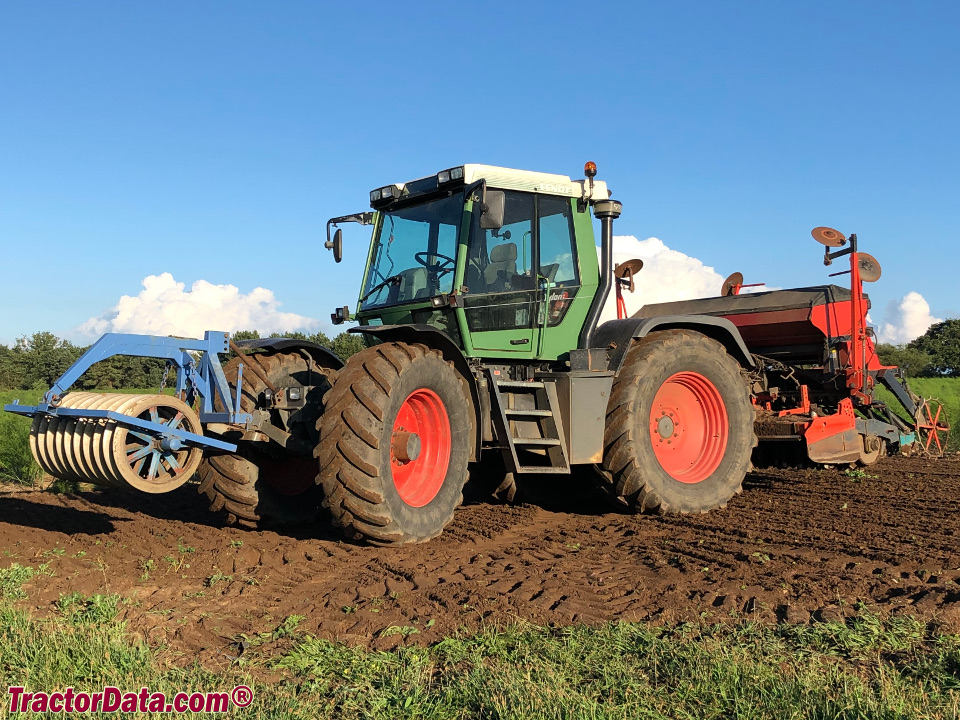

The Fendt Xylon 524 is a tractor rated at 147 hp, positioning it among the higher-powered models in its class. It was manufactured from 1995 to 2004. Power is supplied by a 4-cylinder turbocharged diesel liquid-cooled engine, which is transmitted through a four-wheel drive system to a 44-speed gearbox. The tractor's listed weight is 6755 kg, with an operating capacity of approximately 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
147 hp
Weight
6755 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
147 hp
Recorded weight
6755 kg
Transmissions
44-speed
Production years
1995-2004
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerFendtReference
Tool Carrier tractorReference
Drive4x4 4WDReference
Engine
MAN 4.6L 4-cyl dieselReference
Fuel tank210.1 LReference
Fuel tank230.1 LReference
Engine109.6 kWReference
MANReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke108 x 125 mmReference
Power109.6 kWReference
Rated RPM2300Reference
Torque596.1 NmReference
Torque RPM1400Reference
Transmission
44-speedReference
Gears44 forward and reverseReference
PTO & Hydraulics
Pump flow101.8 lpmReference
Rear lift7758 kgReference
Rear PTO Type540, 750, 1000, 1400Reference
Dimensions
Wheelbase305 cmReference
Weight6755 kgReference
Front tire520/70R30Reference
Rear tire580/70R38Reference
Ag front520/70R30Reference
Ag rear580/70R38Reference
Length542 cmReference
Height307 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
