Tractor · 1952Unverified

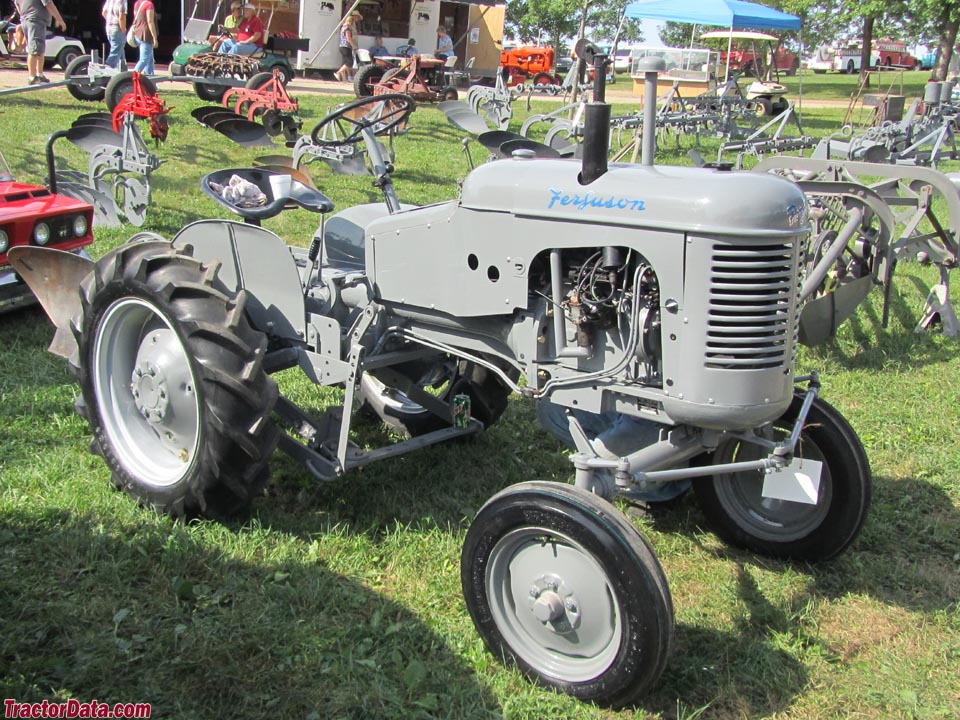

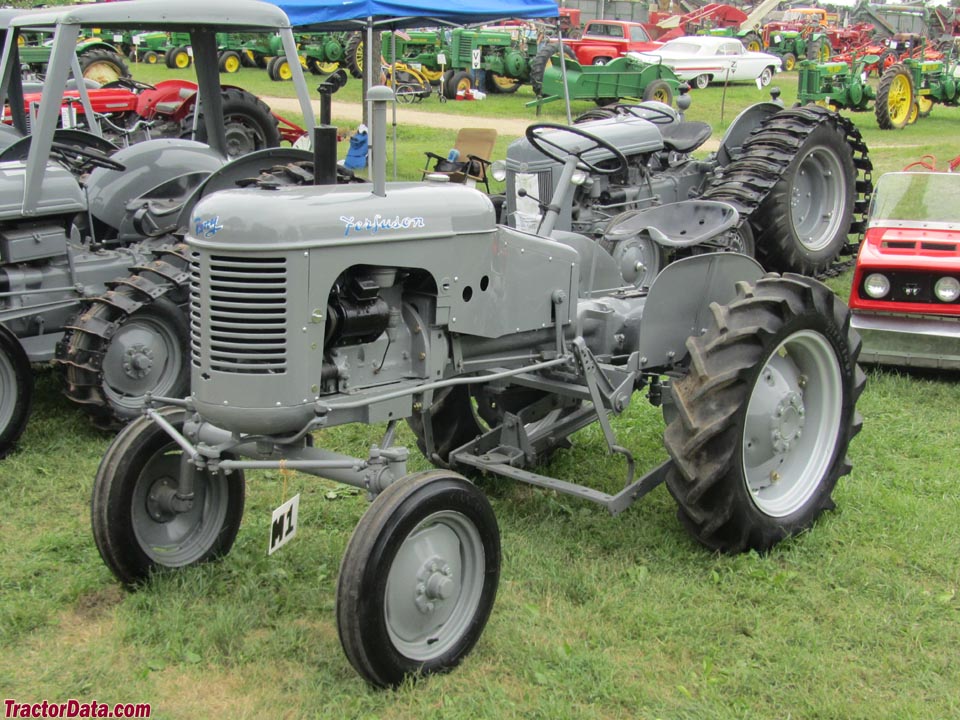

Ferguson Pony
Ferguson Pony — Utility tractor · 10 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Max power
7.8 kW
Weight
1450 to 1890 pounds
Hover a source tag to verify
Overview
ManufacturerFergusonReference
Utility tractorReference
Built in Woodstock, Ontario, CanadaReference
After Massey-Harris and Ferguson merged, several models were sold under the brand of the other manufacturer.Reference
Two-wheel driveReference
Final drivesbull gearReference
Manual steeringReference
Differential mechanical contracting band brakesReference
Open operator station.Reference
Engine
Continental 1.0L 4-cyl gasolineReference
Plows1Reference
Drawbar (tested)7.8 kWReference
Belt (tested)8.7 kWReference
Continental N62Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke60 x 89 mmReference
Air cleaneroil bathReference
Compression6.5:1Reference
Rated RPM1800Reference
Oil capacity3.8 LReference
Coolant capacity6.6 LReference
SparkplugChampion 18625AReference
Belt power (max)8.7 kWReference
Max power7.8 kWReference
Transmission
3-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears3 forward and 1 reverseReference
Clutchmechanical dry discReference
Oil capacity3.4 LReference
Capacities
Fuel26.5 LReference
Diameter15 cmReference
Width13 cmReference
RPM1990Reference
Speed1005.84 meters/minReference
PTO & Hydraulics
Hydraulic system1.5 LReference
TypeoptionalReference
Capacity1.5 LReference
Pump flow9.5 lpmReference
Rear PTOoptionalReference
Rear PTO Type540Reference
Dimensions
Wheelbase167 cmReference
Weight1450 to 1890 poundsReference
Front tire4.00x-15Reference
Rear tire8-24Reference
Ag front4.00x-15Reference
Ag rear8-24Reference
Ag rear9-24Reference
Height152 cmReference
Front tread114 to 191 cmReference
Rear tread104 to 182 cmReference
Shipping657 kgReference
Operating857 kgReference
Ballasted1155 kgReference
Ferguson Pony attachments
bladeReference
Pony Serial Number Location
Serial number on the right-front side of the tractor frame.Reference
Pony Serial Numbers
1947PGS1001Reference
1948PGS1321Reference
1949PGS1571Reference
1947PGA1001Reference
1948PGA1001AReference
1949PGA1571AReference
1950PGA10817AReference
1951PGA13726Reference
1952PGA18225Reference
1953PGA22007Reference
1954PGA22669Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemgeneratorReference
Test results
Gasoline 3-speed 2WDSeptember 14 - 22, 1948Link: Nebraska Tractor Test 401 fileReference
Belt fuel use (max)4.5 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull649 kgReference
Gear 1 used for pull test.Reference
Speeds
With 8-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
