Tractor · 1946Unverified
Ferguson TE-20
Ferguson TE-20 — Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Max power
15.4 kW
Weight
1251 kg
Hover a source tag to verify
Overview
ManufacturerFergusonReference
Utility tractorReference
Built in Coventry, EnglandReference
Total built172,185Reference
In 1947 the Standard engine replaced the Continental engine in the TE20, this modified version was named the TEA20.Reference
Two-wheel driveReference
SteeringmanualReference
Differential mechanical expanding shoe brakesReference
Open operator station with pressed steel seat.Reference
Variants
TE-20Continental engineReference
TEA-20Standard engineReference
TO-20US-builtReference
TEB-20narrow tractorReference

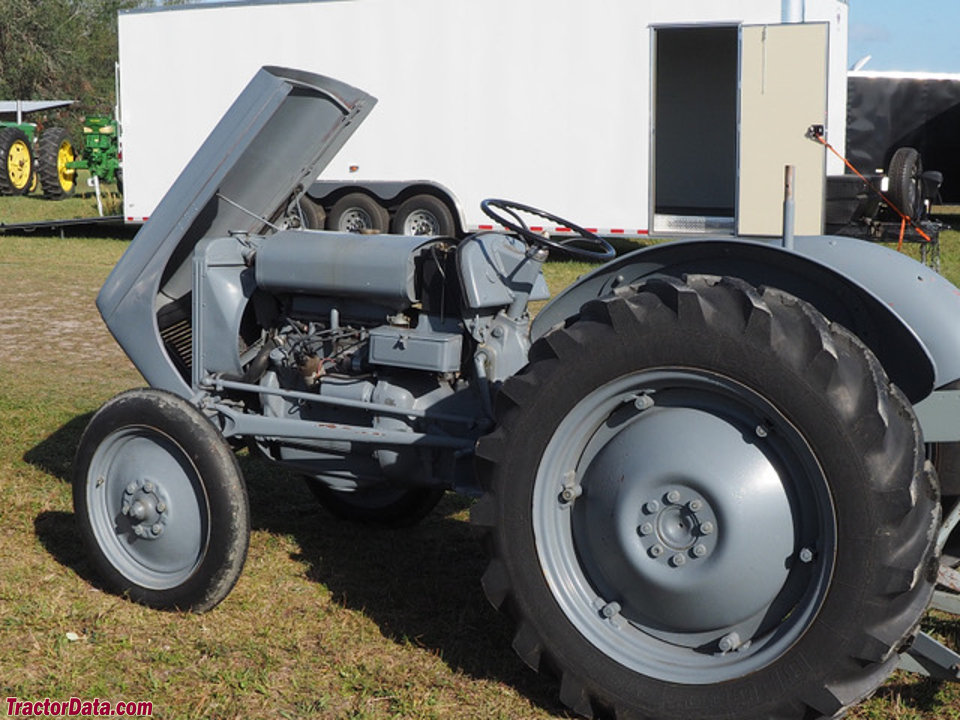

Engine
Continental 2.0L 4-cyl gasolineReference
Fuel tank37.9 LReference
Plows2 (14-inch)Reference
Drawbar (tested)15.4 kWReference
Belt (tested)18.9 kWReference
Continental Z-120Reference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement2.0 LReference
Bore/Stroke81 x 95 mmReference
Fuel use8.6 l/hourReference
Air cleaneroil bathReference
Rated RPM1750Reference
Starter volts6Reference
Oil capacity5.7 LReference
Belt power (max)18.9 kWReference
Max power15.4 kWReference
Transmission
4-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
Rear PTOtransmissionReference
Rear PTO Type540 (1.125)Reference
Dimensions
Wheelbase177 cmReference
Weight1251 kgReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Length292 cmReference
Width161 cmReference
Height132 cmReference
Operating weight1251 kgReference
Ballasted weight2045 kgReference
TE-20 Serial Numbers
Location:Instrument panelReference
19461Reference
1947316Reference
194820895Reference
Final48000Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Charging systemLucas generatorReference
Battery volts6Reference
Test results
Gasoline 4-speed 2WDApril 26 - May 10, 1948Link: Nebraska Tractor Test 392 fileReference
Belt fuel use (max)9.5 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull1202 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
