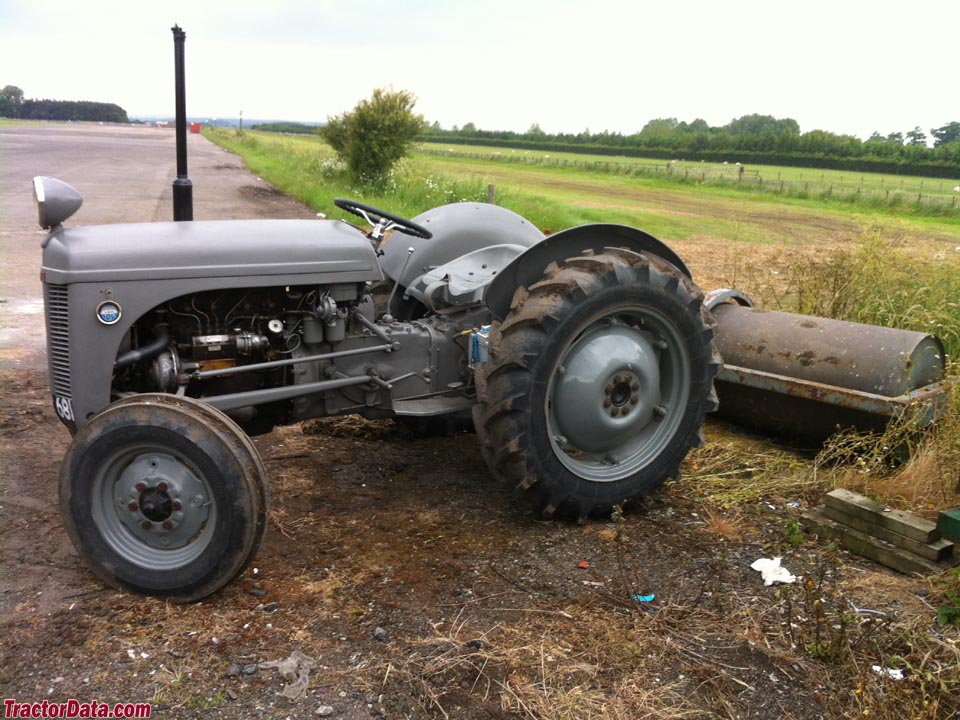

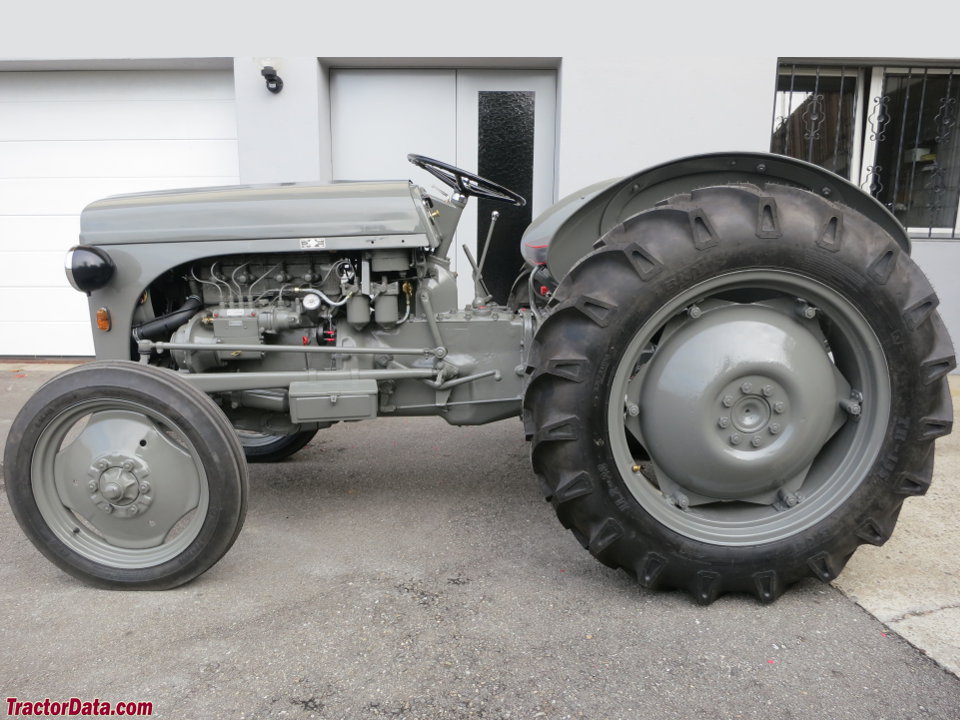

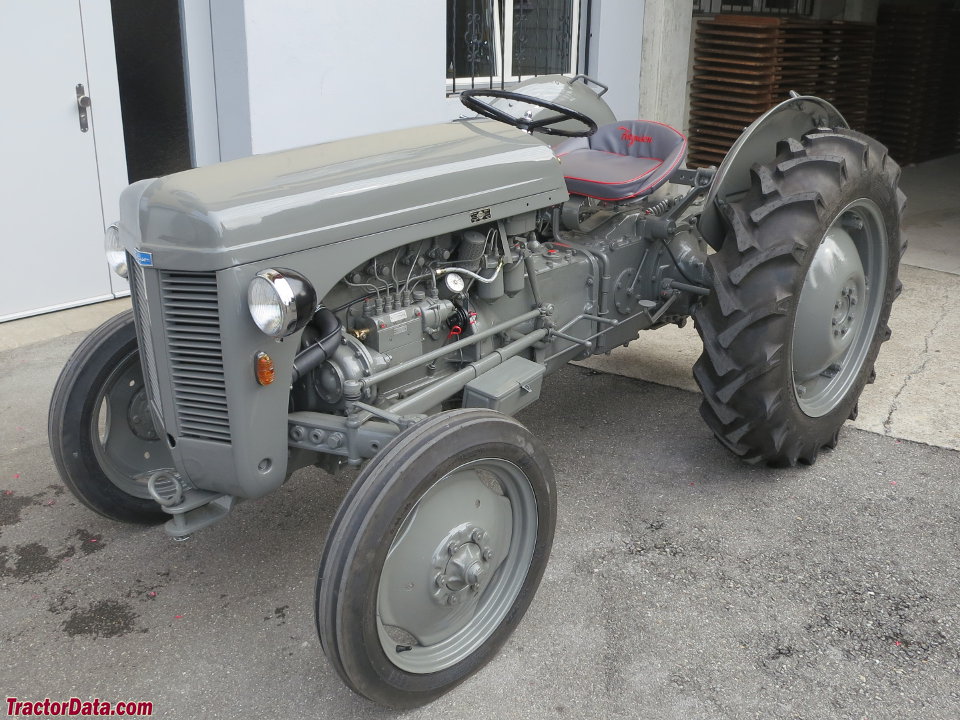

The Ferguson TEF-20 is a tractor model with a rated power output of 26 hp, positioning it within the lighter category of its class. Manufactured from 1951 to 1956, this model features a 4-cylinder diesel liquid-cooled engine paired with a two-wheel drive system and a 4-speed gearbox. The TEF-20 is suitable for operations on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Catalogue coverage
Variants represented
2
Richest spec table
36 rows
Recorded power
26 hp
Transmissions
4-speed unsynchronized gear
Production years
1951-1956
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFergusonReference
Utility tractorReference
Built in Coventry, EnglandReference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Variants
TET-20industrial tractorReference
Engine
Standard Motor 2.1L 4-cyl dieselReference
Belt (claimed)19.4 kWReference
Standard MotorReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.1 LReference
Bore/Stroke81 x 102 mmReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Transmission
4-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
Rear PTOtransmissionReference
Rear PTO Type540 (1.125)Reference
Engine RPM545@1500Reference
TEF-20 Serial Numbers
1951167837Reference
1952241336Reference
1953310780Reference
1954367999Reference
1955428093Reference
1956488579Reference
Final517651Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Batteries2Reference
Battery volts6Reference
Speeds
With 10x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
