Tractor · 1954Unverified
Ferguson TO-35
Ferguson TO-35 — Utility tractor · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Max power
22.8 kW
Weight
1451 kg
Hover a source tag to verify
Overview
ManufacturerFergusonReference
Utility tractorReference
Built in Detroit, Michigan, USAReference
Two-wheel driveReference
Manual steeringReference
Differential mechanical expanding shoe brakesReference
Open operator stationReference
Variants

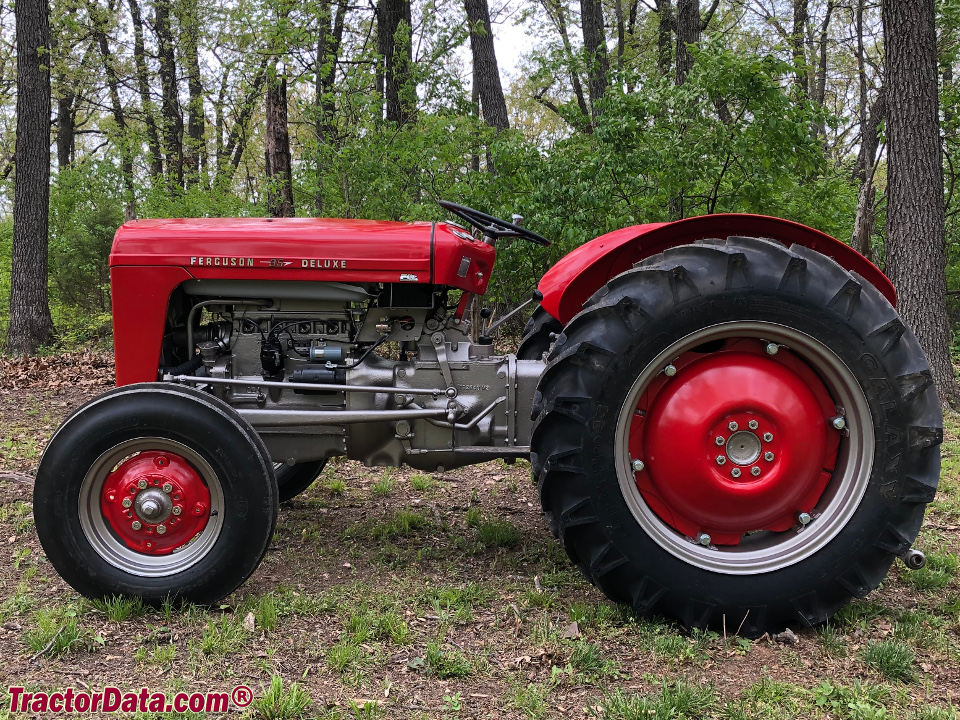

TO-35 Deluxelive PTO with two-stage clutchReference
Engine
Continental 2.2L 4-cyl gasolineReference
Standard Diesel Company 2.3L 4-cyl dieselReference
Drawbar (tested)22.8 kWReference
Belt (tested)24.8 kWReference
Continental Z-134Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 98 mmReference
Fuel use10.5 l/hourReference
Air cleaneroil bathReference
Compression6.6:1Reference
Rated RPM2000Reference
Starter volts6 (early)Reference
Starter volts12Reference
Coolant capacity9.5 LReference
Standard Diesel Company 23CReference
dieselReference
liquid-cooled vertical L-headReference
The 23C diesel engine was first available in the TO-35 in 1958.Reference
Displacement2.3 LReference
Bore/Stroke84 x 102 mmReference
Fuel use8.5 l/hourReference
Pre-heatingglow plugsReference
Compression20:1Reference
Firing order1-3-4-2Reference
Coolant capacity8.5 LReference
Intake valve clearance0.305 mmReference
Exhaust valve clearance0.203 mmReference
Oil capacity7.1 LReference
Belt power (max)24.8 kWReference
Max power22.8 kWReference
Power at rated engine speed24.6 kWReference
Max power22.7 kWReference
Transmission
6-speed unsynchronized gearReference
TransmissionDual RangeReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
Oil capacity30.3 LReference
Oil type[10oC]Reference
50oF [10oC]↑: SAE90Reference
50oF [10oC]↓: SAE80Reference
Three speeds, plus reverse, with high and low ranges. Range shift lever has low, high, and 'S' positions. Lever must be in S to start tractor.Reference
PTO & Hydraulics
PTO (tested)24.6 kWReference
Hydraulic system30.3 LReference
Capacity30.3 LReference
Pressure172.4 barReference
Valves0 to 2Reference

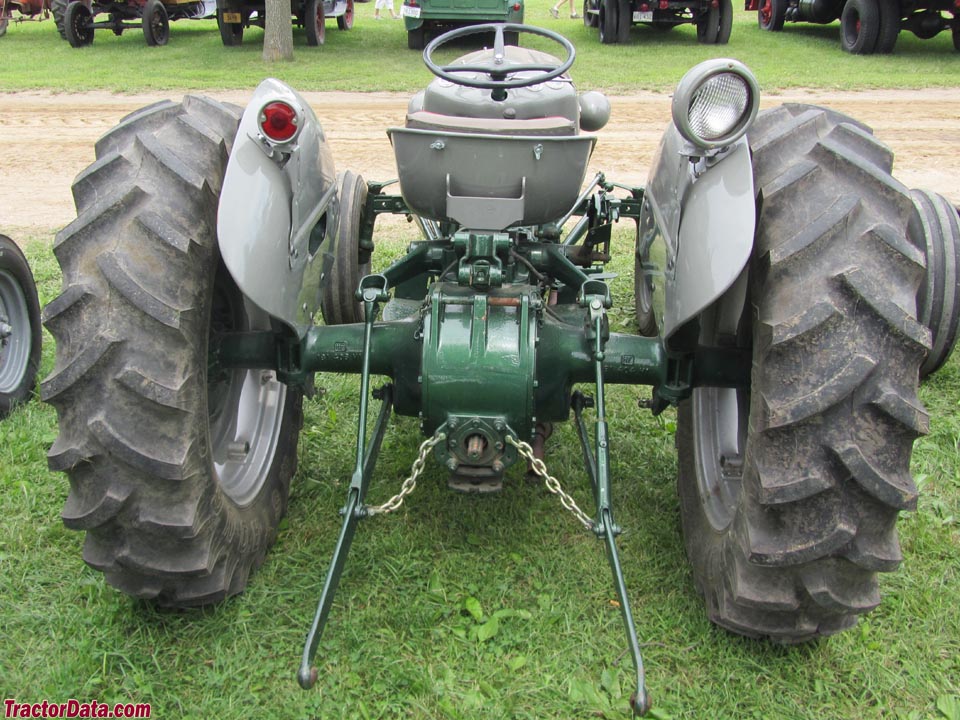

Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540/groundReference
Power at rated PTO speed19.8 kWReference
Capacities
Gas Fuel53.0 LReference
Diesel Fuel37.9 LReference
Dimensions
Wheelbase182 cmReference
Weight1451 kgReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Ag front4.00-19Reference
Ag front5.50-16Reference
Ag rear13-24Reference
Length297 cmReference
Width161 cmReference
Height144 cmReference
Operating weight1451 kgReference
Ballasted weight2619 kgReference
Ground clearance34 cmReference
Front tread116 to 203 cmReference
Rear tread121 to 193 cmReference
Ferguson TO-35 attachments
front-end loaderReference
TO-35 Serial Number Location
Data plate to left of steering wheelReference
TO-35 Serial Numbers
1954140001Reference
1955140006Reference
1956167157Reference
1957171741Reference
1958178216 (gas special)Reference
1958183348 (gas deluxe)Reference
Diesel 1958180742Reference
1959188851 (gas special)Reference
1959185504 (gas deluxe)Reference
Diesel 1959187719Reference
1960203680 (gas special)Reference
1960203198 (gas deluxe)Reference
Diesel 1960203360Reference
FAQ: How to read a serial number table.Reference
Electrical
Groundpositive (early)Reference
GroundnegativeReference
Charging systemgeneratorReference
Charging amps12Reference
Gas Batteries1Reference
Diesel Batteries2Reference
Battery volts6Reference
Test results
NTTL 564: gasoline 6-speed 2WDReference
NTTL 690: diesel 6-speed 2WDReference
Gasoline 6-speed 2WDOctober 10 - 17, 1955Link: Nebraska Tractor Test 564 fileReference
Belt fuel use (max)11.7 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull1542 kgReference
Gear 3 used for pull test.Reference
Diesel 6-speed 2WDApril 31959, - April 13, 1959Link: Nebraska Tractor Test 690 fileReference
PTO performanceReference
Fuel use8.3 l/hourReference
Fuel use6.4 l/hourReference
Fuel use8.7 l/hourReference
Max pull1758 kgReference
Gear 2 used for pull test.Reference
Speeds
With 11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
