Tractor · 1984Unverified

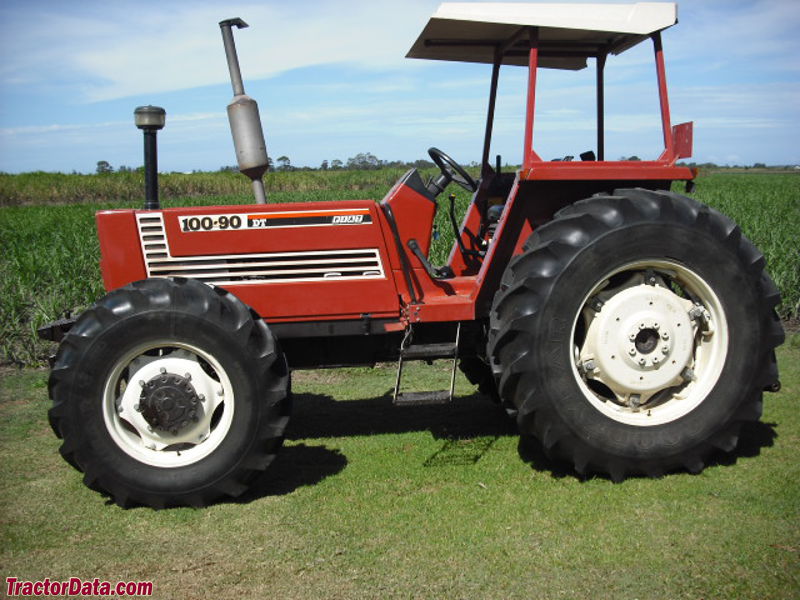

Fiat 100-90

Name: Fiat 100-90
Brand: Fiat

Fiat 100-90 — 90 Series · 100 hp. Reference specifications; pending source verification.

The Fiat 100-90 is a tractor model with a rating of approximately 100 hp, situated within the mid-range of its class. Produced from 1984 to 2002, the 100-90 is equipped with a 6-cylinder diesel liquid-cooled engine and features mechanical front-wheel drive with a 15-speed gearbox. Its operating weight ranges from 9437 to 10297 pounds. The 100-90 is suitable for operations covering 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Weight

9437 to 10297 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

100 hp

Recorded weight

4280 kg

Transmissions

15-speed synchronized

Production years

1984-2002

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (100-90DT)Reference

Final drivesplanetaryReference

Differential lockrear standardReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulic optionalReference

Supercomfort cab with air-conditioning optional.Reference

Engine

Fiat 5.4L 6-cyl dieselReference

Engine74.6 kWReference

Fiat 8065.06Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.4 LReference

Bore/Stroke100 x 115 mmReference

Power74.6 kWReference

Rated RPM2500Reference

Oil capacity13.6 LReference

Transmission

15-speed synchronizedReference

20-speed creeperReference

TypesynchronizedReference

Gears15 forward and 3 reverseReference

Clutchdry discReference

Five gears, plus reverse, in three ranges. A 40 KPH gearbox was available with four-wheel drive.Reference

TypecreeperReference

Gears20 forward and 4 reverseReference

Capacities

Fuel132.9 LReference

PTO & Hydraulics

Hydraulic system45.4 LReference

Typeopen centerReference

Capacity45.4 LReference

Pressure186.2 barReference

Valves1 to 3Reference

Pump flow43.9 lpmReference

Pump flow48.1 lpmReference

Pump flow57.2 lpmReference

Rear PTOindependentReference

Clutch304.8mm dry discReference

Rear PTO Type540/groundReference

Rear PTO Type540/1000/groundReference

Engine RPM540@2124Reference

Engine RPM1000@2409Reference

Dimensions

Wheelbase258 cmReference

Weight9437 to 10297 poundsReference

Front tire7.50-20Reference

Rear tire16.9/14-38Reference

Ag front7.50-20 (2WD)Reference

Ag front11.00-16 (2WD)Reference

Ag front12.4/11-28 (4WD)Reference

Ag front14.9/13-24 (4WD)Reference

Ag rear16.9/14-38Reference

Length399 cmReference

Height266 cmReference

Weight4280 kgReference

Weight4670 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
