Tractor · 1972Unverified

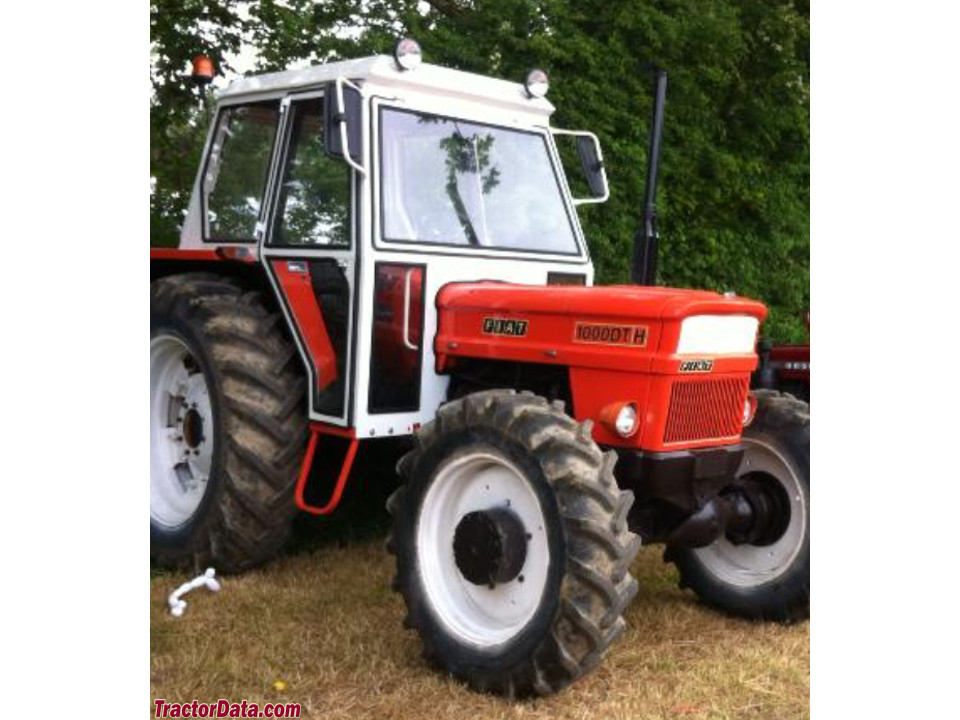

Fiat 1000
Fiat 1000 · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
8423 to 9746 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station.Reference
Engine
Fiat 5.2L 6-cyl dieselReference
Fuel tank115.1 LReference
Engine74.6 kWReference
Fiat 8065.02Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.2 LReference
Bore/Stroke100 x 110 mmReference
Power74.6 kWReference
Compression17:1Reference
Rated RPM2400Reference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Four synchronized gear in three ranges, plus reverse range. Available creeper range.Reference
PTO & Hydraulics
Pressure180.0 barReference
Pump flow46.9 lpmReference
Rear TypeIIReference
Rear lift3000 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase247 cmReference
4WD Wheelbase251 cmReference
Weight8423 to 9746 poundsReference
Front tire7.50-20Reference
2WD Rear tire16.9/14-38Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 16.9/14-38Reference
2WD Standard tires (ag)Front: 11.2/10-28. Rear: 16.9/14-38 (4WD)Reference
2WD Length417 cmReference
4WD Length423 cmReference
Width209 cmReference
2WD Height (hood)162 cmReference
4WD Height (hood)175 cmReference
2WD Weight3820 kgReference
2WD Weight4420 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
