Tractor · 1976Unverified

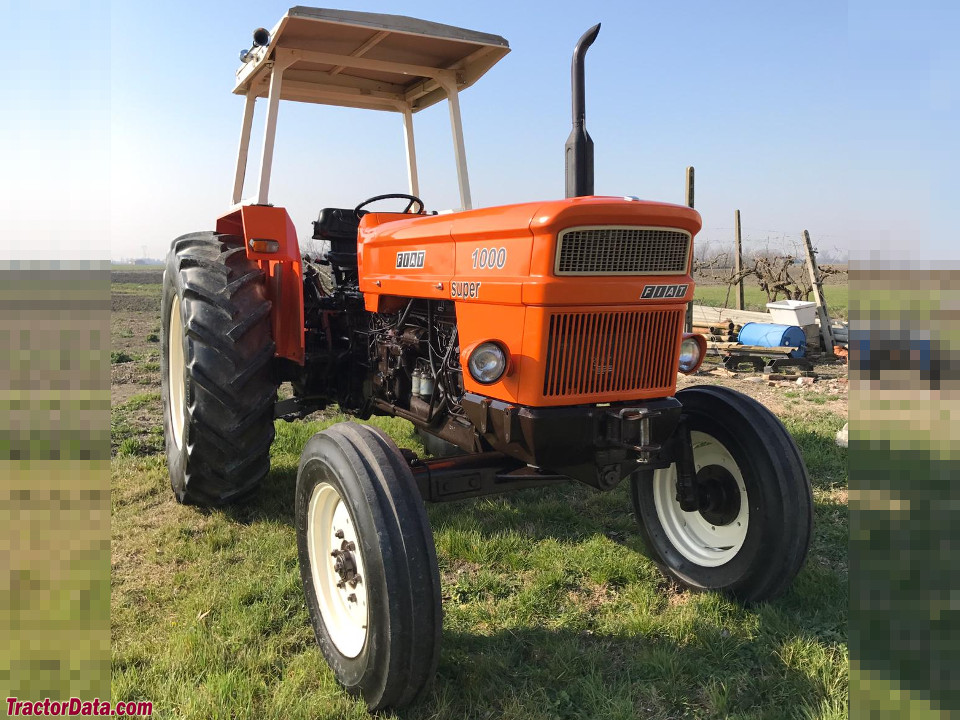

Fiat 1000 Super
Fiat 1000 Super — Row-Crop tractor · 109 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
109 hp
Weight
7561 to 8488 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Open operator station. Four-post ROPS and cab available.Reference
Variants
1000 Supertwo-wheel driveReference
1000DT Superfour-wheel driveReference
Engine
Fiat 5.5L 6-cyl dieselReference
Fuel tank115.1 LReference
Engine80.9 kWReference
Fiat 8065.04Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.5 LReference
Bore/Stroke103 x 110 mmReference
Power80.9 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2400Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
16-speed creeperReference
Gears12 forward and 4 reverseReference
Clutch304.8mm dry discReference
Four gears in three ranges, plus reverse range.Reference
TypecreeperReference
Gears16 forward and 4 reverseReference
Optional creeper adds an additional range to the transmission.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow42.0 lpmReference
Rear TypeIIReference
Controlposition and lower-link draft controlReference
Rear lift3200 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2093Reference
Engine RPM1000@2250Reference
Dimensions
2WD Wheelbase247 cmReference
4WD Wheelbase251 cmReference
Weight7561 to 8488 poundsReference
Front tire7.50-20Reference
2WD Rear tire16.9/14-38Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 16.9/14-38Reference
4WD Standard tires (ag)Front: 11.2/10-28. Rear: 16.9/14-38Reference
2WD Length417 cmReference
4WD Length423 cmReference
2WD Width193 cmReference
4WD Width209 cmReference
Height (ROPS)266 cmReference
2WD Weight3429 kgReference
4WD Weight3850 kgReference
2WD Ground clearance56 cmReference
4WD Ground clearance42 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Speeds
With 16.9/14-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
