Tractor · 1986Unverified

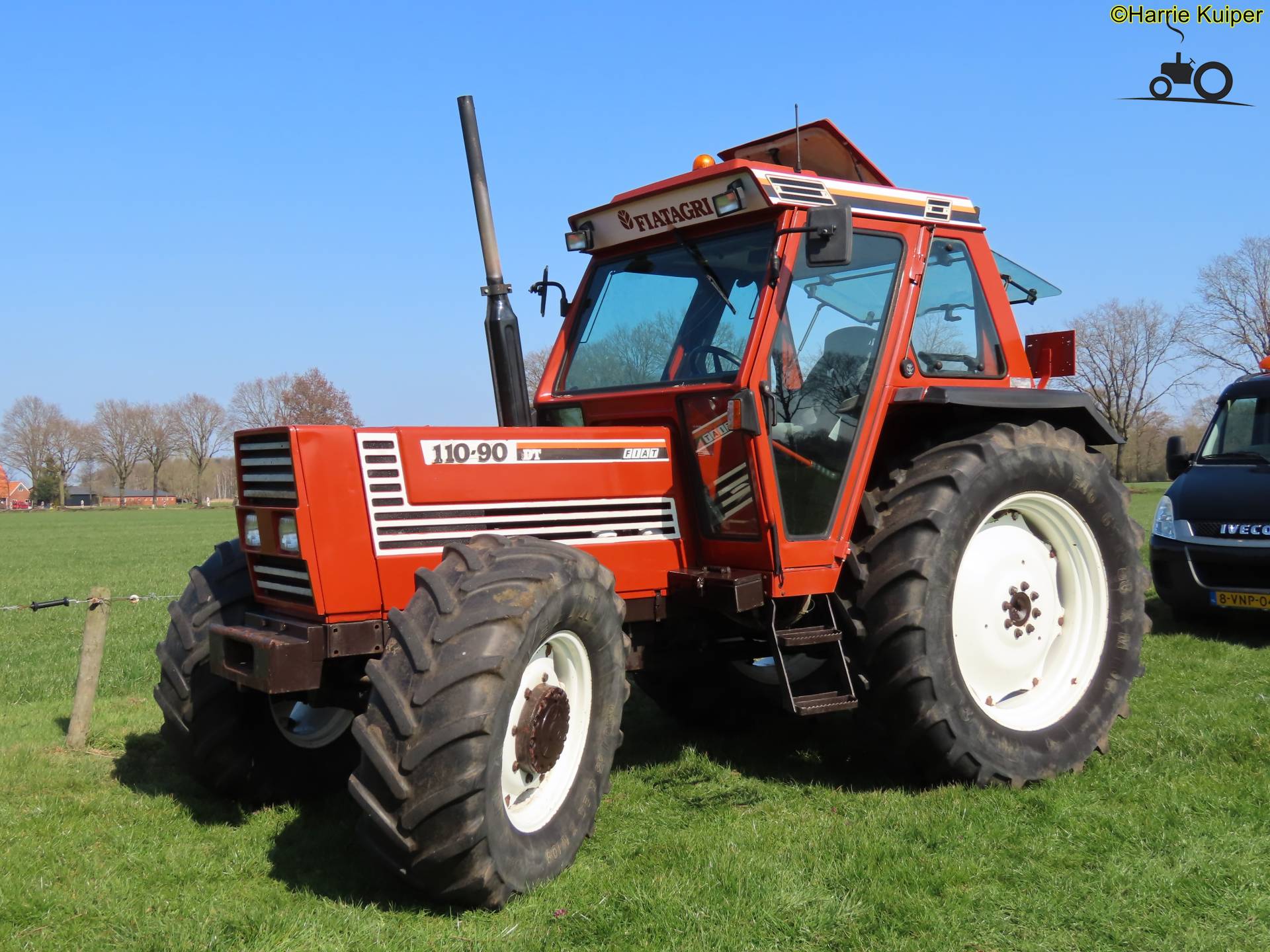

Fiat 110-90
Fiat 110-90 — 90 Series · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
4670 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (110-90DT)Reference
Final drivesplanetaryReference
Differential lockrear standardReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic optionalReference
Supercomfort cab with air-conditioning optional.Reference
Engine
Fiat 5.9L 6-cyl dieselReference
Engine82.0 kWReference
Fiat 8065.05Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke104 x 115 mmReference
Power82.0 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
Oil capacity13.6 LReference
Transmission
15-speed synchronizedReference
20-speed creeperReference
TypesynchronizedReference
Gears15 forward and 3 reverseReference
Clutchdry discReference
Five gears, plus reverse, in three ranges. A 40 KPH gearbox was available with four-wheel drive.Reference
TypecreeperReference
Gears20 forward and 4 reverseReference
Capacities
Fuel132.9 LReference
PTO & Hydraulics
Hydraulic system45.4 LReference
Typeopen centerReference
Capacity45.4 LReference
Pressure186.2 barReference
Valves1 to 3Reference
Pump flow57.2 lpmReference
Rear PTOindependentReference
Clutch304.8mm dry discReference
Rear PTO Type540/1000/groundReference
Engine RPM540@2124Reference
Engine RPM1000@2409Reference
Dimensions
Wheelbase257 cmReference
Weight4670 kgReference
Front tire7.50-20Reference
Rear tire16.9/14-38Reference
Ag front7.50-20 (2WD)Reference
Ag front11.00-16 (2WD)Reference
Ag front12.4/11-28 (4WD)Reference
Ag front14.9/13-24 (4WD)Reference
Ag rear16.9/14-38Reference
Length399 cmReference
Height262 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
