Tractor · 1977Unverified

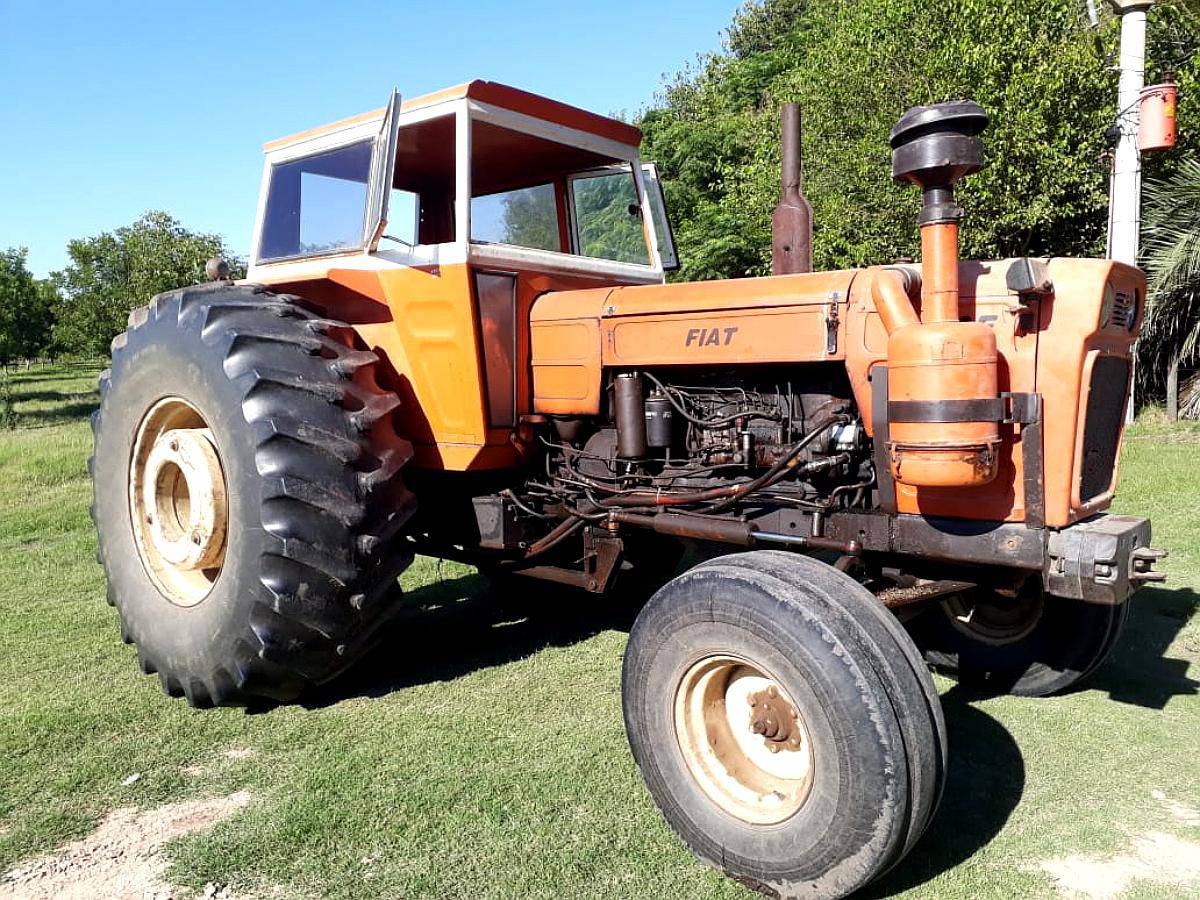

Fiat 1100E
Fiat 1100E — Row-Crop tractor · 133 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
133 hp
Weight
8168 to 9171 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Row-Crop tractorReference
Built in Sauce Viejo, ArgentinaReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Open operator station.Reference
Engine
Fiat 7.4L 6-cyl dieselReference
Fuel tank190.0 LReference
Engine99.2 kWReference
Fiat CP3/70Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke110 x 130 mmReference
Power99.2 kWReference
Compression17.4:1Reference
Rated RPM2300Reference
StarterelectricReference
Starter volts24Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIIReference
Rear PTO Type540Reference
Rear PTO Type-unknown-Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540@1980Reference
Engine RPM1000@1894Reference
Dimensions
2WD Wheelbase255 cmReference
4WD Wheelbase264 cmReference
Weight8168 to 9171 poundsReference
2WD Length429 cmReference
4WD Length429 cmReference
2WD Clearance (front axle)54 cmReference
4WD Clearance (front axle)41 cmReference
2WD Front tread176 cmReference
4WD Front tread181 cmReference
Rear tread200 cmReference
2WD3705 kgReference
4WD4159 kgReference
Ballasted6589 kgReference
Steering wheel184 cmReference
Fiat 1100E Height
Hood173 cmReference
Exhaust230 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
