Tractor · 1984Unverified

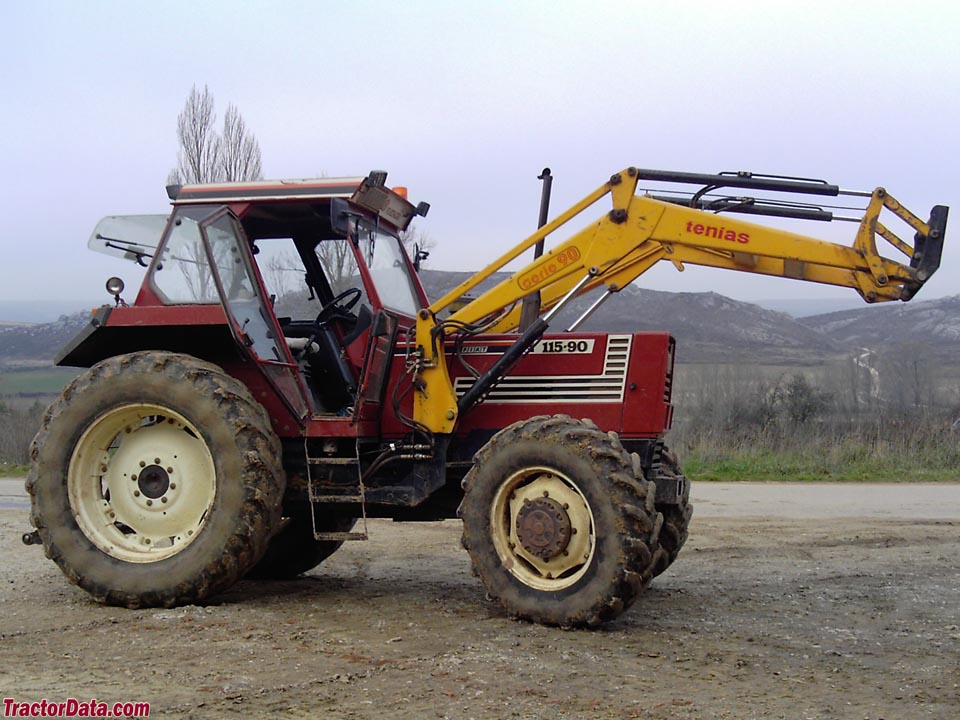

Fiat 115-90
Fiat 115-90 — 90 Series · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
11664 to 12656 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockhydrostatic front and rearReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with heat. Air-conditioning optional.Reference
Variants
115-902WDReference
115-90DT4WDReference
115-90H2WD hydraulic cluchReference
115-90HDT4WD hydraulic clutchReference
Engine
Fiat 5.9L 6-cyl dieselReference
Engine85.8 kWReference
Fiat 8065.05Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke104 x 115 mmReference
Power85.8 kWReference
Rated RPM2500Reference
Oil capacity15.2 LReference
Transmission
24-speed synchronizedReference
16-speed mechanical shuttleReference
24-speed partial power shiftReference
TypesynchronizedReference
Gears24 forward and 8 reverseReference
Four gears (1-4) in three forward ranges (low, medium, high) plus reverse range. Additional creeper mode doubles available ranges.Reference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Four gears in four ranges with mechanical reverser.Reference
Typepartial power shiftReference
Four power-shift gears (1-4) in three forward ranges (low, medium, high) plus reverse range. Additional creeper mode doubles available ranges.Reference
Four power-shift gears in four ranges with mechanical reverser.Reference
Capacities
Fuel180.2 LReference
PTO & Hydraulics
2WD Hydraulic system43.1 LReference
4WD Hydraulic system44.3 LReference
2WD Capacity43.1 LReference
4WD Capacity44.3 LReference
Pressure171.6 barReference
Valves1 to 3Reference
Pump flow50.8 lpmReference
Rear Type2Reference
Controlposition and draft controlReference
Rear lift (at ends)6572 kgReference
Rear PTOindependentReference
Clutchmechanical dry discReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Clutchelectro-magneticReference
Front PTO Type1000Reference
Dimensions
Wheelbase275 cmReference
Weight11664 to 12656 poundsReference
Front tire9.00-16Reference
Rear tire16.8/14-38Reference
Ag front9.00-16 (2WD)Reference
Ag front10.00-16 (2WD)Reference
Ag front11.00-16 (2WD)Reference
Ag front13.6/12-28 (4WD)Reference
Ag front14.9/13-28 (4WD)Reference
Ag rear16.8/14-38Reference
Ag rear18.4/15-38Reference
Ag rear23.1/18-34Reference
Ag rear23.1/18/30 (2WD)Reference
Length415 cmReference
Height290 cmReference
Weight5290 kgReference
Weight5740 kgReference
Electrical
GroundnegativeReference
