Tractor · 1979Unverified

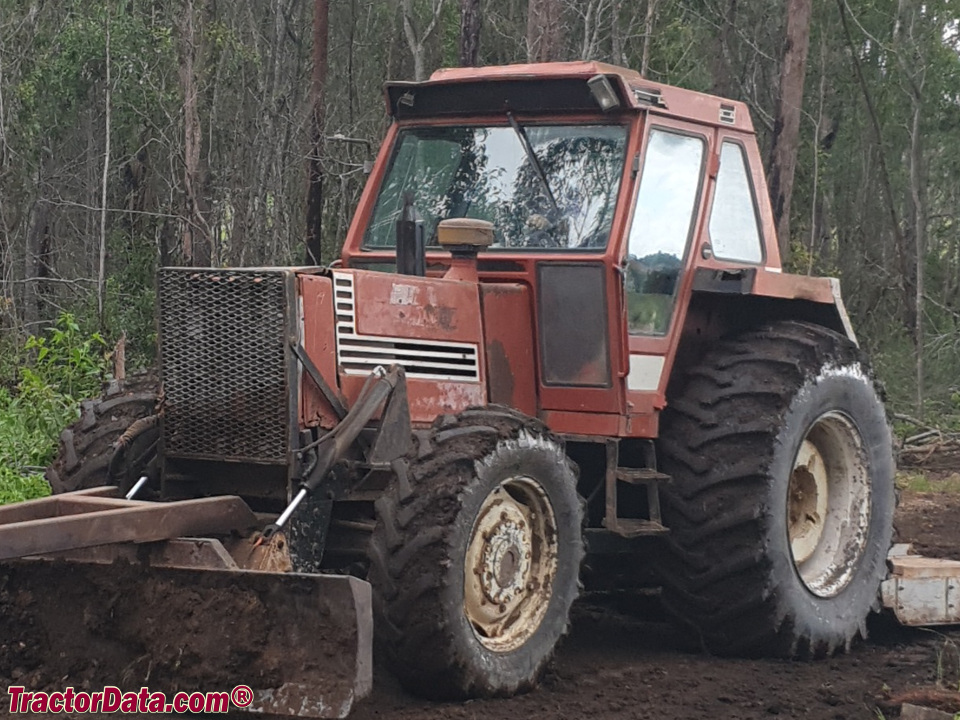

Fiat 1180
Fiat 1180 — 80 Series · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
9812 to 10694 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with optional air-conditioning. Four-post ROPS with canopy available.Reference
Variants
11802WDReference
1180 DT4WDReference
1180 H/DTHheavy-dutyReference
Engine
Fiat 5.5L 6-cyl dieselReference
Fuel tank180.2 LReference
Engine85.8 kWReference
Fiat 8065-04Reference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement5.5 LReference
Bore/Stroke103 x 110 mmReference
Power85.8 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
ROPS Coolant capacity17.0 LReference
Cab Coolant capacity19.0 LReference
Transmission
12-speedReference
24-speed creeperReference
12-speed mechanical shuttleReference
Gears12 forward and 4 reverseReference
Clutch355.6 cerametallic dry discReference
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range.Reference
TypecreeperReference
Gears24 forward and 8 reverseReference
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range with additional creeper range.Reference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges (low, medium, and high) with mechanical shuttle.Reference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
Typeopen centerReference
Valves1 to 3Reference
Pump flow50.3 lpmReference
Rear TypeIIReference
Controllower-link draft sensingReference
Rear lift4200 kgReference
Rear PTOindependentReference
Clutchdry discReference
Clutchhydraulic wet disc (H)Reference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540@2260Reference
Engine RPM1000@2460Reference
Dimensions
2WD Wheelbase275 cmReference
4WD Wheelbase267 cmReference
Weight9812 to 10694 poundsReference
Front tire7.50-20Reference
2WD Rear tire16.9/14-38Reference
2WD Standard tires (ag)Front: 7.50-20. Rear: 16.9/14-38Reference
4WD Standard tires (ag)Front: 13.6/12-28. Rear: 16.9/14-38Reference
4WD Optional tires (ag)Front: 14.9/13-28. Rear: 18.4/15-38Reference
4WD Optional tires (ag)Front: 14.9/13-28. Rear: 23.1/18-34Reference
Ag front9.00-16Reference
Ag front10.00-16Reference
2WD Length409 cmReference
4WD Length418 cmReference
2WD Operating weight4450 kgReference
4WD Operating weight4850 kgReference
2WD Ground clearance66 cmReference
4WD Ground clearance46 cmReference
2WD Front tread160 to 210 cmReference
4WD Front tread180 to 223 cmReference
Rear tread151 to 221 cmReference
Steering wheel215 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Fiat 1180 Height
2WD Hood179 cmReference
4WD Hood177 cmReference
ROPS276 cmReference
Exhaust279 cmReference
Speeds
With 16.9/14-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
