Tractor · 1979Unverified

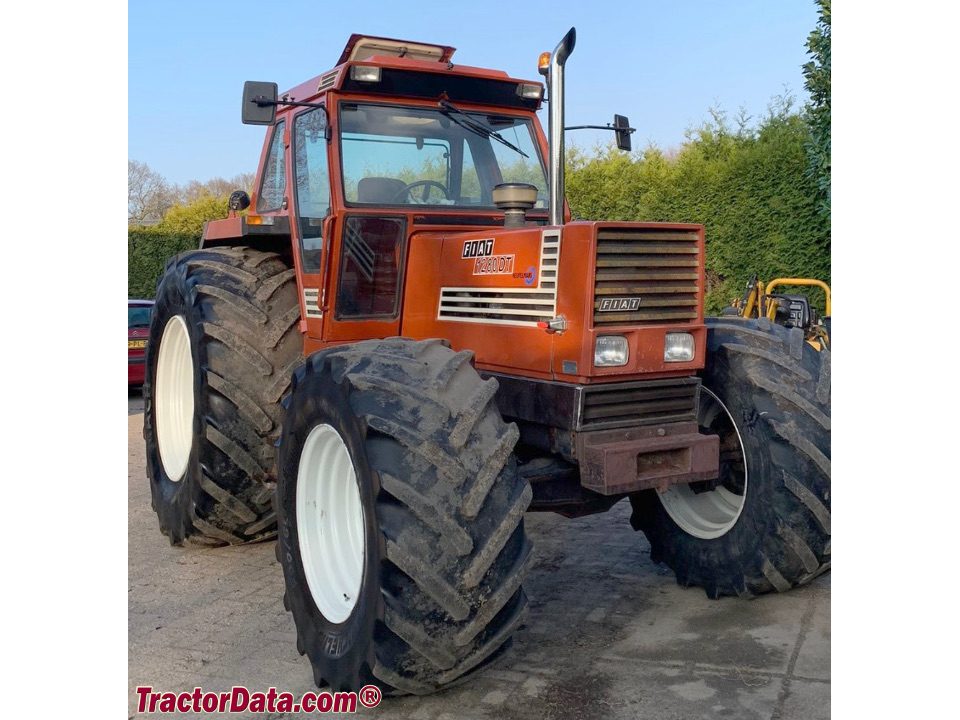

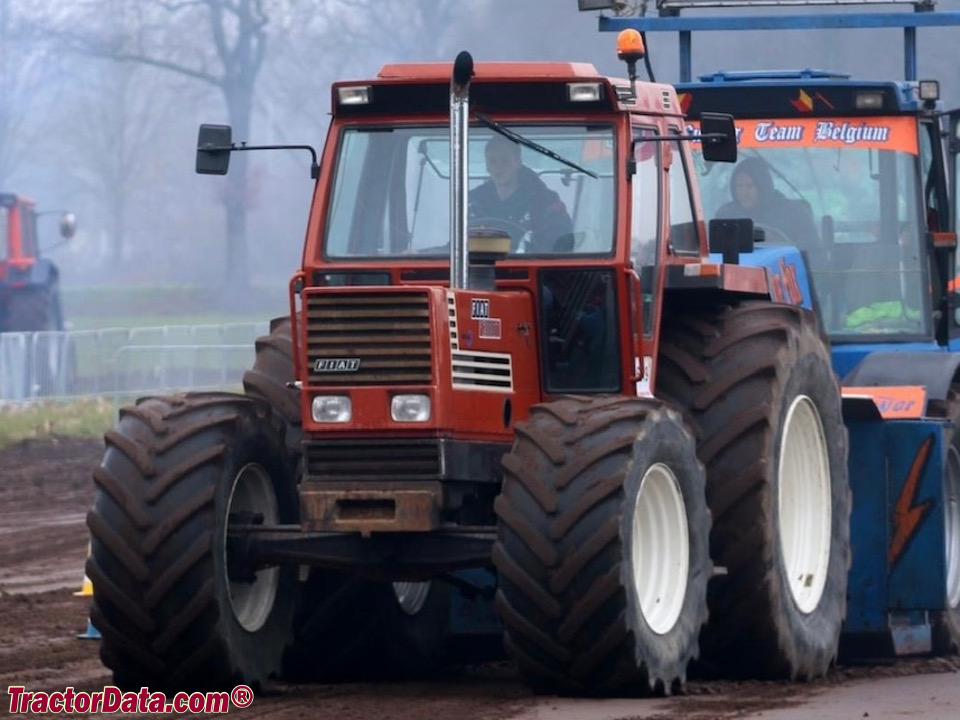

Fiat 1280
Fiat 1280 — 80 Series · 109 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
109 hp
Weight
12017 to 13075 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with optional air-conditioning. Four-post ROPS with canopy available.Reference
Variants
12802WDReference
1280 DT4WDReference
Engine
Fiat 5.5L 6-cyl dieselReference
Fuel tank180.2 LReference
Engine91.7 kWReference
Fiat 8065-24Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement5.5 LReference
Bore/Stroke103 x 110 mmReference
Power91.7 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
ROPS Coolant capacity17.0 LReference
Cab Coolant capacity19.0 LReference
Transmission
12-speedReference
24-speed creeperReference
12-speed mechanical shuttleReference
Gears12 forward and 4 reverseReference
Clutch355.6 cerametallic dry discReference
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range.Reference
TypecreeperReference
Gears24 forward and 8 reverseReference
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range with additional creeper range.Reference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges (low, medium, and high) with mechanical shuttle.Reference
PTO & Hydraulics
PTO (claimed)81.3 kWReference
Typeopen centerReference
Valves1 to 3Reference
Rear TypeIIReference
Controllower-link draft sensingReference
Rear lift4200 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540@2261Reference
Engine RPM1000@2458Reference
Dimensions
2WD Wheelbase275 cmReference
4WD Wheelbase267 cmReference
Weight12017 to 13075 poundsReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16Reference
Ag front14.9-28 (4WD)Reference
Ag rear18.4-38Reference
Length416 cmReference
Height280 cmReference
2WD Weight5450 kgReference
4WD Weight5930 kgReference
2WD Front tread160 to 210 cmReference
4WD Front tread179 to 219 cmReference
Rear tread151 to 221 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
