Tractor · 1984Unverified

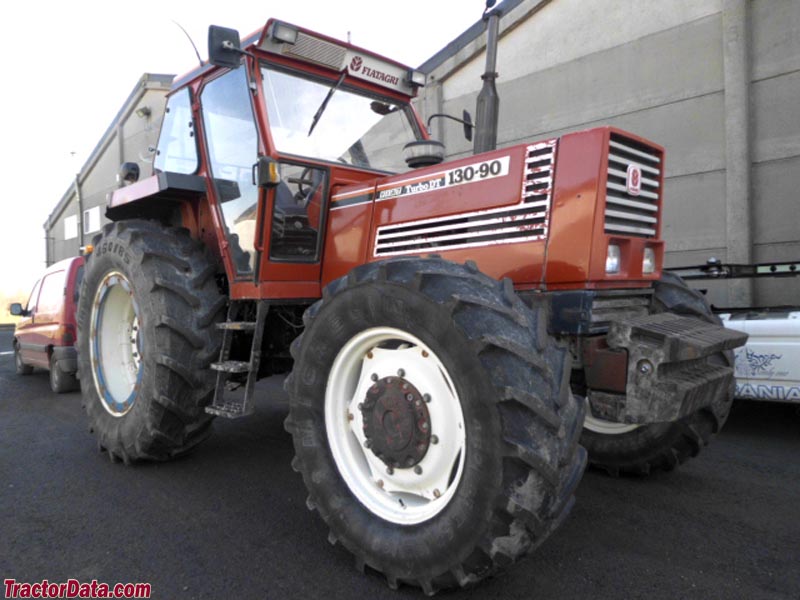

Fiat 130-90

Name: Fiat 130-90
Brand: Fiat

Fiat 130-90 — 90 Series · 130 hp. Reference specifications; pending source verification.

The Fiat 130-90 is a tractor with a rating of approximately 130 horsepower, placing it at the higher end of its class in terms of power. Produced from 1984 to 1990, this model is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, and features four-wheel drive with a hydrostatic transmission. Its listed operating weight is 5790 kg. It is suitable for operations on areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

130 hp

Weight

5790 kg

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

130 hp

Recorded weight

5790 kg

Transmissions

24-speed synchronized

Production years

1984-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockhydrostatic front and rearReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Cab standard with heat. Air-conditioning optional.Reference

Variants

130-902WDReference

130-90DT4WDReference

Engine

Fiat 5.9L 6-cyl dieselReference

Engine96.9 kWReference

Fiat 8065.25Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke104 x 115 mmReference

Power96.9 kWReference

Rated RPM2500Reference

Oil capacity15.2 LReference

Transmission

24-speed synchronizedReference

16-speed mechanical shuttleReference

24-speed partial power shiftReference

TypesynchronizedReference

Gears24 forward and 8 reverseReference

Clutchhydraulic 356mm cerametallic dry discReference

Four gears (1-4) in three forward ranges (low, medium, high) plus reverse range. Additional creeper mode doubles available ranges.Reference

Typemechanical shuttleReference

Gears16 forward and reverseReference

Four gears in four ranges with mechanical reverser.Reference

Typepartial power shiftReference

Four power-shift gears (1-4) in three forward ranges (low, medium, high) plus reverse range. Additional creeper mode doubles available ranges.Reference

Four power-shift gears in four ranges with mechanical reverser.Reference

Capacities

Fuel180.2 LReference

PTO & Hydraulics

Hydraulic system44.7 LReference

Hydraulic system46.2 LReference

Capacity44.7 LReference

Capacity46.2 LReference

Pressure171.6 barReference

Valves2 to 3Reference

Pump flow50.8 lpmReference

Rear Type2Reference

Controlposition and draft controlReference

Rear lift (at ends)6649 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000Reference

Front PTOindependentReference

Clutchelectro-magneticReference

Front PTO Type1000Reference

Dimensions

Wheelbase267 cmReference

Weight5790 kgReference

Front tire9.00-16Reference

Rear tire18.4/15-38Reference

Ag front9.00-16 (2WD)Reference

Ag front10.00-16 (2WD)Reference

Ag front11.00-16 (2WD)Reference

Ag front14.9/13-28 (4WD)Reference

Ag rear18.4/15-38Reference

Ag rear23.1/18-34Reference

Length418 cmReference

Height289 cmReference

Electrical

GroundnegativeReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
