Tractor · 1973Unverified

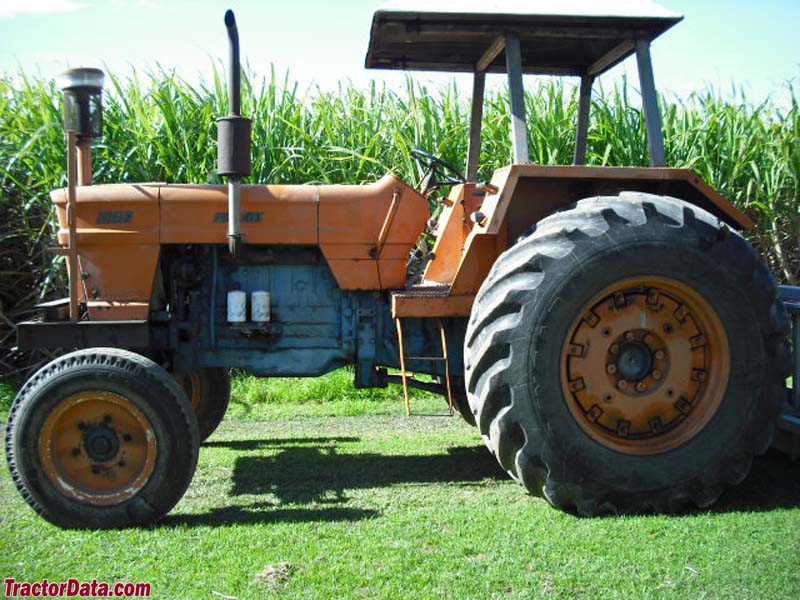

Fiat 1300
Fiat 1300 · 115 hp. Reference specifications; pending source verification.
The Fiat 1300 is a tractor with a rated output of 115 hp, positioning it centrally within its class in terms of power. It was manufactured from 1973 to 1976. The tractor features a 6-cylinder diesel liquid-cooled engine, which powers the mechanical front-wheel drive via a 12-speed gearbox. The listed weight of the Fiat 1300 is 5300 kg, and it is designed for use on plots of around 200-800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
5300 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
115 hp
Recorded weight
5300 kg
Transmissions
12-speed
Production years
1973-1976
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (1300DT)Reference
SteeringpowerReference
Wet disc brakesReference
Engine
Fiat 7.4L 6-cyl dieselReference
Engine96.9 kWReference
Fiat OM CP3/100Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke110 x 130 mmReference
Power96.9 kWReference
Rated RPM2100Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)85.8 kWReference
Pump flow48.8 lpmReference
Rear TypeIII/IIReference
Rear lift3350 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase256 cmReference
Weight5300 kgReference
Front tire12.4-28Reference
Rear tire18.4-38Reference
Ag front12.4-28Reference
Ag rear18.4-38Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
