Tractor · 1976Unverified

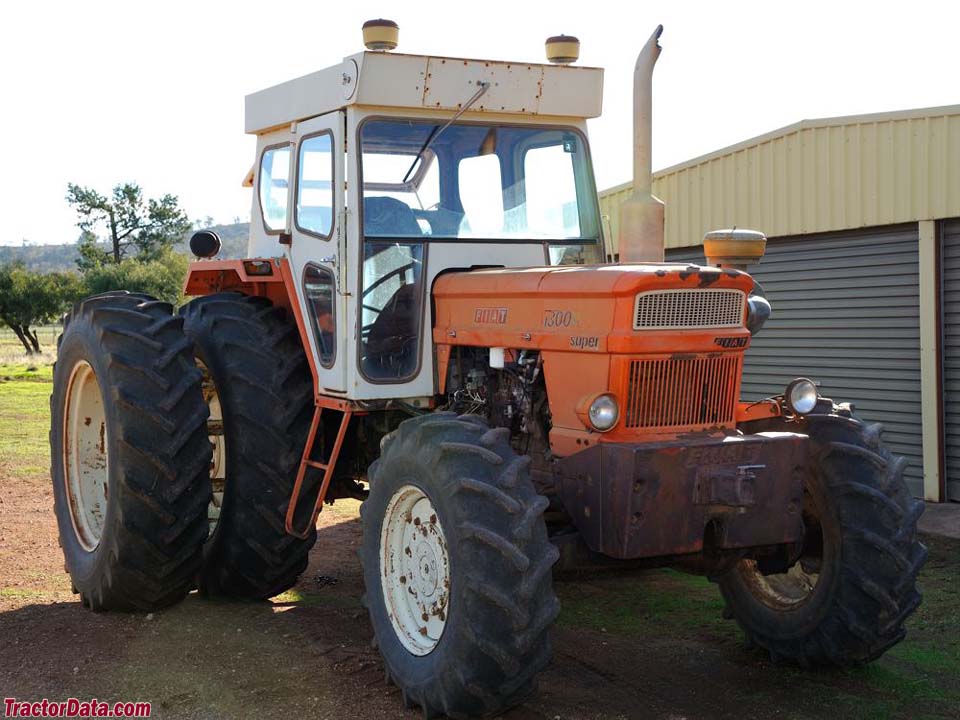

Fiat 1300 Super
Fiat 1300 Super — Row-Crop tractor · 150 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
150 hp
Weight
5200 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Open operator station. Four-post ROPS and cab available.Reference
Engine
Fiat 7.4L 6-cyl dieselReference
Fuel tank199.8 LReference
Engine111.9 kWReference
Fiat OM CP3/100Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke110 x 130 mmReference
Power111.9 kWReference
Air cleaneroil bathReference
Rated RPM2400Reference
Starter volts12Reference
Transmission
12-speedReference
16-speed creeperReference
Gears12 forward and 4 reverseReference
Clutch355.6mm dry discReference
Four gears in three ranges, plus reverse range.Reference
TypecreeperReference
Gears16 forward and 4 reverseReference
Optional creeper adds an additional range to the transmission.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow48.8 lpmReference
Rear TypeIIReference
Controlposition and low-link draft controlReference
Rear lift3350 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase276 cmReference
Weight5200 kgReference
Front tire11.00-16Reference
2WD Rear tire18.4/15-38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4/15-38Reference
Length418 cmReference
Front tread160 to 219 cmReference
Rear tread169 to 230 cmReference
Steering wheel204 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Fiat 1300 Super Height
Hood182 cmReference
Exhaust280 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
