Tractor · 1979Unverified

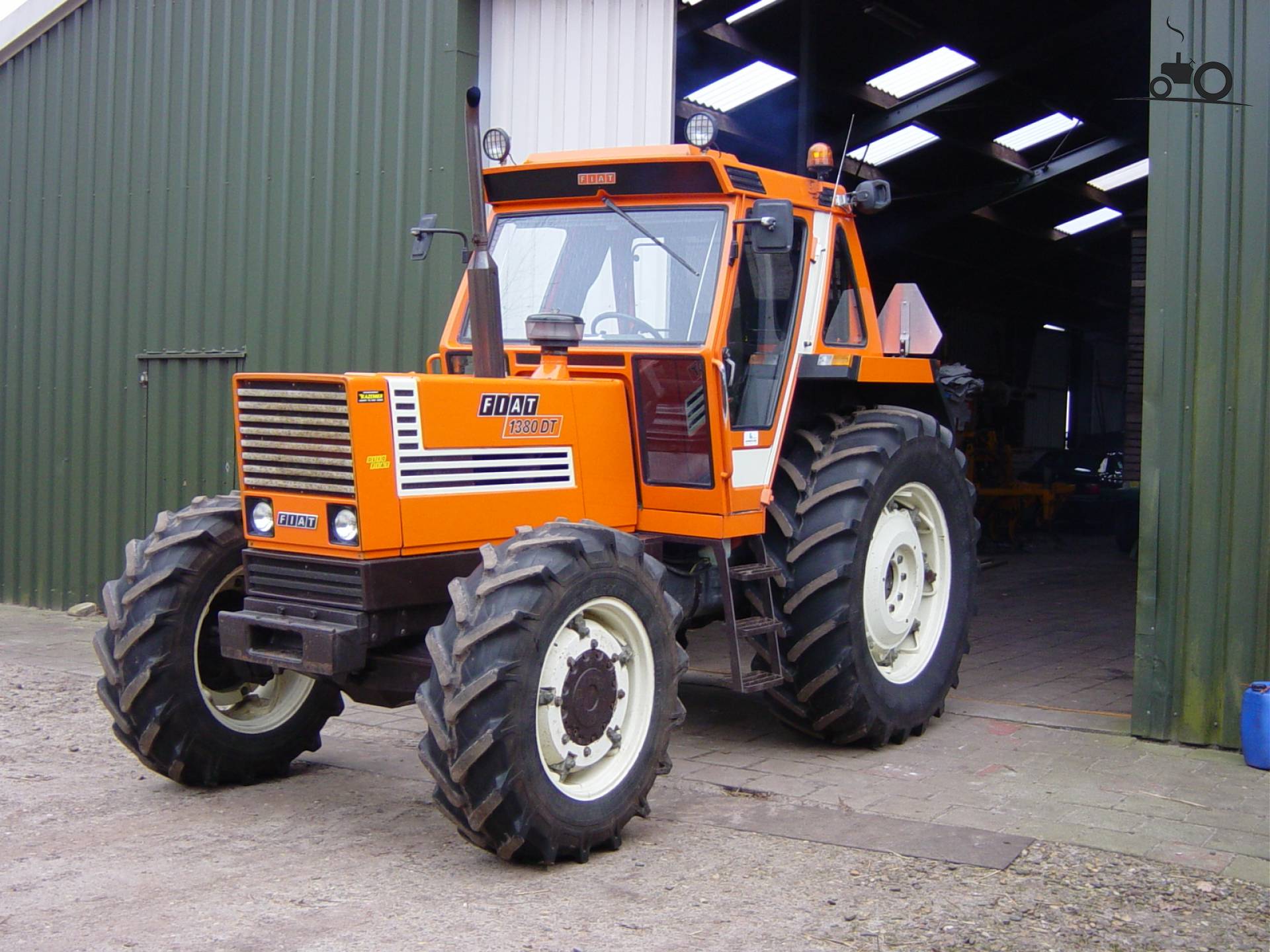

Fiat 1380
Fiat 1380 — 80 Series · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
12017 to 13340 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with optional air-conditioning. Four-post ROPS with canopy available.Reference
Variants
13802WDReference
1380 DT4WDReference
Engine
Fiat 5.5L 6-cyl dieselReference
Fuel tank180.2 LReference
Engine100.7 kWReference
Fiat 8065-24Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement5.5 LReference
Bore/Stroke103 x 110 mmReference
Power100.7 kWReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.1 LReference
ROPS Coolant capacity17.0 LReference
Cab Coolant capacity19.0 LReference
Transmission
12-speedReference
24-speed creeperReference
12-speed mechanical shuttleReference
Gears12 forward and 4 reverseReference
Clutch355.6 cerametallic dry discReference
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range.Reference
TypecreeperReference
Gears24 forward and 8 reverseReference
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range with additional creeper range.Reference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges (low, medium, and high) with mechanical shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Valves1 to 3Reference
Pump flow54.5 lpmReference
Rear TypeIIReference
Controllower-link draft sensingReference
Rear lift5397 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540@2095Reference
Engine RPM1000@2320Reference
Dimensions
2WD Wheelbase275 cmReference
4WD Wheelbase267 cmReference
Weight12017 to 13340 poundsReference
Front tire9.00-16Reference
2WD Rear tire18.4/15-38Reference
2WD Standard tires (ag)Front: 9.00-16. Rear: 18.4/15-38Reference
4WD Standard tires (ag)Front: 14.9/13-28. Rear: 18.4/15-38Reference
4WD Optional tires (ag)Front: 14.9/13-28. Rear: 23.1/18-34Reference
4WD Optional tires (ag)Front: 16.9/14-28. Rear: 20.8-38Reference
2WD Length432 cmReference
4WD Length418 cmReference
2WD Operating weight5450 kgReference
4WD Operating weight6051 kgReference
2WD Front tread160 to 210 cmReference
4WD Front tread179 to 219 cmReference
Rear tread151 to 221 cmReference
2WD Steering wheel217 cmReference
4WD Steering wheel218 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Fiat 1380 Height
2WD Hood179 cmReference
4WD Hood179 cmReference
ROPS275 cmReference
2WD Exhaust277 cmReference
4WD Exhaust281 cmReference
Speeds
With 18.4/15-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
