Tractor · 1979Unverified

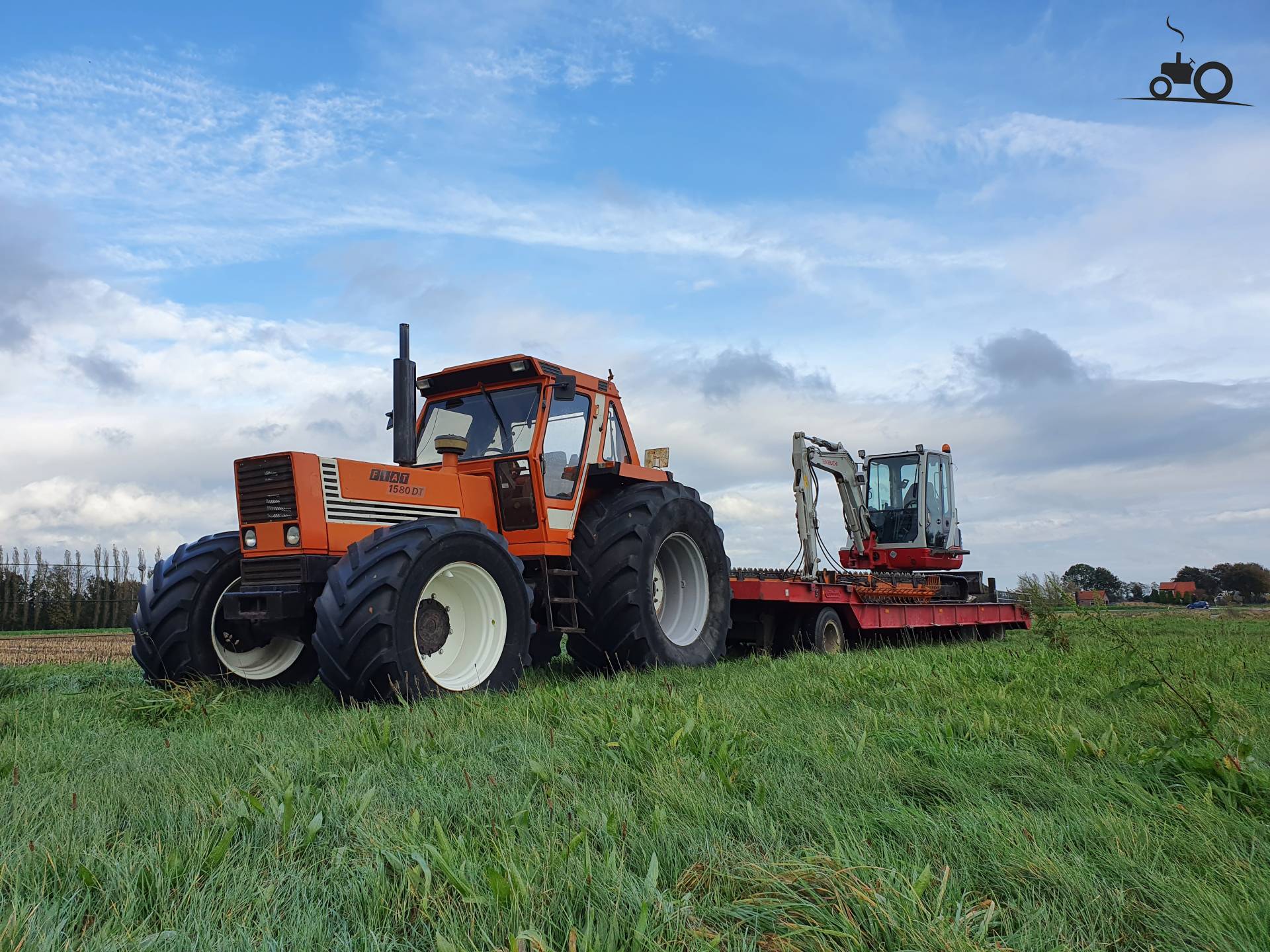

Fiat 1580
Fiat 1580 — 80 Series · 160 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
160 hp
Weight
13230 to 14222 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with optional air-conditioning. Four-post ROPS with canopy available.Reference
Variants
15802WDReference
1580 DT4WDReference
1580similar Hesston modelReference
Engine
Fiat 8.1L 6-cyl dieselReference
Fuel tank280.1 LReference
Engine119.3 kWReference
Fiat 8365-05Reference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.1 LReference
Bore/Stroke115 x 130 mmReference
Power115.6 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity18.3 LReference
ROPS Coolant capacity27.0 LReference
Cab Coolant capacity28.5 LReference
FiatReference
turbocharged dieselReference
liquid-cooledReference
The 1580 Turbo became available in 1982.Reference
Bore/Stroke115 x 130 mmReference
Power119.3 kWReference
Rated RPM2200Reference
Torque567.9 NmReference
Torque RPM1400Reference
Transmission
12-speedReference
24-speed creeperReference
12-speed mechanical shuttleReference
Gears12 forward and 4 reverseReference
Clutch355.6 cerametallic dry discReference
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range.Reference
TypecreeperReference
Gears24 forward and 8 reverseReference
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range with additional creeper range.Reference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four gears (1-4) in three ranges (low, medium, and high) with mechanical shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Valves1 to 3Reference
Pump flow55.6 lpmReference
Rear TypeIIIReference
Controllower-link draft sensingReference
Rear lift5397 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540@1950Reference
Engine RPM1000@2075Reference
Dimensions
2WD Wheelbase296 cmReference
4WD Wheelbase288 cmReference
Weight13230 to 14222 poundsReference
Front tire11.00-16Reference
2WD Rear tire18.4/15-38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4/15-38Reference
4WD Standard tires (ag)Front: 14.9/13-28. Rear: 18.4/15-38Reference
4WD Optional tires (ag)Front: 14.9/13-28. Rear: 23.1/18-34Reference
4WD Optional tires (ag)Front: 16.9/14-28. Rear: 20.8-38Reference
2WD Length432 cmReference
4WD Length443 cmReference
2WD Operating weight6001 kgReference
4WD Operating weight6451 kgReference
2WD Front tread160 to 210 cmReference
4WD Front tread179 to 219 cmReference
Rear tread151 to 221 cmReference
Steering wheel218 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Fiat 1580 Height
2WD Hood183 cmReference
4WD Hood182 cmReference
ROPS278 cmReference
Exhaust298 cmReference
Speeds
With 18.4/15-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
