Tractor · 1984Unverified

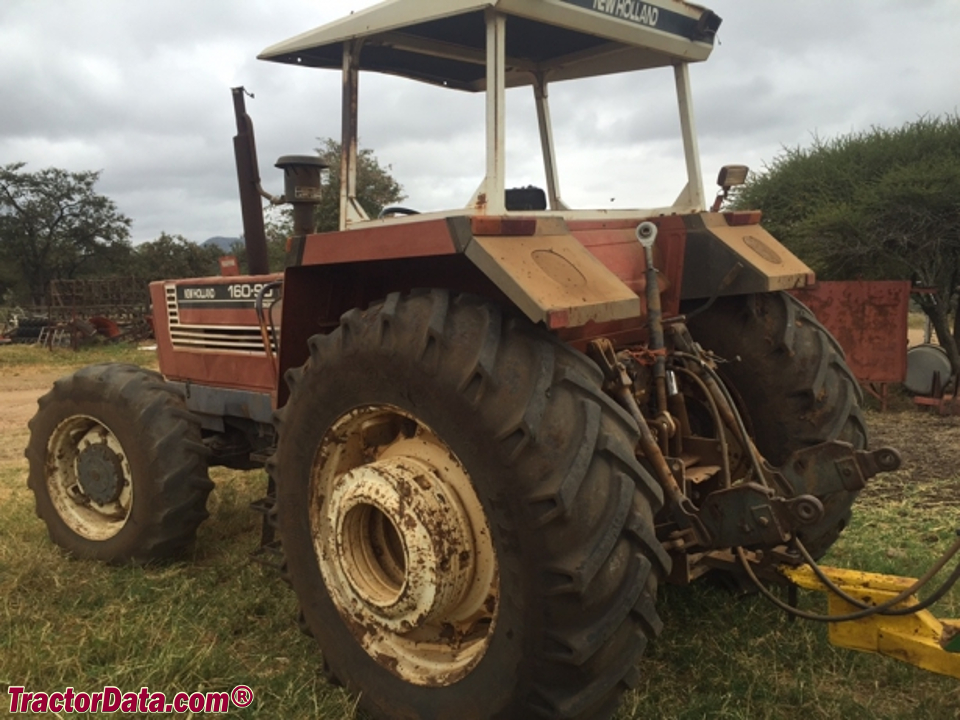

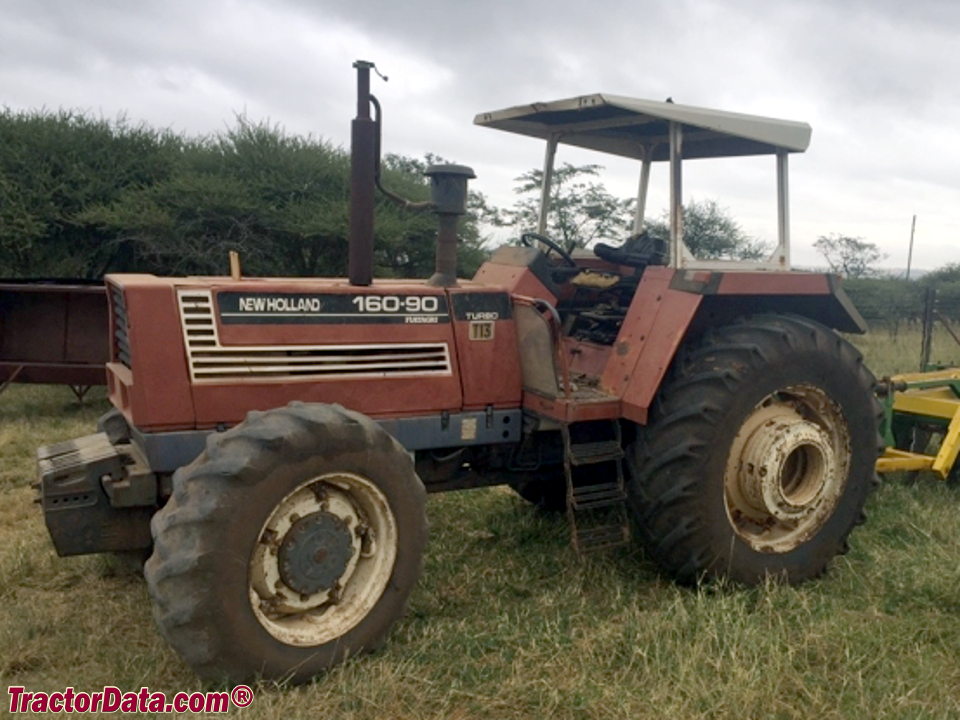

Fiat 160-90
Fiat 160-90 — 90 Series · 160 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
160 hp
Weight
17086 to 18662 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockhydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
160-90DTfour-wheel driveReference
160-90similar Hesston modelReference
Engine
Fiat-Iveco 8.1L 6-cyl dieselReference
Engine119.3 kWReference
Fiat-Iveco 8365.25Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.1 LReference
Bore/Stroke115 x 130 mmReference
Power119.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdry two-stageReference
Pre-heatingthermostartReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity18.3 LReference
Transmission
24-speed partial power shiftReference
16-speed mechanical shuttleReference
Typepartial power shiftReference
Gears24 forward and 8 reverseReference
Clutchhydraulic wet discReference
Four power-shift gears (1-4) in three forward ranges (low, medium, high) plus reverse range. Additional creeper mode doubles available ranges.Reference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Clutch305mm dry discReference
Oil capacity55.9 LReference
Capacities
Fuel280.1 LReference
PTO & Hydraulics
Hydraulic system56.0 LReference
Capacity56.0 LReference
Valves3Reference
Pump flow56.0 lpmReference
Rear TypeIIReference
Rear lift6650 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1950Reference
Engine RPM1000@2072Reference
Dimensions
2WD Wheelbase296 cmReference
4WD Wheelbase288 cmReference
Weight17086 to 18662 poundsReference
Front tire11.00-16Reference
2WD Rear tire23.1-34Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 23.1-34Reference
4WD Standard tires (ag)Front: 14.9-28. Rear: 23.1-34Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 30.5-32Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 20.8-38Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 24.5-32Reference
4WD Optional tires (ag)Front: 16.9-28. Rear: 30.5-32Reference
4WD Optional tires (ag)Front: 16.9-28. Rear: 20.8-38Reference
2WD Length433 cmReference
4WD Length441 cmReference
2WD Operating weight7750 kgReference
4WD Operating weight8465 kgReference
2WD Clearance (front axle)63 cmReference
4WD Clearance (front axle)46 cmReference
2WD Front tread160 to 210 cmReference
4WD Front tread180 to 221 cmReference
Rear tread151 to 221 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH152Reference
Fiat 160-90 Height
Hood180 cmReference
ROPS278 cmReference
Cab284 cmReference
Exhaust295 cmReference
Speeds
With 18.4/15-38 rear tires.Reference
With 23.1-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
