Tractor · 1956Unverified

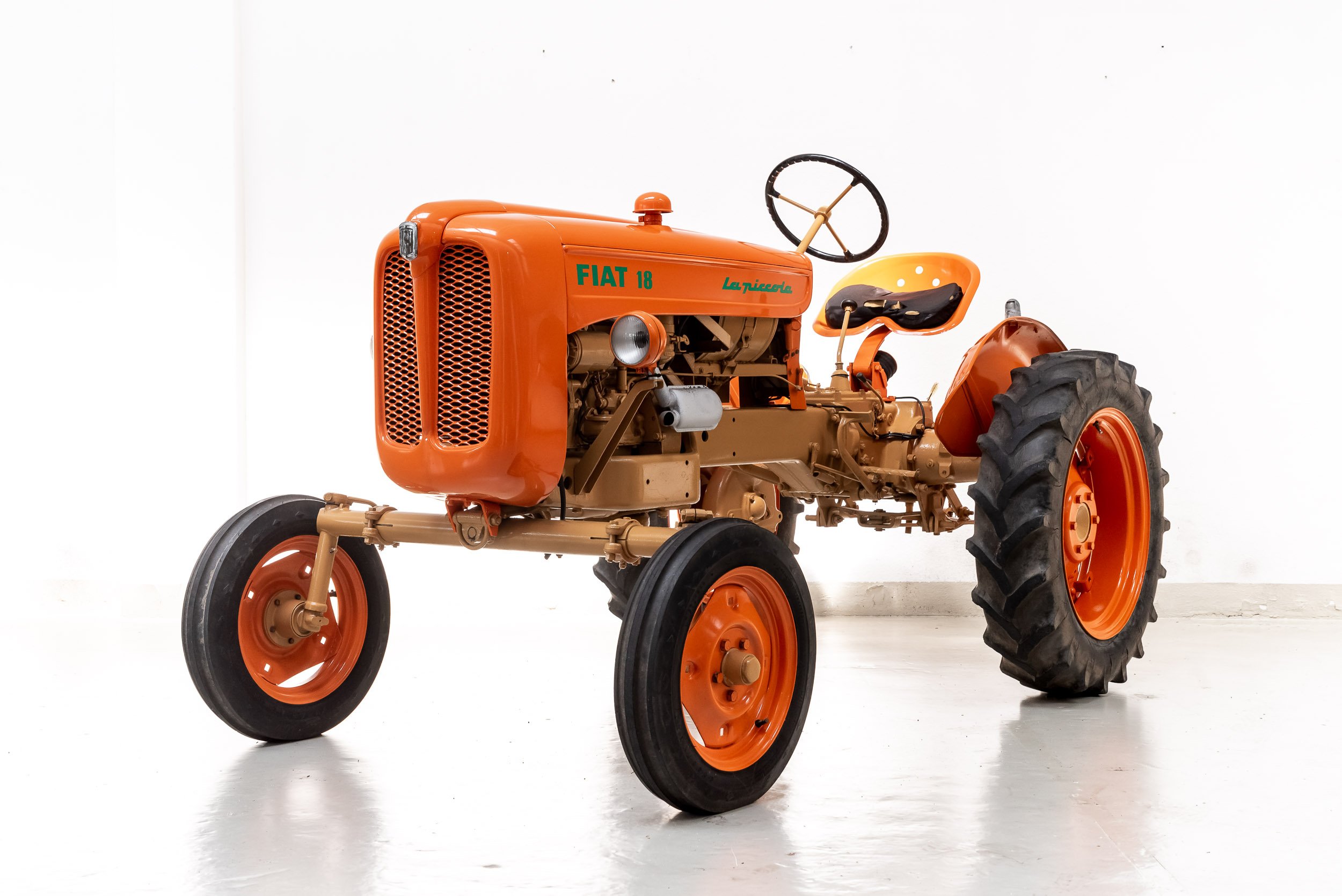

Fiat 18
Fiat 18 — Piccola Series · 18 hp. Reference specifications; pending source verification.
The Fiat 18 is a tractor model rated at 18 hp — making it one of the more compact options in its class. It was manufactured from 1956 to 1958. It is powered by a 2-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a 6-speed gearbox. Listed weight is 830 kg, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
830 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
18 hp
Recorded weight
830 kg
Transmissions
6-speed gear
Production years
1956-1958
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Built in Modena, ItalyReference
Two-wheel driveReference
Manual steeringReference
Mechanical band brakesReference
Open operator station.Reference
Engine
FIAT 1.1L 2-cyl dieselReference
Engine13.4 kWReference
FIATReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke85 x 100 mmReference
Power13.4 kWReference
Rated RPM2200Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase169 cmReference
Weight830 kgReference
Front tire4.00-15Reference
Rear tire8-24Reference
Standard tires (ag)Front: 4.00-15. Rear: 8-24Reference
Length259 cmReference
Width137 cmReference
Height153 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
