Tractor · 1984Unverified

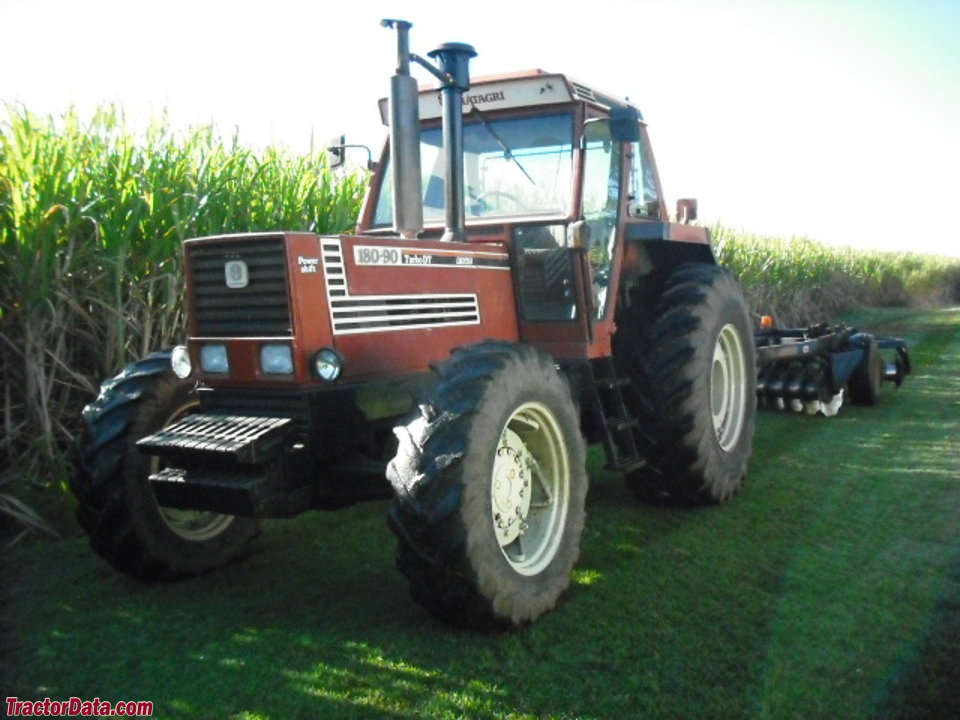

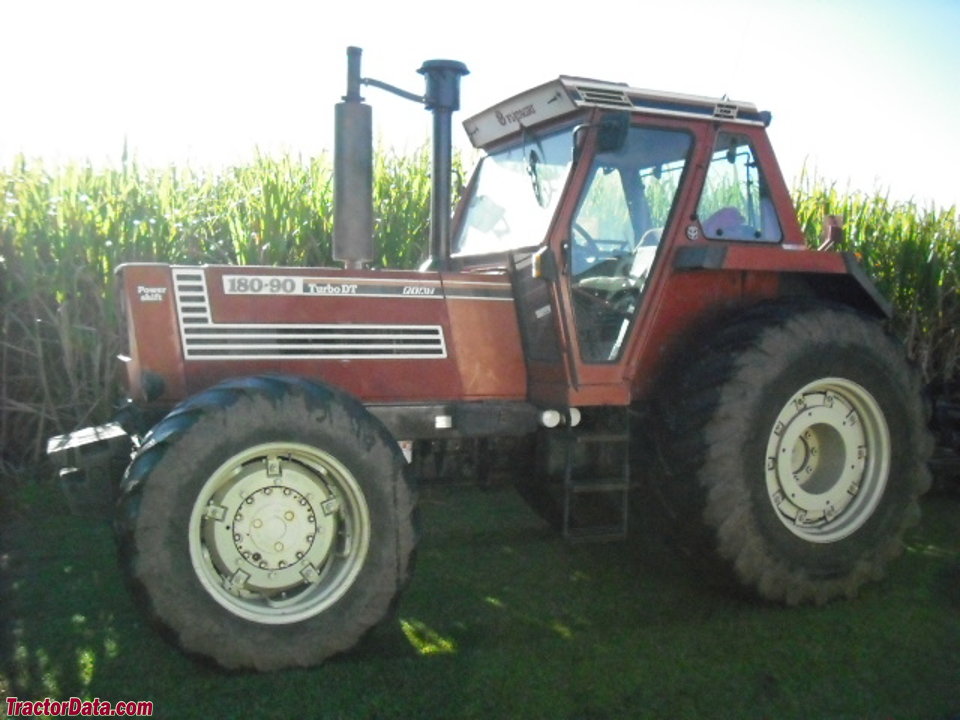

Fiat 180-90
Fiat 180-90 — 90 Series · 180 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
180 hp
Weight
13955 to 15190 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with available air-conditioning.Reference
Variants
180-90similar Hesston modelReference
Engine
Fiat-Iveco 8.1L 6-cyl dieselReference
Fuel tank280.1 LReference
Engine134.2 kWReference
Fiat-Iveco 8365.25Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.1 LReference
Bore/Stroke115 x 130 mmReference
Power134.2 kWReference
Fuel systemdirect injectionReference
Pre-heatingthermostartReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity18.3 LReference
Transmission
24-speed partial power shiftReference
16-speedReference
Typepartial power shiftReference
Gears24 forward and 8 reverseReference
Clutchwet discReference
Four power-shift gears (1-4) in three forward ranges (low, medium, high) plus reverse range. Additional creeper mode doubles available ranges.Reference
Gears16 forward and reverseReference
PTO & Hydraulics
Pump flow54.9 lpmReference
Rear TypeIIReference
Rear lift6645 kgReference
Rear PTOindependentReference
ClutchdryReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase296 cmReference
4WD Wheelbase286 cmReference
Weight13955 to 15190 poundsReference
Front tire11.00-16Reference
2WD Rear tire20.8-38Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 20.8-38Reference
4WD Standard tires (ag)Front: 16.9/14-28. Rear: 20.8/8-38Reference
2WD Length469 cmReference
4WD Length451 cmReference
2WD Operating weight6329 kgReference
4WD Operating weight6890 kgReference
Steering wheel218 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH176Reference
Fiat 180-90 Height
Hood181 cmReference
ROPS278 cmReference
Cab284 cmReference
Exhaust295 cmReference
Speeds
With 20.8-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
