Tractor · 1959Unverified

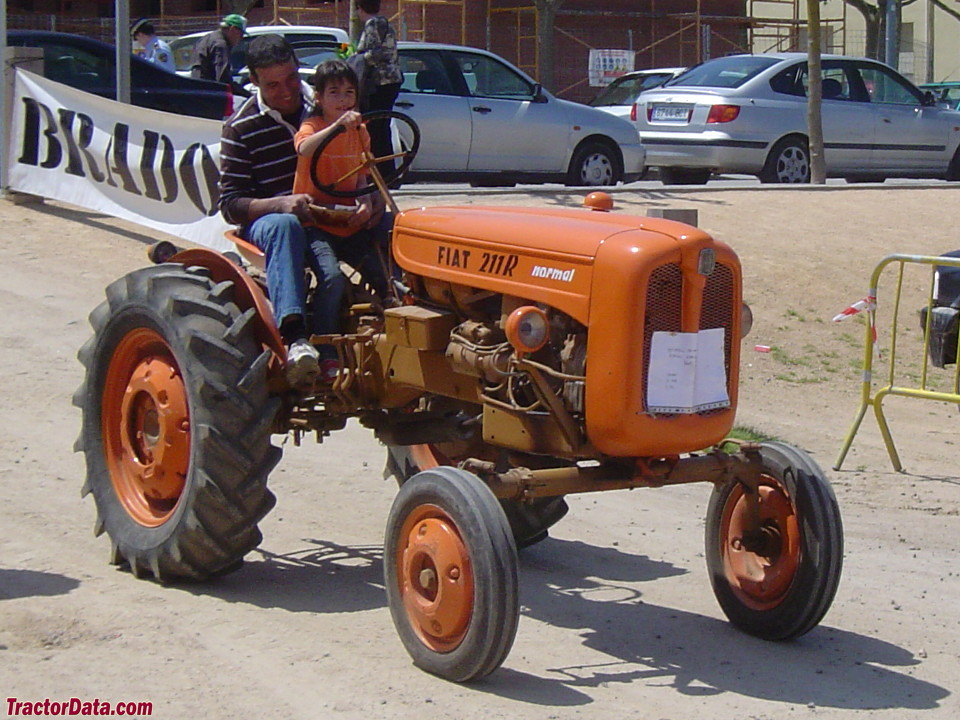

Fiat 211R
Fiat 211R — 200 Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
899 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Built in Modena, ItalyReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
2414WDReference
Normalutility chassisReference
Frutallow-profileReference
Vinedonarrow-profileReference
Engine
FIAT 1.1L 2-cyl dieselReference
Engine15.8 kWReference
Drawbar (claimed)13.7 kWReference
Belt (claimed)14.4 kWReference
FIATReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke85 x 100 mmReference
Power15.8 kWReference
Compression21.5:1Reference
Rated RPM2300Reference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540Reference
Engine RPM540@2120Reference
Dimensions
Wheelbase169 cmReference
Weight899 kgReference
Front tire4.00-15Reference
Rear tire9-24Reference
Ag front4.00-15Reference
Ag rear9-24Reference
Length260 cmReference
Width120 cmReference
Width191 cmReference
Height (steering wheel)155 cmReference
Height (hood)130 cmReference
Ground clearance50 cmReference
Front tread104 to 165 cmReference
Rear tread100 to 169 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
