Tractor · 1965Unverified

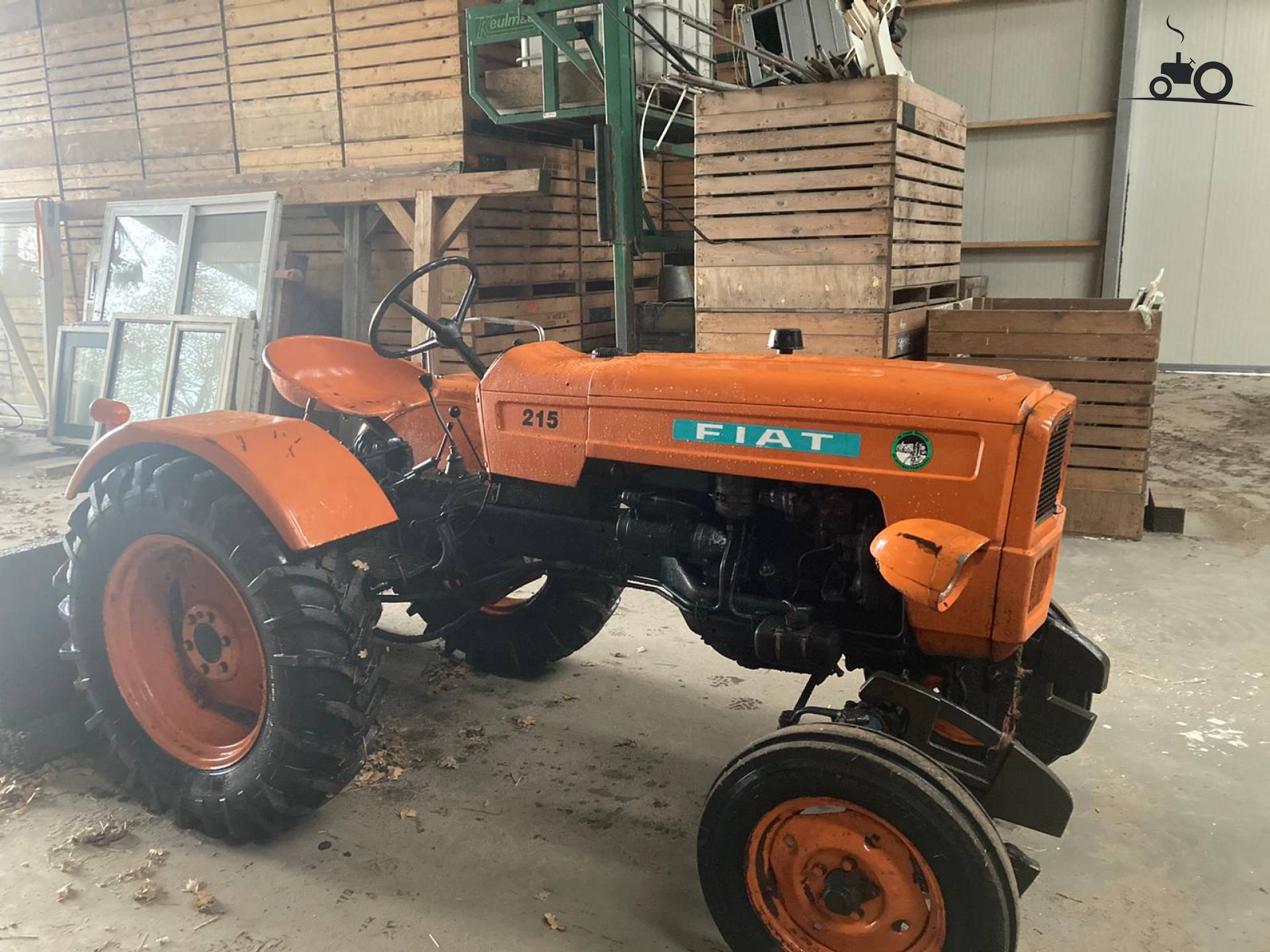

Fiat 215
Fiat 215 — Utility tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
2138 to 2425 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Built in Modena, ItalyReference
Two- or four-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Fiat 1.1L 2-cyl dieselReference
Fuel tank23.8 LReference
Engine16.4 kWReference
Fiat 614Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke85 x 100 mmReference
Power16.4 kWReference
Rated RPM2300Reference
Torque66.4 NmReference
Torque RPM1520Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow7.9 lpmReference
Rear TypeIReference
Rear lift (at ends)549 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2120Reference
Dimensions
Wheelbase169 cmReference
Weight2138 to 2425 poundsReference
Front tire5.00-15Reference
Rear tire9.5-24Reference
Ag front5.00-15Reference
Ag front7.50-16 (4WD)Reference
Ag rear9.5-24Reference
Length260 cmReference
Height131 cmReference
2WD Weight969 kgReference
4WD Weight1099 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
