Tractor · 1959Unverified

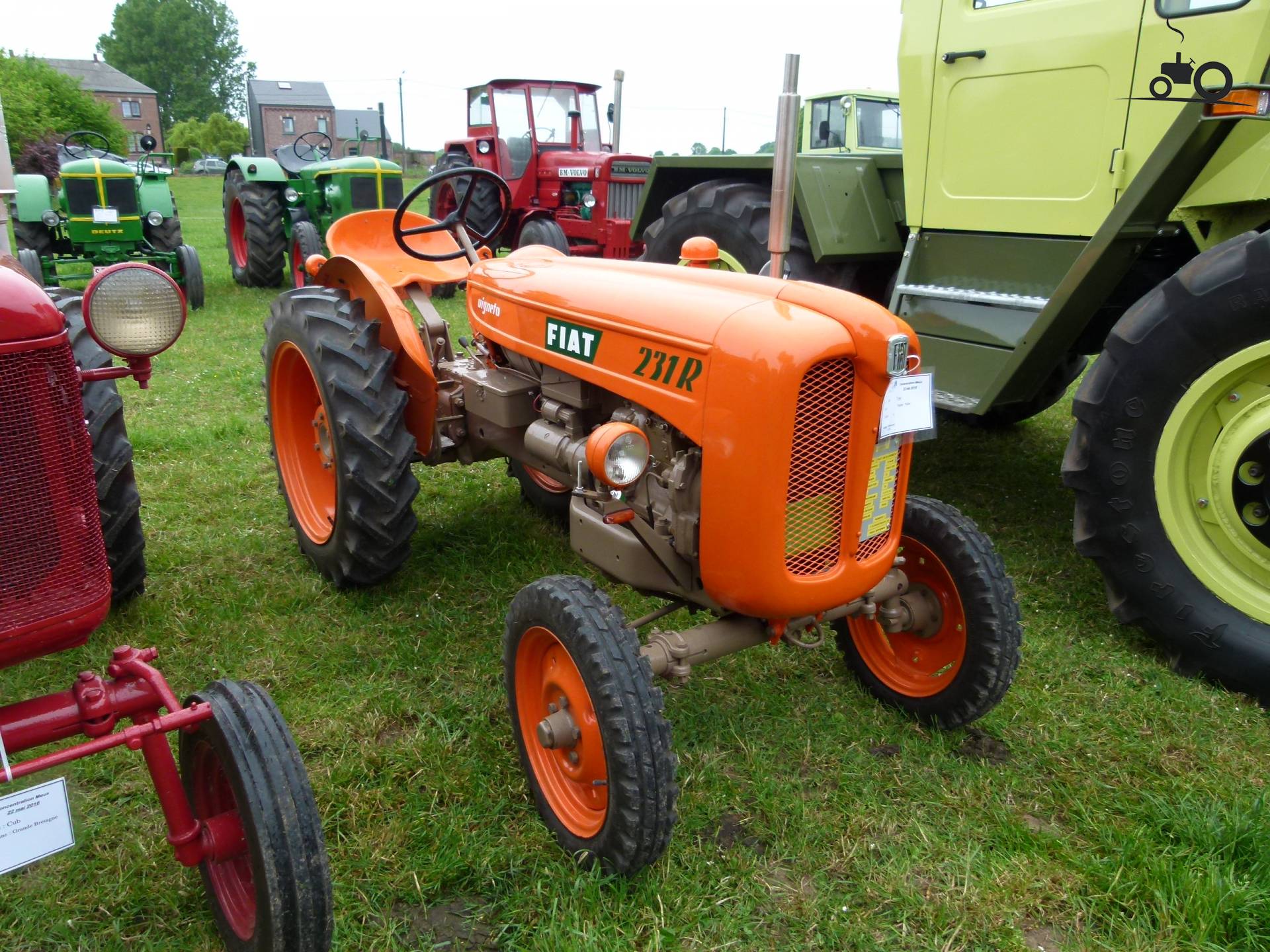

Fiat 231R
Fiat 231R — 200 Series · 21 hp. Reference specifications; pending source verification.
The Fiat 231R is a compact tractor with a rated output of 21 hp, qualifying it as one of the smaller models in its class. Production of the 231R spanned the period from 1959 to 1964. The tractor is equipped with a 2-cylinder diesel liquid-cooled engine, which transmits power through a 6-speed gearbox to its two-wheel drive system. Its listed weight is 979 kg, suitable for tasks involving approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
979 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
21 hp
Recorded weight
979 kg
Transmissions
6-speed
Production years
1959-1964
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two-wheel driveReference
Engine
FIAT 1.1L 2-cyl dieselReference
Engine15.8 kWReference
Drawbar (claimed)13.7 kWReference
Belt (claimed)14.4 kWReference
FIATReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke85 x 100 mmReference
Power15.8 kWReference
Compression21.5:1Reference
Rated RPM2300Reference
Starter volts12Reference
Transmission
6-speedReference
Transmissionsliding gearReference
Gears6 forward and 2 reverseReference
Dimensions
Weight979 kgReference
Front tire4.00-15Reference
Rear tire9-24Reference
Ag front4.00-15Reference
Ag rear9-24Reference
Length254 cmReference
Width100 cmReference
Width149 cmReference
Height113 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
