Tractor · 1968Unverified

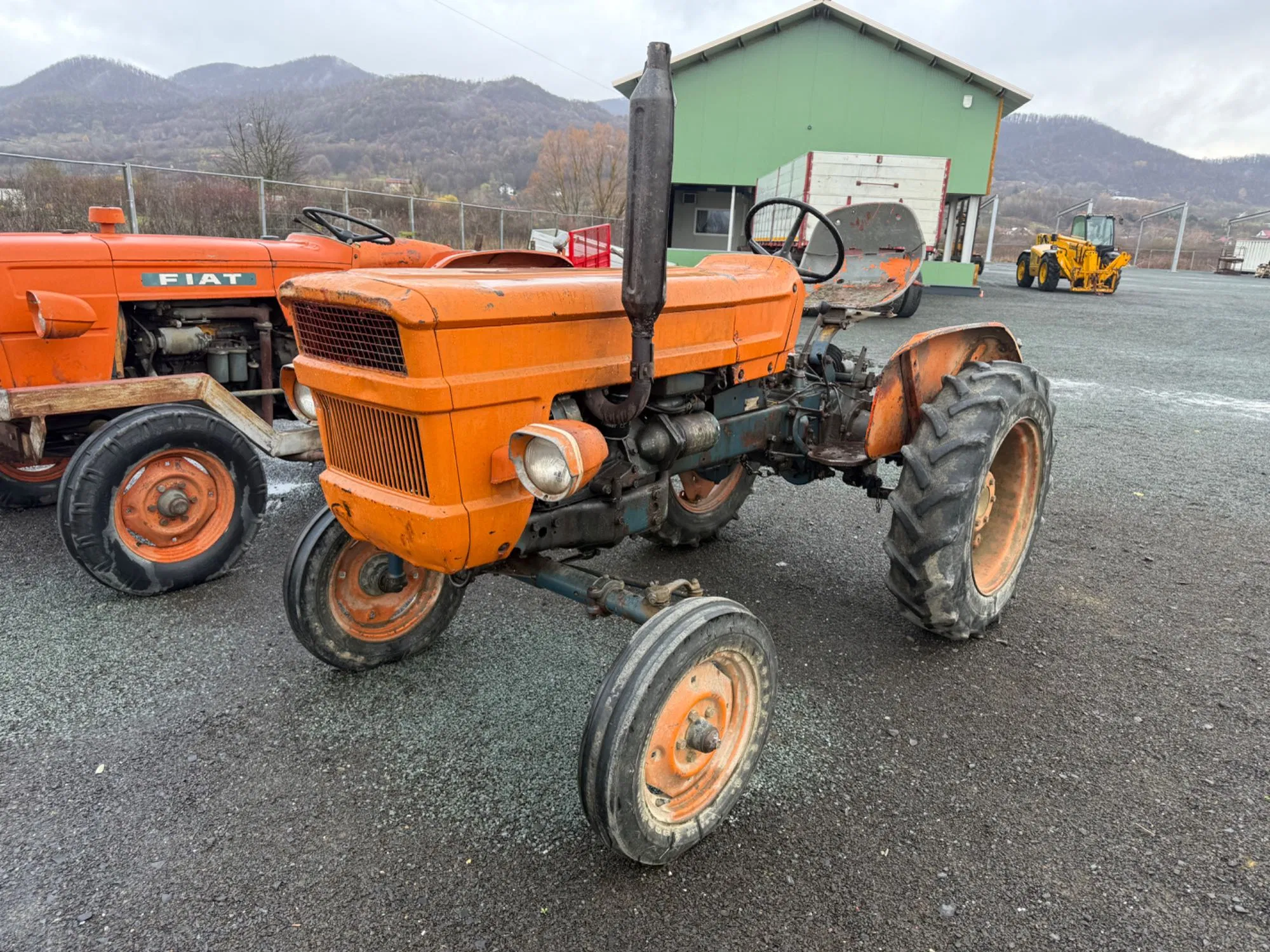

Fiat 250
Fiat 250 — Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2690 to 3075 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Built in Modena, ItalyReference
Two- or four-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Fiat 1.6L 2-cyl dieselReference
Engine18.6 kWReference
Fiat 852Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke95 x 110 mmReference
Power18.6 kWReference
Rated RPM2250Reference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears (1-3), plus reverse (R), in two ranges (low/high).Reference
PTO & Hydraulics
Pump flow9.5 lpmReference
Rear TypeIReference
Rear lift (at ends)769 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase169 cmReference
Weight2690 to 3075 poundsReference
Front tire5.00-15Reference
Rear tire10-24Reference
Ag front5.00-15Reference
Ag front7.50-16 (4WD)Reference
Ag rear10-24Reference
Length294 cmReference
Width149 cmReference
Height (hood)134 cmReference
2WD Weight1220 kgReference
4WD Weight1394 kgReference
250 Serial Numbers
Location:Left side of tractor frame.Reference
Speeds
With 10-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
