Tractor · 1959Unverified

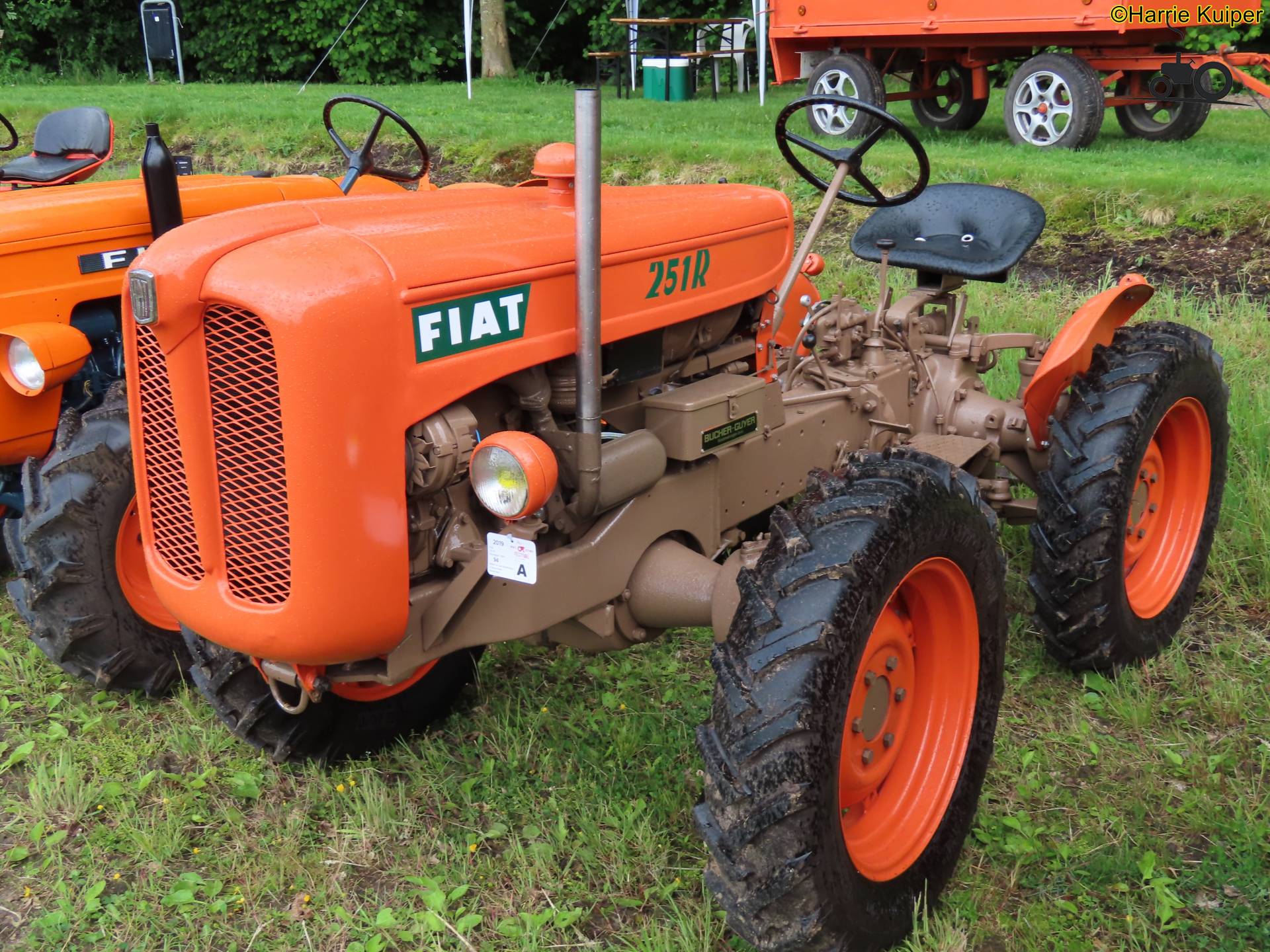

Fiat 251R
Fiat 251R — 200 Series · 21 hp. Reference specifications; pending source verification.
The Fiat 251R is a tractor model rated at 21 hp — making it one of the more compact options in its class. It was manufactured from 1959 to 1964. Under the hood is a 2-cylinder diesel engine, driving through four-wheel drive with a 6-speed gearbox. Listed weight is 1152 kg, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1152 kg
Catalogue coverage
Variants represented
2
Richest spec table
28 rows
Recorded power
21 hp
Recorded weight
1152 kg
Transmissions
6-speed
Production years
1959-1964
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Drive4x4 4WDReference
Engine
FIAT 1.1L 2-cyl dieselReference
Engine15.8 kWReference
Drawbar (claimed)13.7 kWReference
Belt (claimed)14.4 kWReference
FIATReference
dieselReference
2-cylinderReference
Displacement1.1 LReference
Bore/Stroke85 x 100 mmReference
Power15.8 kWReference
Compression21.5:1Reference
Rated RPM2300Reference
Starter volts12Reference
Transmission
6-speedReference
Transmissionsliding gearReference
Gears6 forward and 2 reverseReference
Dimensions
Weight1152 kgReference
Front tire7.50-20Reference
Rear tire7.50-20Reference
Ag front7.50-20Reference
Ag rear7.50-20Reference
Length289 cmReference
Width130 cmReference
Width180 cmReference
Height132 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
