Tractor · 1951Unverified

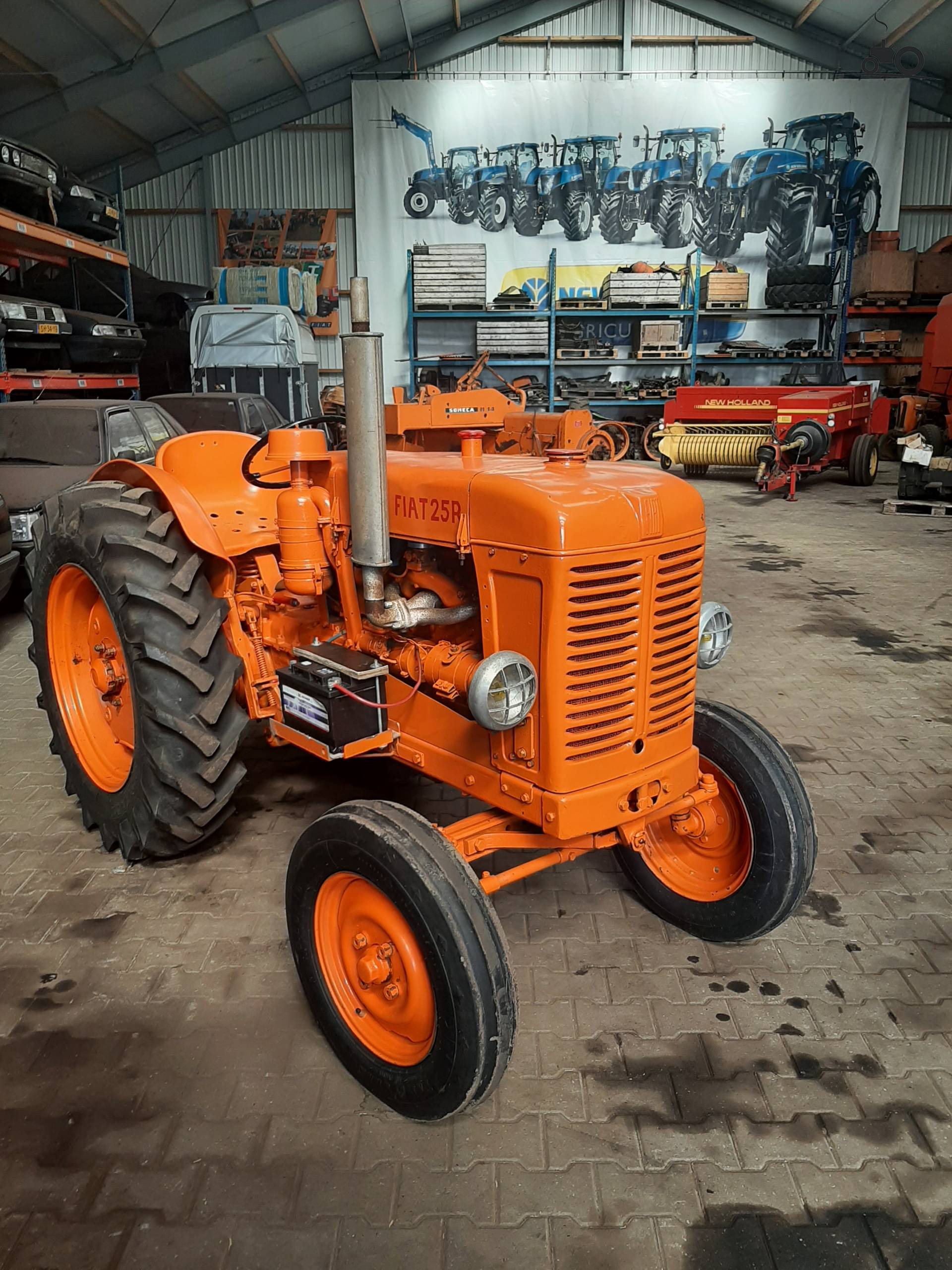

Fiat 25R
Fiat 25R — Model year 1951-19531953-1959 · 23 hp. Reference specifications; pending source verification.
The Fiat 25R is a tractor with a rated power output of 23 hp, categorising it at the lighter end of its class. It was manufactured from 1951 to 1959. The 25R features a 4-cylinder liquid-cooled engine, paired with two-wheel drive and a 4-speed gearbox. Its listed operating weight is 1379 kg, and it is capable of operating on areas up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1379 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
23 hp
Recorded weight
1379 kg
Transmissions
4-speed gear
Production years
1951-1959
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Standard-tread tractorReference
Built in Modena, ItalyReference
Two-wheel driveReference
Manual steeringReference
Mechanical band brakesReference
Open operator station.Reference
Variants
25RstandardReference
25TtricycleReference
Engine
Fiat 2.3L 4-cyl distillateReference
Engine17.2 kWReference
FiatReference
distillateReference
4-cylinderReference
liquid-cooled inlineReference
Displacement2.3 LReference
Bore/Stroke85 x 100 mmReference
Power17.2 kWReference
Fuel systemcarburetorReference
Rated RPM1750Reference
Firing order1-3-4-2Reference
Starter typemanualReference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
Dimensions
Wheelbase151 cmReference
Weight1379 kgReference
Length243 cmReference
Width198 cmReference
Height142 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
