Tractor · 1959Unverified

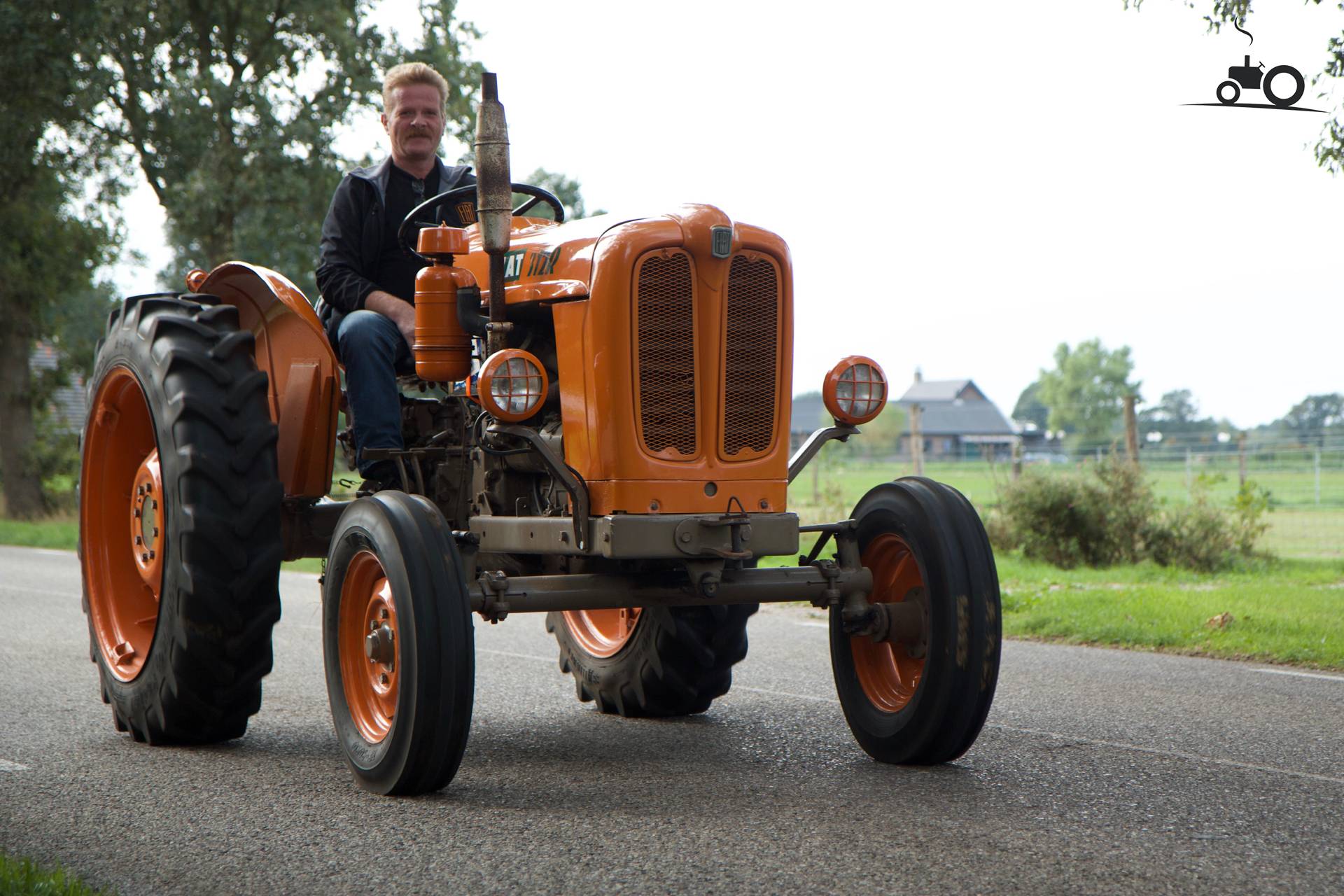

Fiat 312R
Fiat 312R — Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1420 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Built in Modena, ItalyReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical band brakesReference
Open operator station.Reference
Variants
311CcrawlerReference
Engine
Fiat 1.9L 4-cyl dieselReference
Fuel tank39.0 LReference
Engine22.4 kWReference
FiatReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement1.9 LReference
Bore/Stroke82 x 90 mmReference
Power22.4 kWReference
Compression22.5:1Reference
Rated RPM2200Reference
Torque102.4 NmReference
Torque RPM1600Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts24Reference
Oil capacity5.0 LReference
Coolant capacity10.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Oil capacity12.5 LReference
PTO & Hydraulics
Rear TypeIReference
Rear lift800 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2160Reference
Dimensions
Wheelbase177 cmReference
Weight1420 kgReference
Front tire5.50-16Reference
Rear tire11.2/10-28Reference
Standard tires (ag)Front: 5.50-16. Rear: 11.2/10-28Reference
Length288 cmReference
Height (steering wheel)147 cmReference
Height (hood)135 cmReference
Ground clearance39 cmReference
Front tread131 to 191 cmReference
Rear tread119 to 189 cmReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
