Tractor · 1968Unverified

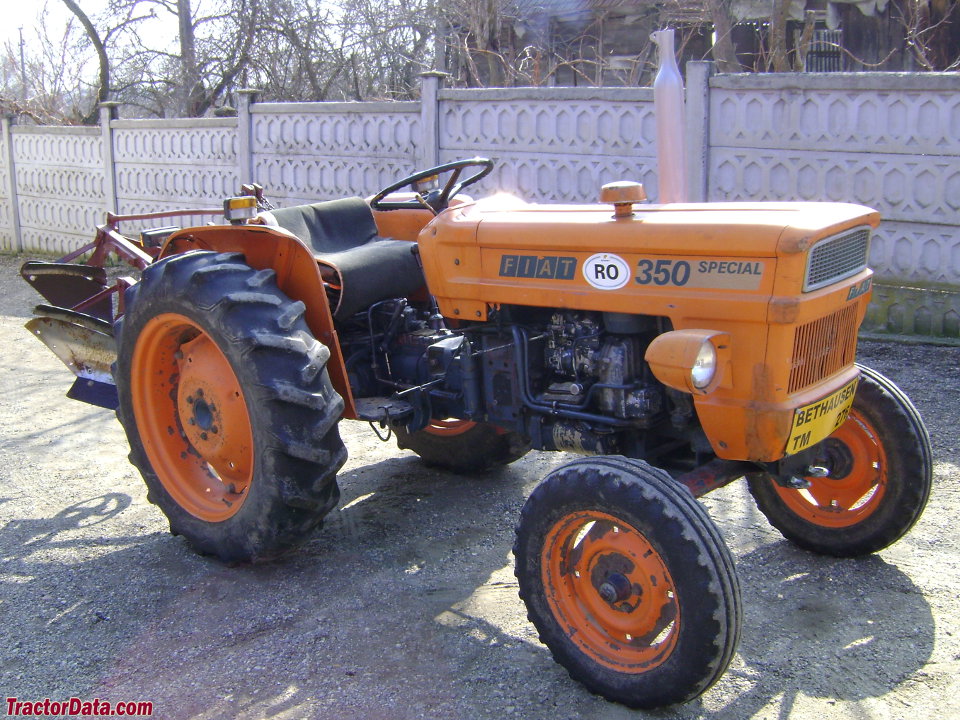

Fiat 350
Fiat 350 — Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
3053 to 3439 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Built in Modena, ItalyReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical band brakesReference
Open operator station.Reference
Variants
350DT4WDReference
Engine
Fiat 1.7L 2-cyl dieselReference
Fuel tank34.1 LReference
Engine26.1 kWReference
Fiat 8025Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke100 x 110 mmReference
Power26.1 kWReference
Fuel systemdirectReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch254mm dry discReference
PTO & Hydraulics
Typeopen centerReference
Pump flow14.4 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1119 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2120Reference
Engine RPM1105@2500Reference
Dimensions
Wheelbase177 cmReference
Weight3053 to 3439 poundsReference
Front tire5.00-16Reference
2WD Rear tire11.2/10-28Reference
2WD Standard tires (ag)Front: 5.00-16. Rear: 11.2/10-28Reference
4WD Standard tires (ag)Front: 7.50-18. Rear: 11.2/10-24Reference
2WD Length273 cmReference
4WD Length275 cmReference
2WD Weight1384 kgReference
4WD Weight1559 kgReference
2WD Clearance (front axle)46 cmReference
4WD Clearance (front axle)26 cmReference
2WD Front tread119 to 168 cmReference
4WD Front tread129/140 cmReference
Rear tread120 to 170 cmReference
2WD Steering wheel140 cmReference
4WD Steering wheel146 cmReference
Capacities
Diameter24 cmReference
Width14 cmReference
RPM1300Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH77Reference
Fiat 350 Height
2WD Hood125 cmReference
4WD Hood130 cmReference
Speeds
With 10-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
