Tractor · 1968Unverified

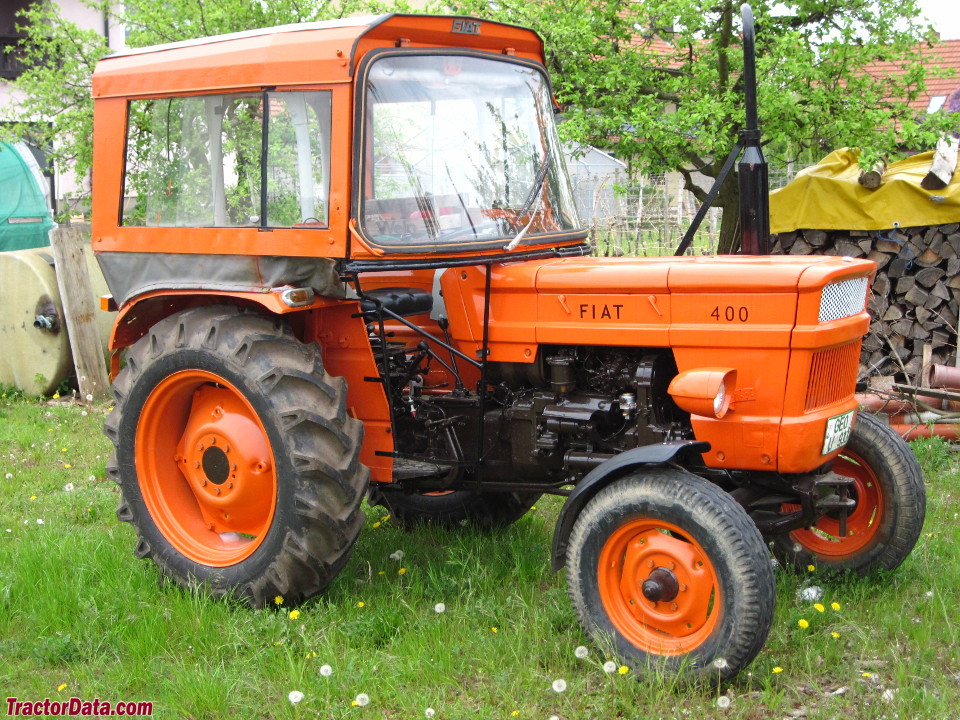

Fiat 400
Fiat 400 · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
3750 to 4729 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Two- or four-wheel driveReference
Open operator station.Reference
Engine
Fiat 2.2L 3-cyl dieselReference
Engine28.3 kWReference
Fiat 853Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke95 x 110 mmReference
Power28.3 kWReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
6-speed gearReference
9-speed creeperReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears (1-3), plus reverse (R), in two ranges (low/high).Reference
TypecreeperReference
Gears9 forward and 3 reverseReference
Optional creeper adds an additional low range to the standard transmission.Reference
PTO & Hydraulics
Pump flow22.0 lpmReference
Rear TypeIReference
Rear lift1400 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase192 cmReference
Weight3750 to 4729 poundsReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag front7.50-20 (4WD)Reference
Ag rear12.4-28Reference
Length316 cmReference
Width162 cmReference
Height (steering wheel)131 cmReference
2WD Weight1701 kgReference
4WD Weight2145 kgReference
Front tread128 to 187 cmReference
Rear tread130 to 189 cmReference
Speeds
With 11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
