Tractor · 1974Unverified

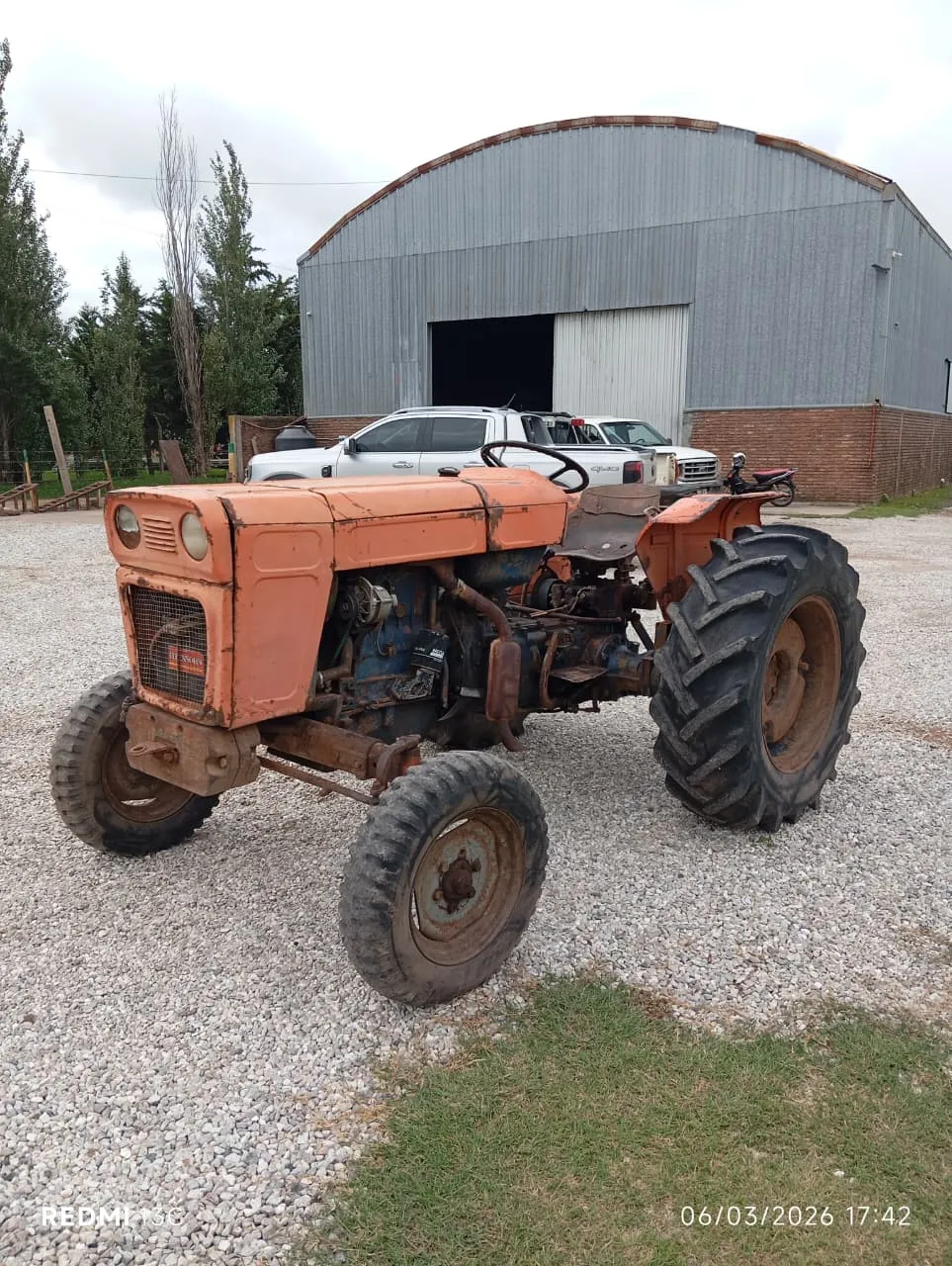

Fiat 400E
Fiat 400E — Utility tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
3671 to 4255 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Built in Sauce Viejo, ArgentinaReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical band brakesReference
Open operator station.Reference
Engine
Fiat 3.4L 3-cyl dieselReference
Fuel tank74.9 LReference
Engine33.6 kWReference
Fiat CN3/615Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke110 x 120 mmReference
Power33.6 kWReference
Compression17:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Row-crop Wheelbase224 cmReference
Standard Wheelbase183 cmReference
Weight3671 to 4255 poundsReference
Row-crop Length370 cmReference
Standard Length311 cmReference
Row-crop Height (steering wheel)184 cmReference
Standard Height (steering wheel)154 cmReference
Row-crop Weight1930 kgReference
Standard Weight1665 kgReference
Front tread130 to 201 cmReference
Rear tread124 to 184 cmReference
Speeds
With 14.9-26 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
