Tractor · 1958Unverified

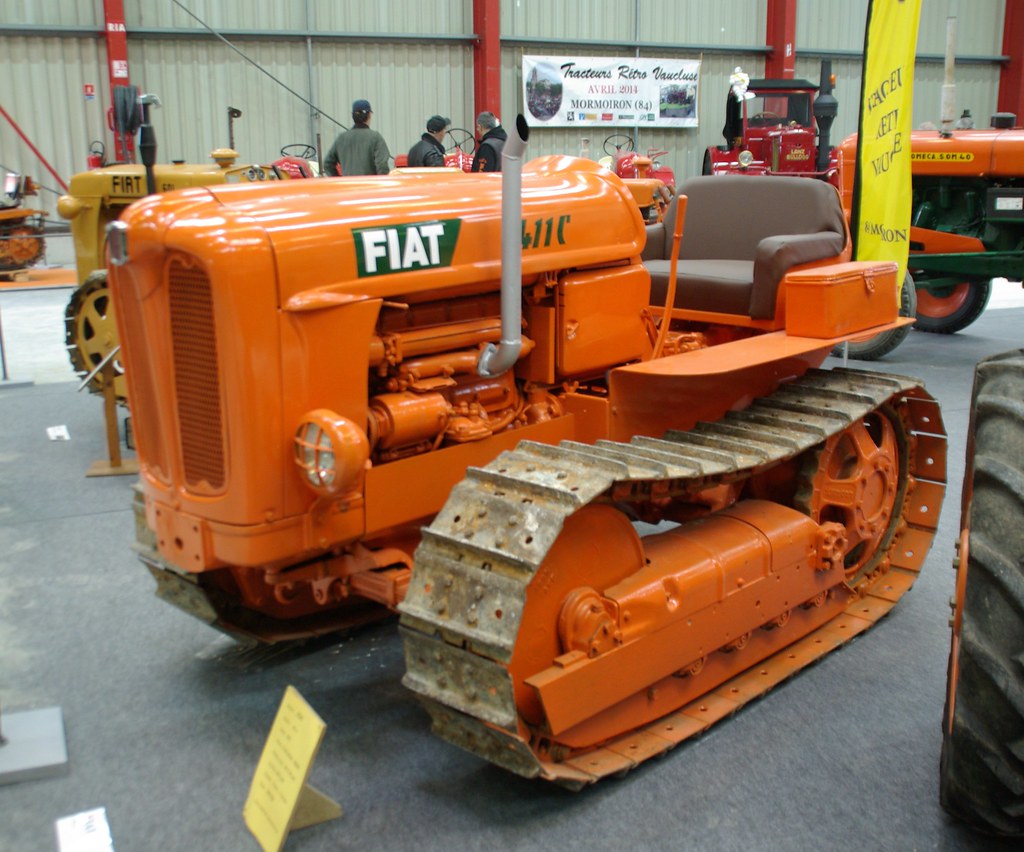

Fiat 411C
Fiat 411C — Agricultural Crawler tractor · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Max power
21.1 kW
Weight
5291 to 5385 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Open operator station.Reference
Variants
411RutilityReference
411RBgasoline engineReference
411TtricycleReference
411CcrawlerReference
421RorchardReference
431RvineyardReference
441Rfour-wheel driveReference
451Cmountain crawlerReference
481Rhigh-cropReference
Engine
Fiat 2.3L 4-cyl dieselReference
Engine29.8 kWReference
Drawbar (tested)21.1 kWReference
FiatReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke85 x 100 mmReference
Power29.8 kWReference
Compression21.5:1Reference
Rated RPM2300Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts24Reference
Power at rated engine speed27.8 kWReference
Max power21.1 kWReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (tested)27.8 kWReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2160Reference
Power at rated PTO speed26.9 kWReference
Dimensions
Wheelbase132 cmReference
Weight5291 to 5385 poundsReference
10.2-inch tracksReference
Length252 cmReference
Width144 cmReference
Height159 cmReference
Weight2399 kgReference
Operating weight2442 kgReference
Ground clearance26 cmReference
Gauge109 cmReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts12Reference
Fiat 411C Tracks
Width25 cmReference
Test results
Diesel 6-speed crawlerJune 30 - July 13, 1959Link: Nebraska Tractor Test 708 fileReference
PTO performanceReference
Fuel use10.6 l/hourReference
Fuel use10.2 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull2334 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
