Tractor · 1958Unverified

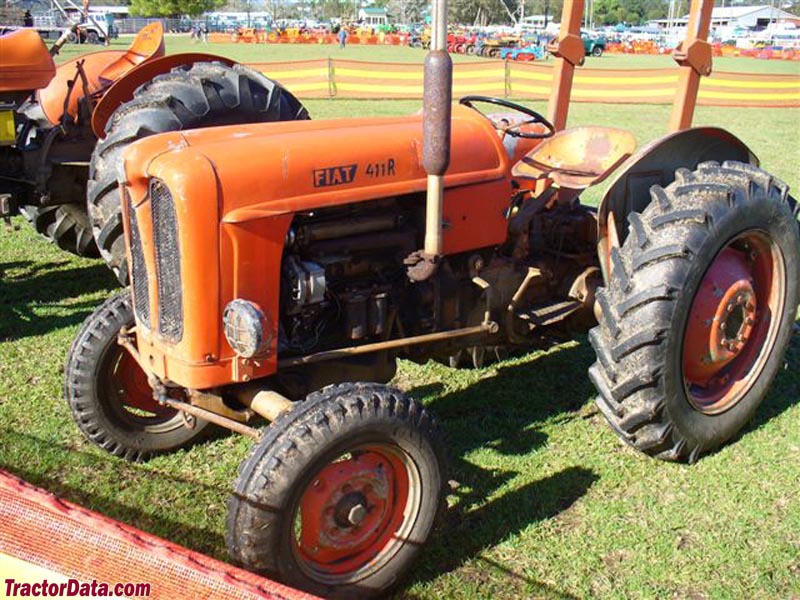

Fiat 411R
Fiat 411R — Utility tractor · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Max power
24.1 kW
Weight
3131 to 3565 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Open operator station.Reference
Variants
411RutilityReference
411RBgasoline engineReference
411TtricycleReference
411CcrawlerReference
421RorchardReference
431RvineyardReference
441Rfour-wheel driveReference
451Cmountain crawlerReference
481Rhigh-cropReference
Engine
FIAT 2.3L 4-cyl dieselReference
Engine29.8 kWReference
Drawbar (tested)24.1 kWReference
FIATReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke85 x 100 mmReference
Power29.8 kWReference
Air cleaneroil bathReference
Compression21.5:1Reference
Rated RPM2300Reference
Firing order1-3-4-2Reference
Starter volts24Reference
Power at rated engine speed27.4 kWReference
Max power24.1 kWReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchmechanical dry discReference
PTO & Hydraulics
PTO (tested)27.4 kWReference
Rear PTOliveReference
Clutchmechanical dry discReference
Rear PTO Type540Reference
Engine RPM540@2160Reference
Power at rated PTO speed26.3 kWReference
Dimensions
Wheelbase182 cmReference
Weight3131 to 3565 poundsReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Length290 cmReference
Width150 cmReference
Height140 cmReference
Ground clearance48 cmReference
Front tread128 to 198 cmReference
Rear tread119 to 189 cmReference
1420 kgReference
Operating1617 kgReference
Ballasted2626 kgReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 6-speed 2WDJune 29, 2959 - July 13, 1959Link: Nebraska Tractor Test 707 fileReference
PTO performanceReference
Fuel use11.0 l/hourReference
Fuel use10.2 l/hourReference
Drawbar performanceReference
Fuel use10.6 l/hourReference
Gear 4 used for power test.Reference
Max pull2052 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
