Tractor · 1965Unverified

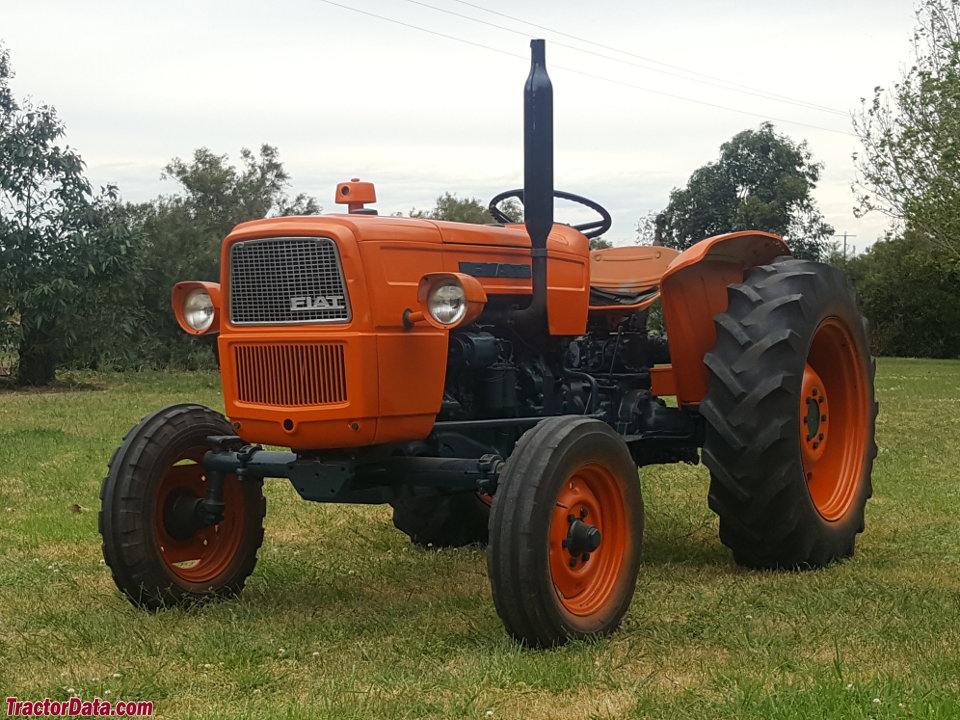

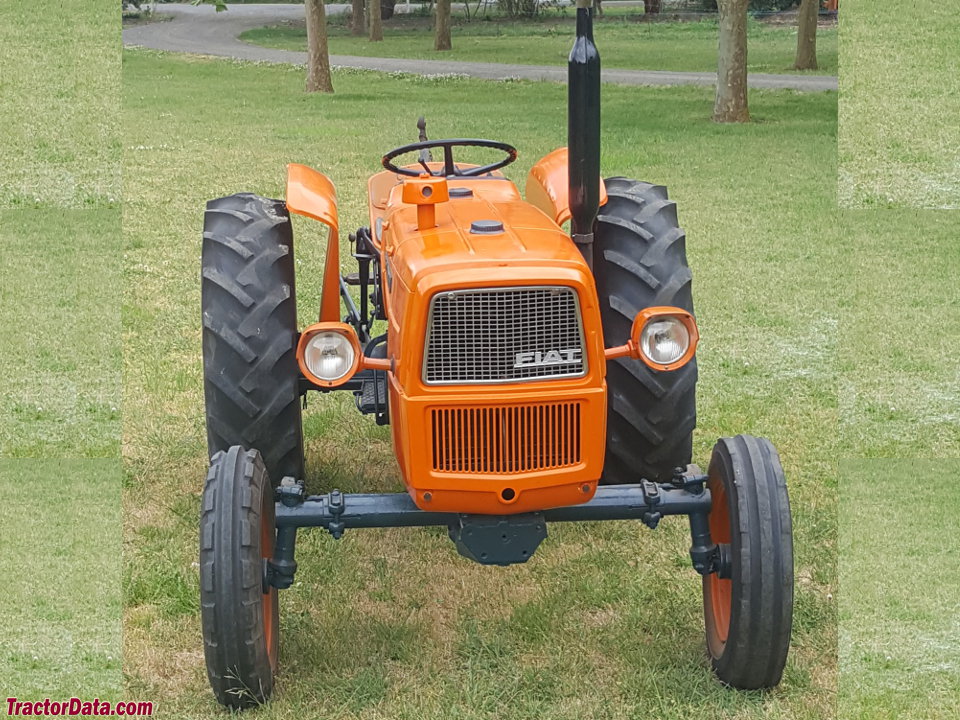

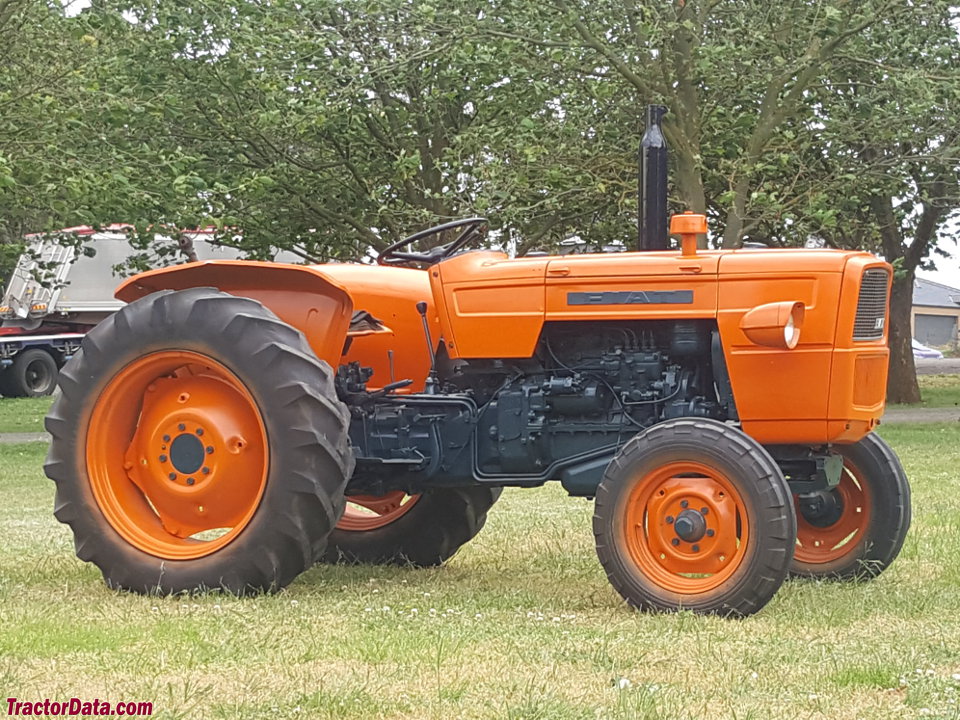

Fiat 415

Name: Fiat 415
Brand: Fiat

Fiat 415 · 44 hp. Reference specifications; pending source verification.

The Fiat 415 is a tractor with an approximate rating of 44 hp, positioning it at the lighter end of its class. The Fiat 415 was manufactured from 1965 to 1968. It features a 4-cylinder diesel liquid-cooled engine paired with a mechanical front-wheel drive system and a 6-speed gearbox. The tractor has an operating weight of between 3505 and 4057 pounds, making it suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

44 hp

Weight

3505 to 4057 pounds

Catalogue coverage

Variants represented

Richest spec table

44 rows

Recorded power

44 hp

Recorded weight

1589 kg

Transmissions

6-speed

Production years

1965-1968

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Two- or four-wheel driveReference

Open operator station.Reference

Engine

Fiat 2.3L 4-cyl dieselReference

Fuel tank50.0 LReference

Engine32.8 kWReference

FiatReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.3 LReference

Bore/Stroke85 x 100 mmReference

Power32.8 kWReference

Compression21.5:1Reference

Rated RPM2500Reference

Firing order1-3-4-2Reference

Starter volts24Reference

Oil capacity7.8 LReference

Transmission

6-speedReference

Gears6 forward and 2 reverseReference

PTO & Hydraulics

Pump flow18.5 lpmReference

Rear lift1200 kgReference

Rear PTOlive (two-stage cluch)Reference

Rear PTO Type540Reference

Dimensions

Wheelbase191 cmReference

Weight3505 to 4057 poundsReference

Front tire6.00-16Reference

Rear tire12.4-28Reference

Ag front6.00-16Reference

Ag front7.50-20 (MFWD)Reference

Ag rear12.4-28Reference

Ag rear12.4-28 (MFWD)Reference

Length299 cmReference

Width128 cmReference

Height130 cmReference

2WD Weight1589 kgReference

4WD Weight1840 kgReference

Ground clearance39 cmReference

Electrical

GroundnegativeReference

Charging systemgeneratorReference

Charging amps8Reference

Charging volts24Reference

Batteries2Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
