Tractor · 1961Unverified

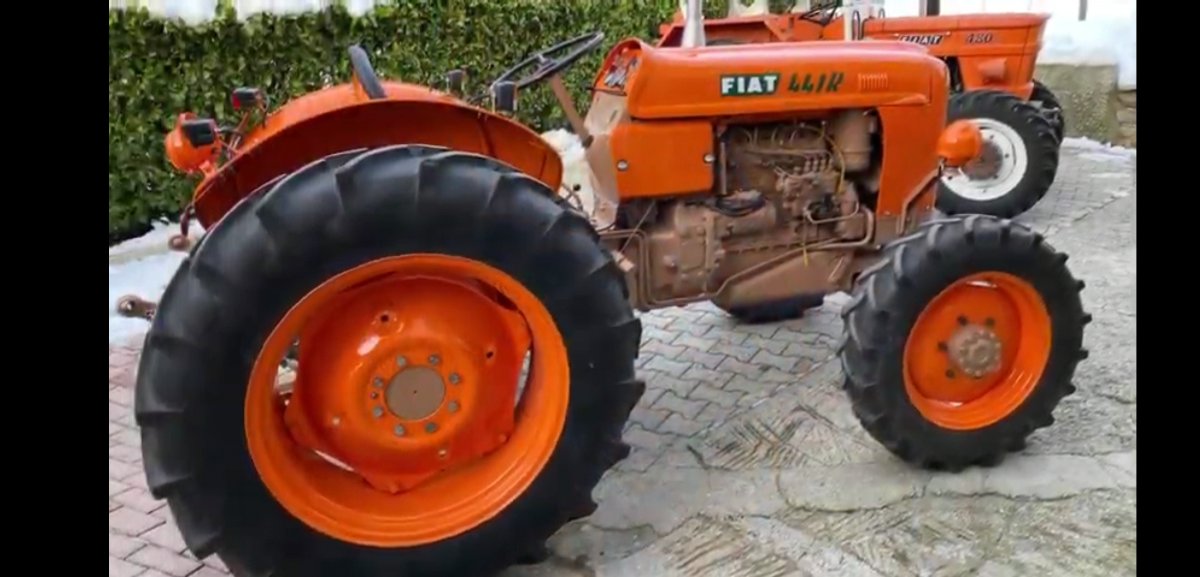

Fiat 441R
Fiat 441R — Utility tractor · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
1769 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Four-wheel driveReference
Open operator station.Reference
Variants
411RutilityReference
411RBgasoline engineReference
411TtricycleReference
411CcrawlerReference
421RorchardReference
431RvineyardReference
441Rfour-wheel driveReference
451Cmountain crawlerReference
481Rhigh-cropReference
Engine
FIAT 2.3L 4-cyl dieselReference
Engine29.8 kWReference
FIATReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke85 x 100 mmReference
Power29.8 kWReference
Compression21.5:1Reference
Rated RPM2300Reference
Firing order1-3-4-2Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase183 cmReference
Weight1769 kgReference
Front tire7.50-20Reference
Rear tire12.4-28Reference
Ag front7.50-20Reference
Ag rear12.4-28Reference
Length297 cmReference
Width160 cmReference
Height (hood)139 cmReference
Ballasted weight2049 kgReference
Front tread139 to 150 cmReference
Rear tread119 to 189 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
