Tractor · 1983Unverified

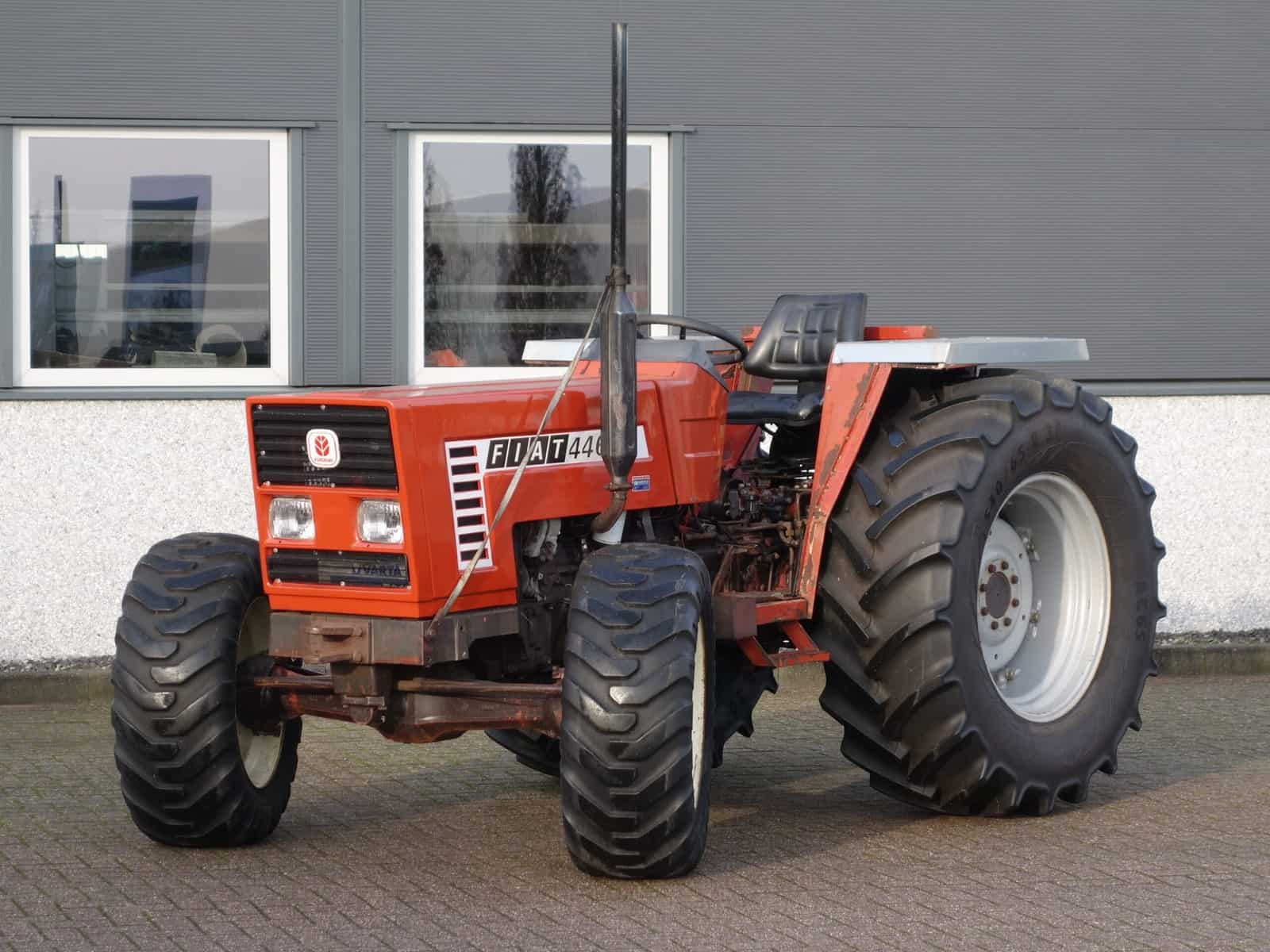

Fiat 446
Fiat 446 — Utility tractor · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
4299 to 4762 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Drum brakesReference
Four-post ROPS.Reference
Variants
446DT4WDReference
Engine
Fiat 2.6L 3-cyl dieselReference
Fuel tank60.9 LReference
Engine37.3 kWReference
Fiat 8035.02Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke100 x 110 mmReference
Power37.3 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2600Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.5 LReference
Coolant capacity10.5 LReference
Transmission
8-speed gearReference
12-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch279.4mm dry discReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
Typeopen centerReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2160Reference
Dimensions
2WD Wheelbase204 cmReference
4WD Wheelbase201 cmReference
Weight4299 to 4762 poundsReference
Front tire6.00-16Reference
2WD Rear tire12.4/11-32Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 12.4/11-32Reference
2WD Standard tires (ag)Front: 8.3/8-24. Rear: 12.4/11-32Reference
2WD Length320 cmReference
4WD Length327 cmReference
2WD Clearance (front axle)49 cmReference
4WD Clearance (front axle)32 cmReference
2WD Front tread139 to 189 cmReference
4WD Front tread144 to 187 cmReference
Rear tread130 to 189 cmReference
2WD1950 kgReference
4WD2160 kgReference
2WD Ballasted2689 kgReference
4WD Ballasted2899 kgReference
Electrical
Charging systemalternatorReference
Charging amps33Reference
Battery volts12Reference
Fiat 446 Height
2WD Hood142 cmReference
4WD Hood139 cmReference
ROPS236 cmReference
Exhaust235 cmReference
Speeds
With 12.4/11-32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
