Tractor · 1985Unverified

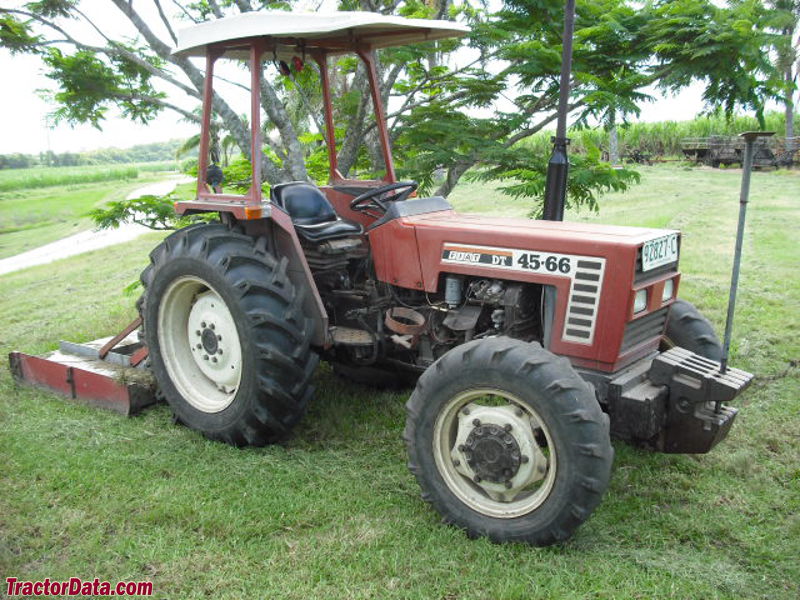

Fiat 45-66
Fiat 45-66 — 66 Series · 44 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
44 hp
Weight
4255 to 4740 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Engine
Iveco 2.7L 3-cyl dieselReference
Fuel tank42.0 LReference
Engine33.1 kWReference
Iveco 8035.06Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 115 mmReference
Power33.1 kWReference
Rated RPM2500Reference
Torque154.0 NmReference
Torque RPM1300Reference
Starter typeelectricReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Pump flow34.5 lpmReference
Rear lift2125 kgReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase199 cmReference
4WD Wheelbase189 cmReference
Weight4255 to 4740 poundsReference
Front tire6.00-16Reference
Rear tire13.6R28Reference
Ag front6.00-16 (2WD)Reference
Ag front9.5R20 (4WD)Reference
Ag rear13.6R28Reference
Length324 cmReference
Height226 cmReference
2WD Weight1930 kgReference
4WD Weight2150 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
