Tractor · 1968Unverified

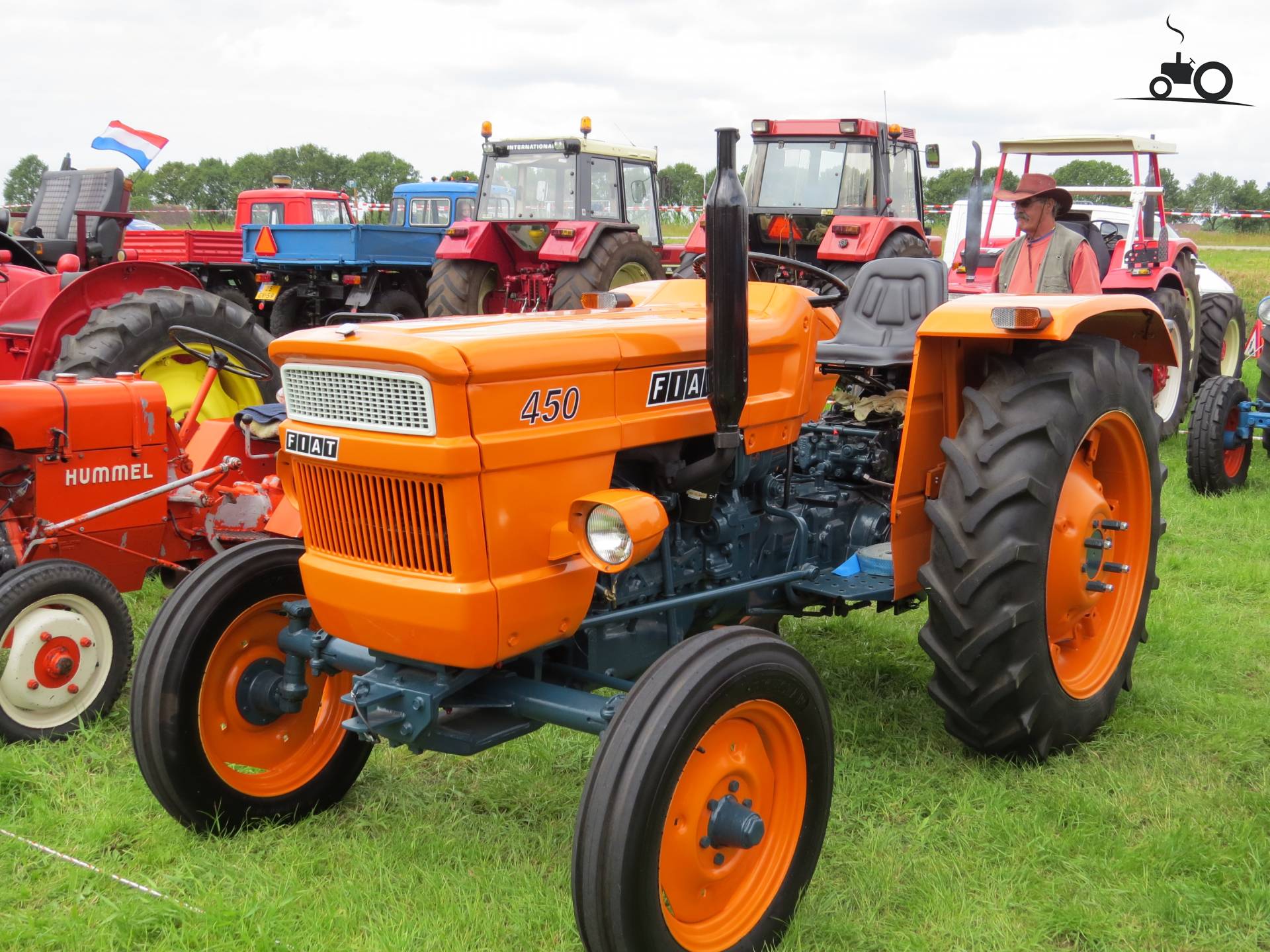

Fiat 450
Fiat 450 · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
3880 to 4840 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Mechanical band brakesReference
Open operator station. Cab optional.Reference
Variants
450DT4WDReference
Engine
Fiat 2.3L 3-cyl dieselReference
Fuel tank54.1 LReference
Engine33.6 kWReference
Fiat 8035Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke95 x 110 mmReference
Power33.6 kWReference
Compression17:1Reference
Rated RPM2400Reference
Torque155.9 NmReference
Torque RPM1400Reference
Starter volts12Reference
Starter power3.0 kWReference
Transmission
8-speed gearReference
9-speed partically synchronizedReference
12-speed creeperReference
TypegearReference
Gears8 forward and 2 reverseReference
Four gears (1-4), plus reverse (R), in two ranges (low/high).Reference
Typepartically synchronizedReference
Gears9 forward and 3 reverseReference
Clutch254mm dry discReference
Gear parts 2/3, 5/6, and 8/9 are synchronized.Reference
TypecreeperReference
Gears12 forward and 3 reverseReference
Optional creeper for the 8-speed transmission add an additional lower range.Reference
PTO & Hydraulics
PTO (claimed)26.8 kWReference
Typeopen centerReference
Pressure147.2 barReference
Pump flow21.8 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at ends)1399 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1970Reference
Dimensions
Wheelbase195 cmReference
Weight3880 to 4840 poundsReference
Front tire6.00-16Reference
2WD Rear tire12.4/11-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 12.4/11-28Reference
4WD Standard tires (ag)Front: 7.50-20. Rear: 12.4/11-28Reference
Length313 cmReference
2WD Weight1759 kgReference
4WD Weight2195 kgReference
2WD Clearance (front axle)46 cmReference
4WD Clearance (front axle)28 cmReference
2WD Front tread127/137/147/157/167/177/187 cmReference
4WD Front tread142 cmReference
Rear tread132/142/152/162/172/182/193 cmReference
Steering wheel146 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Fiat 450 Height
Hood137 cmReference
Cab219 cmReference
Speeds
With 12-28 rear tires.Reference
With 12.4/11-28 rear tiresReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
