Fiat 470

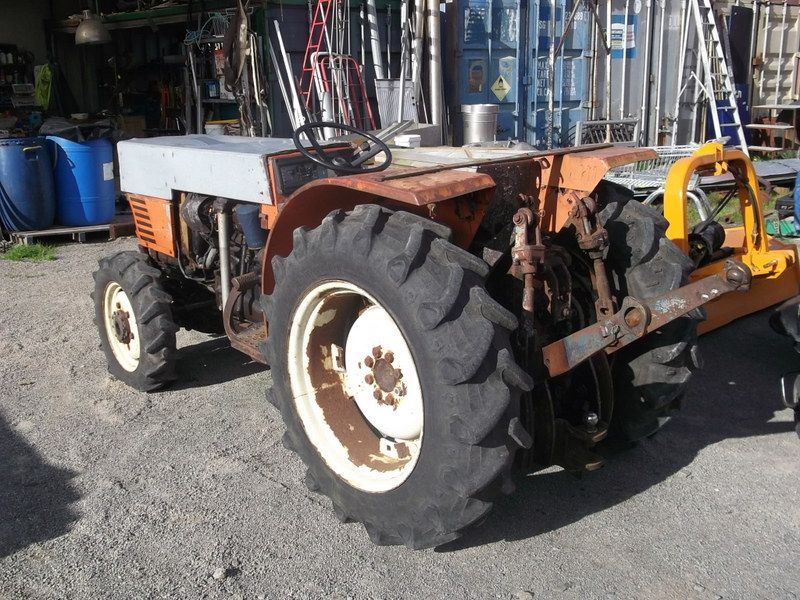

Fiat 470 — Orchard/Vineyard tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
3120 to 3373 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Open operator station.Reference
Variants
470DT4WDReference
Engine
Fiat 2.3L 3-cyl dieselReference
FiatReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke95 x 110 mmReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
9-speed creeperReference
Gears6 forward and 2 reverseReference
Clutchtran1nameReference
TypecreeperReference
Gears9 forward and 3 reverseReference
Optional creeper adds an additional low range to the standard transmission.Reference
Dimensions
2WD Wheelbase186 cmReference
4WD Wheelbase178 cmReference
Weight3120 to 3373 poundsReference
Front tire7.5-16Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7.5-16. Rear: 11.2-24Reference
2WD Length314 cmReference
4WD Length316 cmReference
Width121 cmReference
2WD Weight1415 kgReference
4WD Weight1529 kgReference
Clearance (front axle)37 cmReference
Front tread78 to 98 cmReference
Rear tread73 to 123 cmReference
2WD Steering wheel123 cmReference
4WD Steering wheel119 cmReference
470 Serial Number Location
Serial number on the left side of the tractor chassis.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH92Reference
Fiat 470 Height
Hood115 cmReference
Speeds
With 11.2/10-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
