Tractor · 1989Unverified

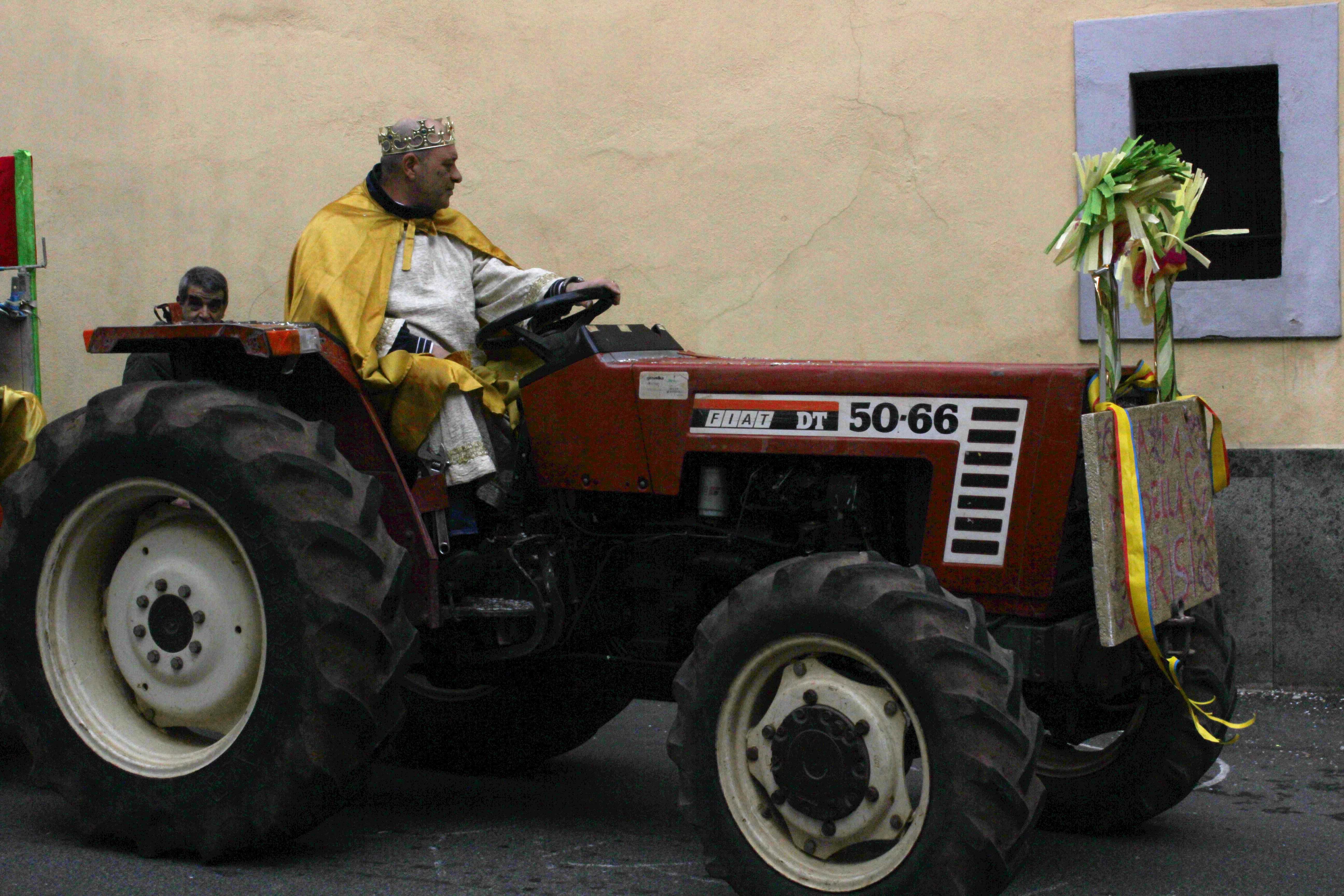

Fiat 50-66
Fiat 50-66 — 66 Series · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
4255 to 4740 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Engine
Iveco 2.7L 3-cyl dieselReference
Fuel tank45.0 LReference
Engine36.8 kWReference
Iveco 8035.06Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 115 mmReference
Power36.8 kWReference
Rated RPM2500Reference
Starter typeelectricReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear lift2125 kgReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase199 cmReference
4WD Wheelbase189 cmReference
Weight4255 to 4740 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6R28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6R28Reference
4WD Standard tires (ag)Front: 9.5R20. Rear: 13.6R28Reference
Length324 cmReference
2WD Weight1930 kgReference
4WD Weight2150 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
