Tractor · 1992Unverified

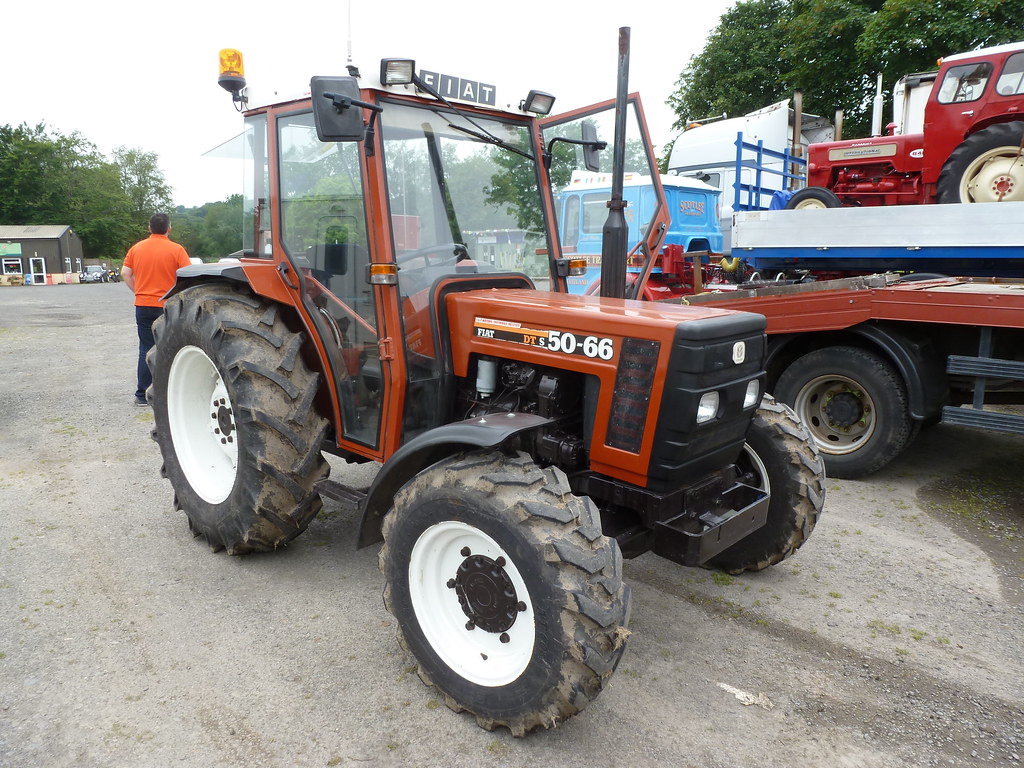

Fiat 50-66S

Name: Fiat 50-66S
Brand: Fiat

Fiat 50-66S — 66S Series · 49 hp. Reference specifications; pending source verification.

The Fiat 50-66S is a compact tractor model with a rated engine output of 49 hp. Manufactured between 1992 and 1996, it features a 3-cylinder diesel liquid-cooled engine, paired with a 12-speed gearbox and four-wheel drive. The model weighs between 4685 and 5236 pounds, and is designed for tasks covering around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

49 hp

Weight

4685 to 5236 pounds

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

49 hp

Recorded weight

2125 kg

Transmissions

12-speed gear

Production years

1992-1996

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard.Reference

Engine

Iveco 2.7L 3-cyl dieselReference

Engine36.8 kWReference

Iveco 8035.06Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke100 x 115 mmReference

Power36.8 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed gearReference

12-speed shuttleReference

20-speed creeperReference

TypegearReference

Gears12 forward and 4 reverseReference

TypeshuttleReference

Gears12 forward and reverseReference

TypecreeperReference

Gears20 forward and 8 reverseReference

PTO & Hydraulics

Rear lift2125 kgReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/750Reference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase199 cmReference

4WD Wheelbase190 cmReference

Weight4685 to 5236 poundsReference

Front tire5.50-16Reference

2WD Rear tire12.4/11-28Reference

2WD Standard tires (ag)Front: 5.50-16. Rear: 12.4/11-28Reference

4WD Standard tires (ag)Front: 7.50-20. Rear: 12.4/11-28Reference

2WD Length297 cmReference

4WD Length296 cmReference

2WD Weight2125 kgReference

4WD Weight2375 kgReference

2WD Ground clearance44 cmReference

4WD Ground clearance33 cmReference

2WD Front tread130 to 180 cmReference

4WD Front tread138 to 181 cmReference

Rear tread120 to 180 cmReference

Steering wheel145 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Fiat 50-66S Height

Hood127 cmReference

Cab224 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
