Tractor · 1971Unverified

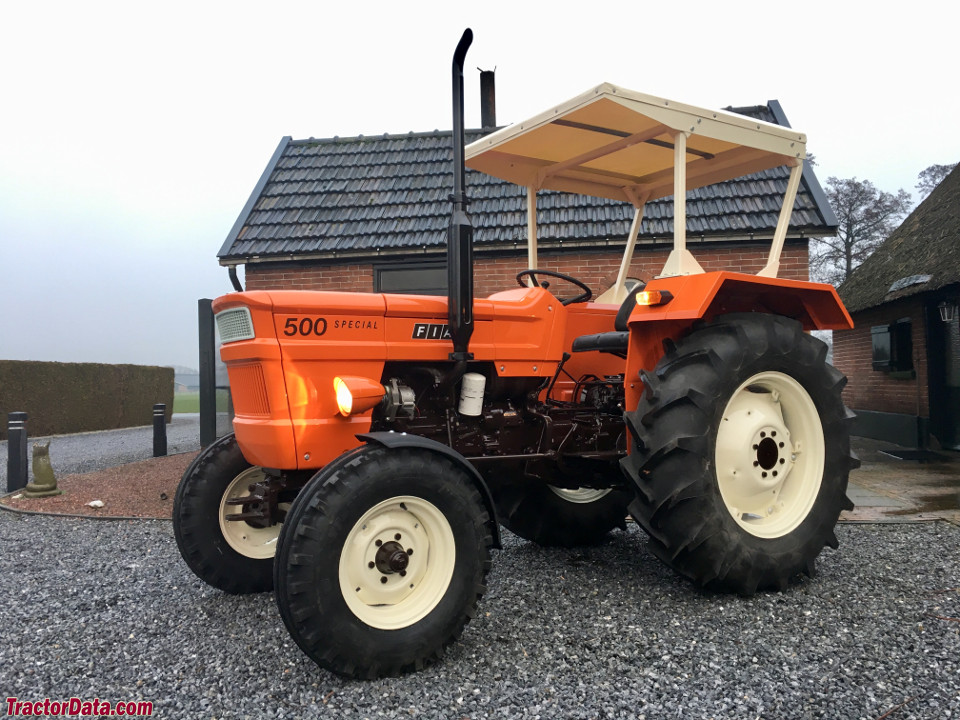

Fiat 500
Fiat 500 · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
4023 to 4961 pounds
Hover a source tag to verify
Overview
ManufacturerFiatReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Band brakesReference
Open operator station.Reference
Engine
Fiat 2.6L 3-cyl dieselReference
Fuel tank54.1 LReference
Engine37.3 kWReference
Fiat 8035Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke100 x 110 mmReference
Power37.3 kWReference
Compression17:1Reference
Rated RPM2600Reference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Pump flow23.8 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1400 kgReference
Rear PTO Type540Reference
Dimensions
2WD Wheelbase192 cmReference
4WD Wheelbase195 cmReference
Weight4023 to 4961 poundsReference
Front tire7.50-16Reference
2WD Rear tire12.4/11-32Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 12.4/11-32Reference
4WD Standard tires (ag)Front: 8.3/8-24. Rear: 12.4/11-32Reference
2WD Length302 cmReference
4WD Length306 cmReference
2WD 55.9 4WD} Height (hood)143 cmReference
Height (cab)234 cmReference
2WD Weight1824 kgReference
4WD Weight2250 kgReference
2WD Ground clearance51 cmReference
4WD Ground clearance32 cmReference
2WD Front tread132 to 201 cmReference
4WD Front tread139/150 cmReference
Rear tread121 to 192 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
