Tractor · 1970Unverified

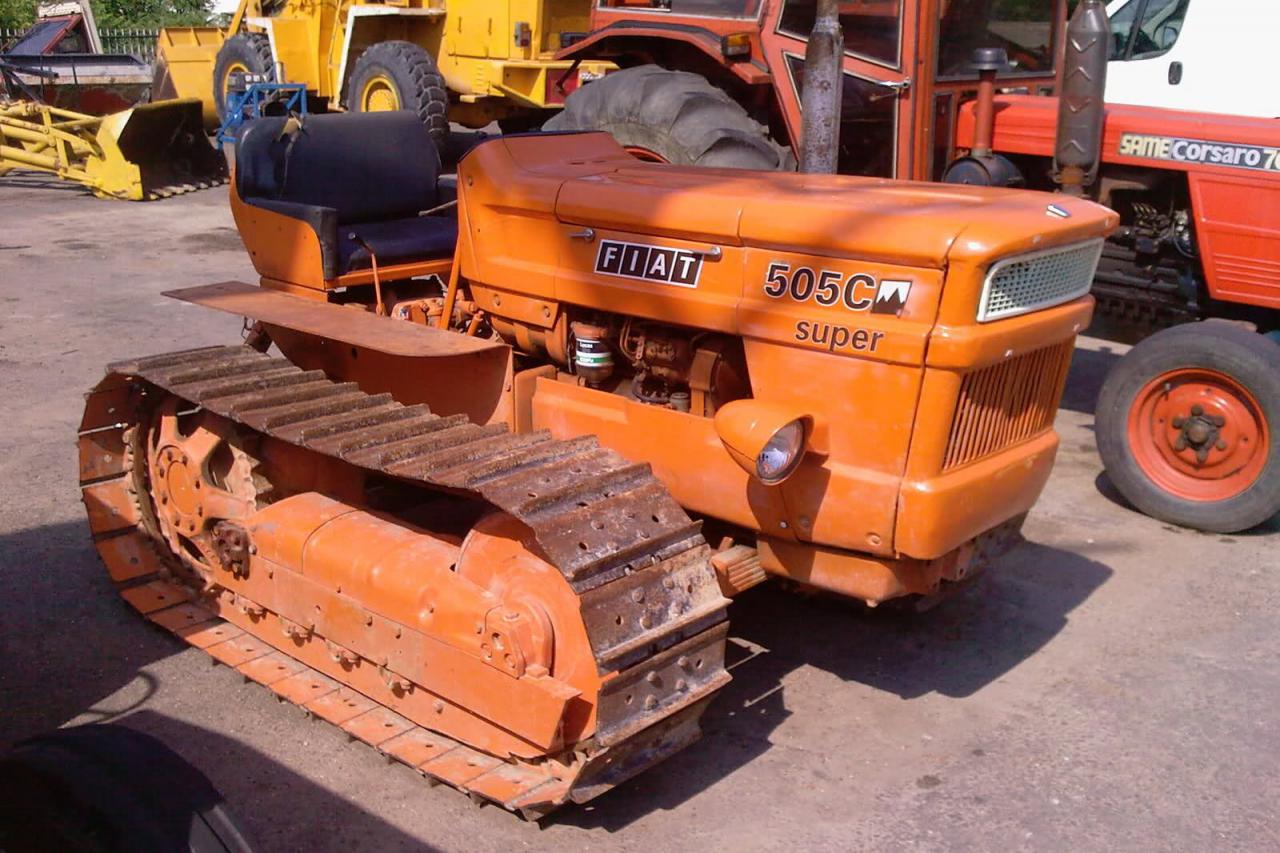

Fiat 505C

Name: Fiat 505C
Brand: Fiat

Fiat 505C — Agricultural Crawler tractor · 50 hp. Reference specifications; pending source verification.

The Fiat 505C is a tractor with a rated power of 50 hp, positioning it in the lighter end of its class. This model was produced from 1970 to 1982. It features a 3-cylinder diesel liquid-cooled engine, paired with a tracked undercarriage and a 6-speed gearbox. Its listed operating weight ranges from 5300 to 5750 pounds, accommodating operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

50 hp

Weight

5300 to 5750 pounds

Catalogue coverage

Variants represented

Richest spec table

44 rows

Recorded power

50 hp

Transmissions

6-speed gear

Production years

1970-1982

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Agricultural Crawler tractorReference

DrivecrawlerReference

Open operator station.Reference

Variants

505CVvineyardReference

505CMmountainReference

Engine

Fiat 2.6L 3-cyl dieselReference

Engine37.3 kWReference

Fiat 8035Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.6 LReference

Bore/Stroke100 x 110 mmReference

Power37.3 kWReference

Compression17:1Reference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

6-speed gearReference

TypegearReference

Gears6 forward and 2 reverseReference

PTO & Hydraulics

Typeopen centerReference

Rear TypeII/IReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase131 cmReference

Weight5300 to 5750 poundsReference

12.2-inch tracksReference

Length267 cmReference

505C Width144 cmReference

505CV Width117 cmReference

505CM Width166 cmReference

Height (hood)122 cmReference

Height (exhaust)166 cmReference

Ground clearance26 cmReference

505C Gauge109 cmReference

505CV Gauge85 cmReference

505CM Gauge130 cmReference

505C Operating2500 kgReference

505CV Operating2404 kgReference

505CM Operating2608 kgReference

Fiat 505C Tracks

505C width30 cmReference

505CV width24 cmReference

505CM width36 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
