Tractor · 1960Unverified

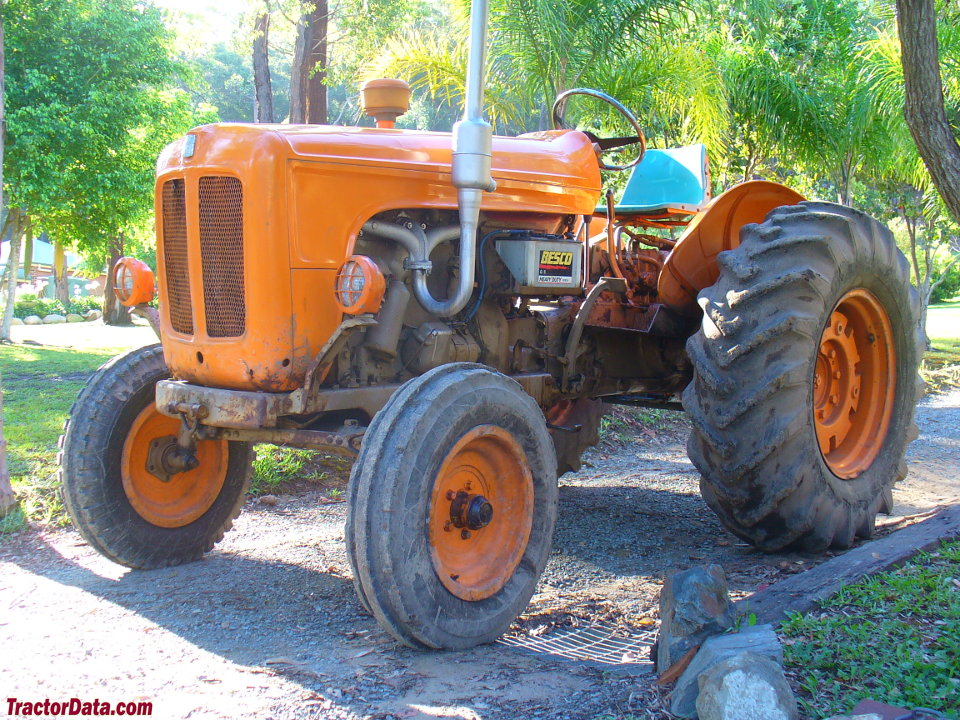

Fiat 513R
Fiat 513R · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
2530 kg
Hover a source tag to verify
Overview
ManufacturerFiatReference
Built in Torino, ItalyReference
Two-wheel driveReference
Steeringmanual, screw-typeReference
Dry disc brakesReference
Open operator station.Reference
Engine
FIAT 4.2L 4-cyl dieselReference
FIAT 4.4L 4-cyl dieselReference
Fuel tank70.8 LReference
Engine41.0 kWReference
Drawbar (claimed)39.0 kWReference
FIAT CO1D/55Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power41.0 kWReference
Compression15:1Reference
Rated RPM1750Reference
Torque240.3 NmReference
Torque RPM1200Reference
Firing order1-3-4-2Reference
Starter volts24Reference
FIAT CO2DReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Torque245.2 NmReference
Torque RPM1100Reference
Transmission
7-speed gearReference
TypegearReference
Gears7 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)41.1 kWReference
Typeopen centerReference
Pump flow23.5 lpmReference
Rear lift1000 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM623@1750Reference
Dimensions
Wheelbase204 cmReference
Weight2530 kgReference
Front tire7.50-18Reference
Rear tire14.9/13-28Reference
Ag front7.50-18Reference
Ag front6.00-19Reference
Ag rear14.9/13-28Reference
Ag rear12.4/11-36Reference
Length334 cmReference
Width194 cmReference
Width245 cmReference
Height187 cmReference
Ground clearance48 cmReference
Electrical
Charging systemgeneratorReference
Charging amps8.5Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
