Tractor · 1985Unverified
Fiat 55-66
Fiat 55-66 — 66 Series · 54 hp. Reference specifications; pending source verification.

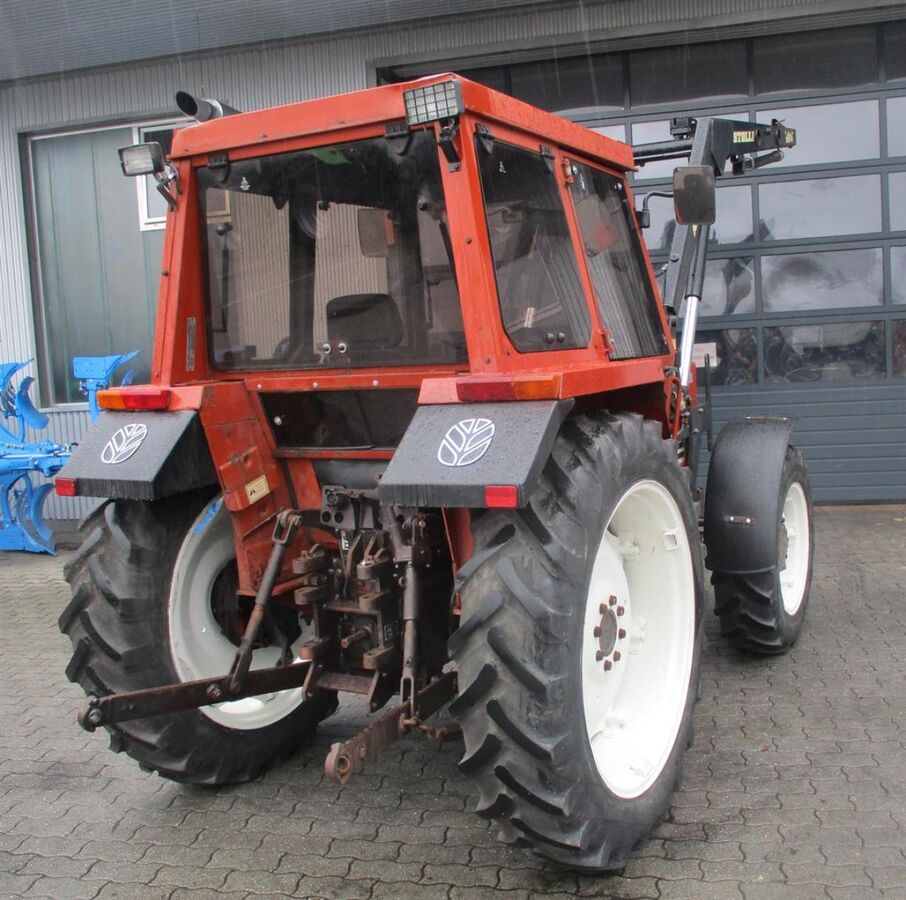

The Fiat 55-66 is a tractor with a rated power of 54 hp, positioning it at the lighter end of its class. Produced from 1985 to 1992, this tractor is equipped with a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a 12-speed gearbox. Its listed operating weight is 2925 kg, with a suitability for operations of up to 200 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
2925 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
54 hp
Recorded weight
2925 kg
Transmissions
12-speed
Production years
1985-1992
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Engine
Iveco 2.7L 3-cyl dieselReference
Fuel tank73.1 LReference
Engine40.5 kWReference
Iveco 8035.06Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 115 mmReference
Power40.5 kWReference
Rated RPM2500Reference
Torque176.0 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Pump flow34.5 lpmReference
Rear lift2900 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase218 cmReference
Weight2925 kgReference
Front tire7.50-16Reference
Rear tire14.9R28Reference
Ag front7.50-16 (2WD)Reference
Ag front11.2R24 (4WD)Reference
Ag rear14.9R28Reference
Length363 cmReference
Height238 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
