Tractor · 1989Unverified

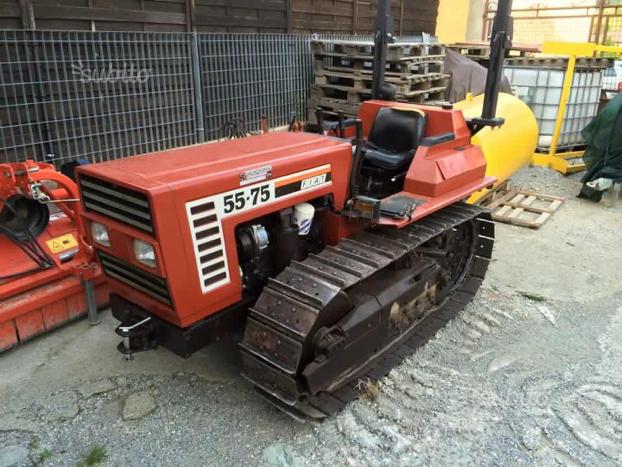

Fiat 55-75
Fiat 55-75 — 75 Series · 54 hp. Reference specifications; pending source verification.
The Fiat 55-75 is a tractor with an approximate power rating of 54 hp, positioning it in the lighter end of its class. It was manufactured from 1989 to 1992 and features a 3-cylinder diesel liquid-cooled engine, coupled with a tracked undercarriage and an 8-speed gearbox. The tractor has a listed operating weight of 2839 kg and is capable of operating on up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
2839 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
54 hp
Recorded weight
2839 kg
Transmissions
8-speed
Production years
1989-1992
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Engine
Fiat 2.7L 3-cyl dieselReference
Engine40.4 kWReference
Fiat 8035.06Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 115 mmReference
Power40.4 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
16-speedReference
Gears8 forward and 4 reverseReference
Gears8 forward and reverseReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Rear lift3284 kgReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase134 cmReference
Weight2839 kgReference
11.8-inch tracksReference
Length283 cmReference
Width128 cmReference
Height (hood)109 cmReference
Height (ROPS)129 cmReference
Ground clearance25 cmReference
Gauge100 cmReference
Fiat 55-75 Tracks
Width29 cmReference
Width27 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
