Tractor · 1984Unverified

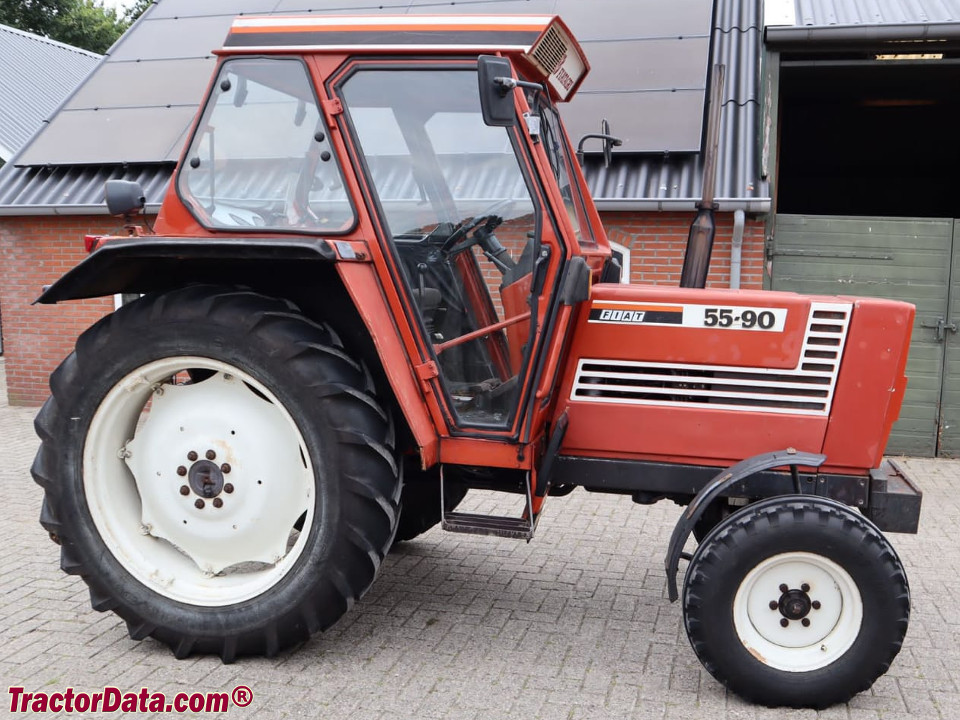

Fiat 55-90

Name: Fiat 55-90
Brand: Fiat

Fiat 55-90 — 90 Series · 55 hp. Reference specifications; pending source verification.

The Fiat 55-90 is a compact tractor with a rated output of 55 hp, making it a suitable option for smaller-scale operations. Produced from 1984 to 1992, this model features a 3-cylinder diesel liquid-cooled engine, which is transmitted through a four-wheel drive system with a 12-speed gearbox. The listed weight of the Fiat 55-90 ranges from 6526 to 6923 pounds, and it is designed for tasks requiring up to 200 acres of land.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

55 hp

Weight

6526 to 6923 pounds

Catalogue coverage

Variants represented

Richest spec table

61 rows

Recorded power

55 hp

Recorded weight

2960 kg

Transmissions

12-speed

Production years

1984-1992

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Utility tractorReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockhydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with heater.Reference

Variants

55-902WDReference

55-90DT4WDReference

Engine

Fiat 2.7L 3-cyl dieselReference

Fuel tank93.1 LReference

Engine41.0 kWReference

Fiat 8035.06Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke100 x 115 mmReference

Power41.0 kWReference

Air cleaneroil bathReference

Rated RPM2500Reference

Starter typeelectricReference

Transmission

12-speedReference

12-speed shuttleReference

20-speed creeperReference

Gears12 forward and 4 reverseReference

Clutch280mm dry discReference

Four gears (1-4) in three ranges (low, medium, high) plus reverse range.Reference

TypeshuttleReference

Gears12 forward and reverseReference

Four gears (1-4) in three ranges (low, medium, high) with left-hand shuttle.Reference

TypecreeperReference

Gears20 forward and 8 reverseReference

Additional two forward and one reverse creeper ranges added to the basic transmission.Reference

PTO & Hydraulics

Pump flow33.7 lpmReference

Rear TypeII/IReference

Rear lift2899 kgReference

Rear PTOindependentReference

Clutch280mm dry discReference

Rear PTO Type540Reference

Rear PTO Type540/1000Reference

Engine RPM540@2200Reference

Engine RPM1000@2375Reference

Dimensions

2WD Wheelbase223 cmReference

4WD Wheelbase219 cmReference

Weight6526 to 6923 poundsReference

Front tire7.50-16Reference

2WD Rear tire16.9-28Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-28Reference

4WD Standard tires (ag)Front: 12.4-20. Rear: 16.9-28Reference

2WD Optional tires (ag)Front: 7.50-16. Rear: 12.4-36Reference

4WD Optional tires (ag)Front: 11.2-24. Rear: 12.4-36Reference

Length336 cmReference

2WD Height (cab)249 cmReference

4WD Height (cab)252 cmReference

2WD Weight2960 kgReference

4WD Weight3140 kgReference

2WD Front tread139 to 189 cmReference

4WD Front tread154 to 187 cmReference

Rear tread150 to 199 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
