Tractor · 1982Unverified

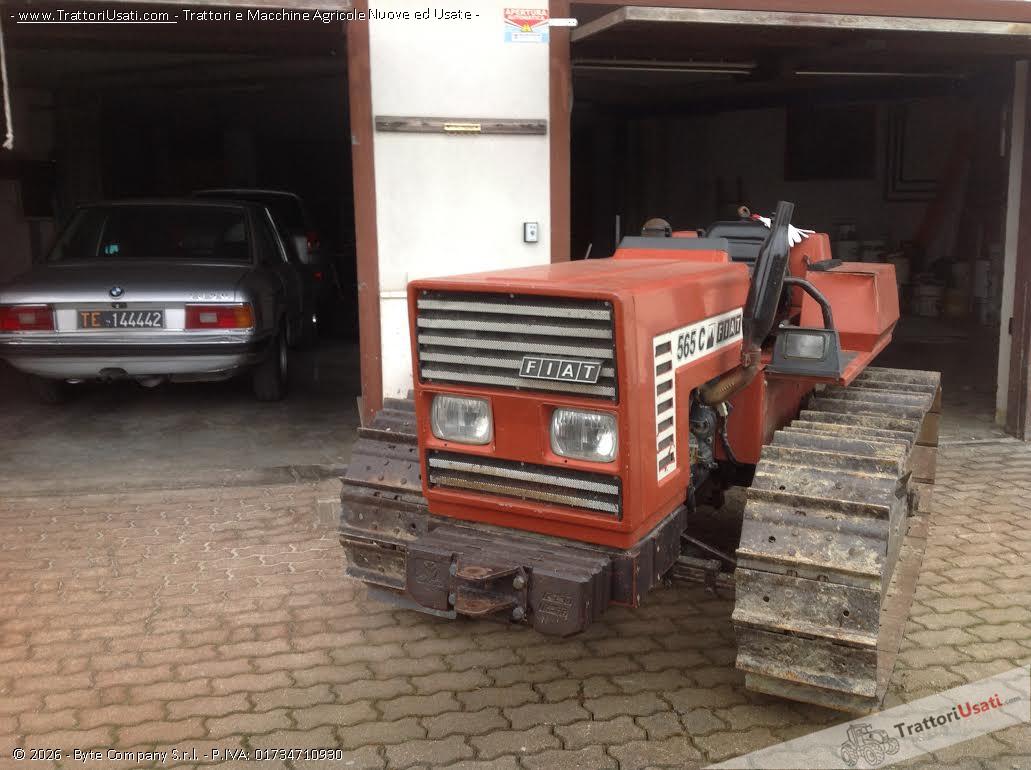

Fiat 565C
Fiat 565C — 65 Series. Reference specifications; pending source verification.
The Fiat 565C is a tractor model that was manufactured between 1982 and 1984. It features a 3-cylinder diesel liquid-cooled engine, paired with an 8-speed gearbox and a tracked undercarriage. The model weighs approximately 3260 kg. The specifications for the Fiat 565C include both UK and US versions.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
3260 kg
Catalogue coverage
Variants represented
2
Richest spec table
25 rows
Recorded weight
3260 kg
Transmissions
8-speed
Production years
1982-1984
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFiatReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Engine
Fiat 2.8L 3-cyl dieselReference
FiatReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.8 LReference
Bore/Stroke103 x 110 mmReference
Starter typeelectricReference
Transmission
8-speedReference
16-speedReference
Gears8 forward and 4 reverseReference
Gears8 forward and reverseReference
Gears16 forward and 8 reverseReference
Dimensions
Wheelbase137 cmReference
Weight3260 kgReference
TracksReference
Length304 cmReference
Width140 cmReference
Height (hood)119 cmReference
Height (exhaust)221 cmReference
Ground clearance26 cmReference
Gauge109 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
