Tractor · 1982Unverified

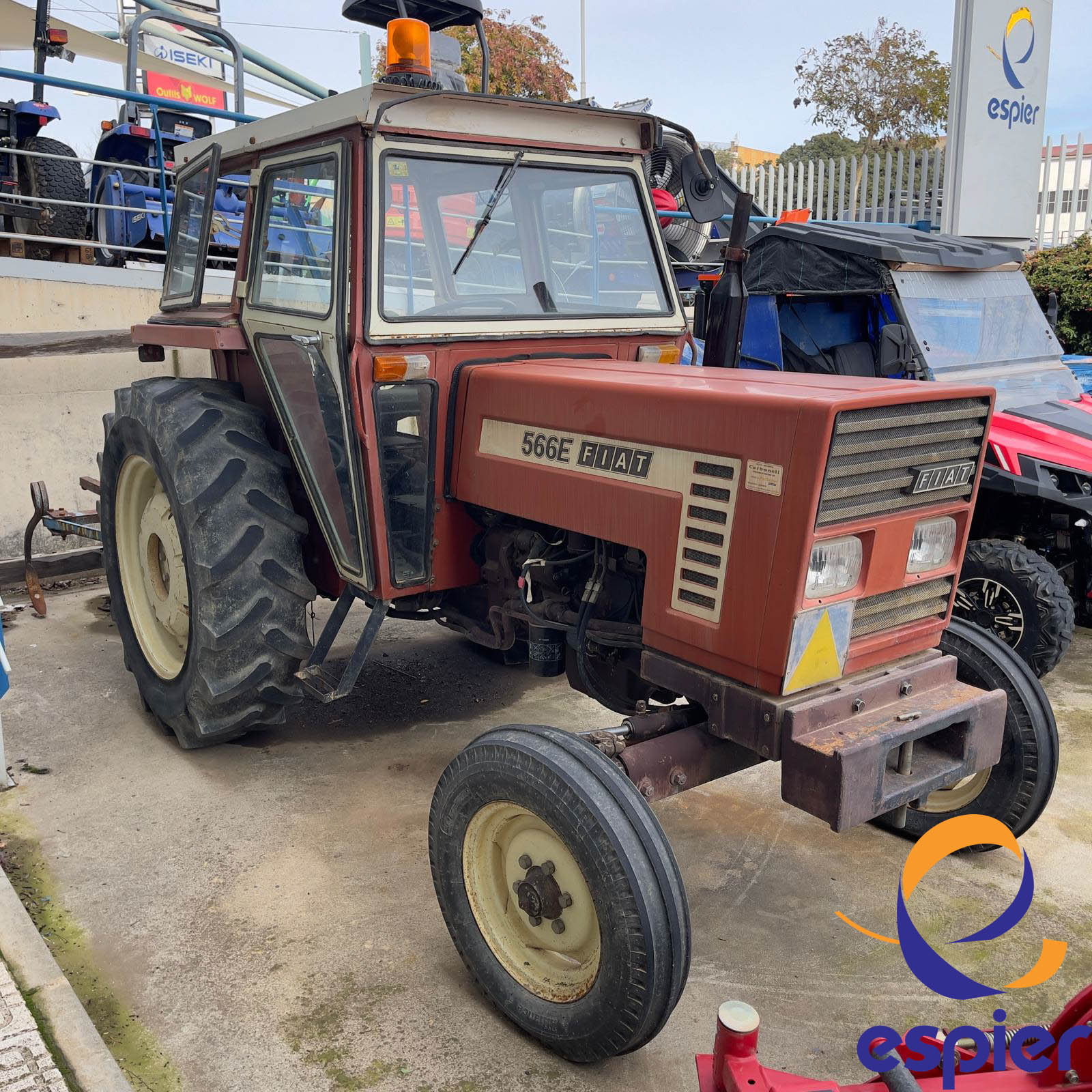

Fiat 566

Name: Fiat 566
Brand: Fiat

Fiat 566 — 66 Series · 58 hp. Reference specifications; pending source verification.

The Fiat 566 is a compact tractor with a rated output of 58 hp, which places it among the smaller options in its class. It was manufactured from 1982 to 1986. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine, driving four wheels through a 12-speed gearbox. Its weight ranges from 6195 to 6680 pounds, making it suitable for land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

58 hp

Weight

6195 to 6680 pounds

Catalogue coverage

Variants represented

Richest spec table

39 rows

Recorded power

58 hp

Recorded weight

2810 kg

Transmissions

12-speed

Production years

1982-1986

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFiatReference

Utility tractorReference

Two- or four-wheel driveReference

Power steering ((Four-wheel drive models.))Reference

Wet disc brakesReference

Cab standard.Reference

Variants

5662WDReference

566DT4WDReference

Engine

Fiat 2.8L 3-cyl dieselReference

Fuel tank72.7 LReference

Engine43.3 kWReference

Fiat 8035.04Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.8 LReference

Bore/Stroke103 x 110 mmReference

Power43.3 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

Gears12 forward and 4 reverseReference

PTO & Hydraulics

Pump flow33.7 lpmReference

Rear TypeIIReference

Rear lift2600 kgReference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase217 cmReference

4WD Wheelbase212 cmReference

Weight6195 to 6680 poundsReference

Front tire7.50-16Reference

2WD Rear tire12.4-36Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 12.4-36Reference

4WD Standard tires (ag)Front: 11.2-24. Rear: 12.4-36Reference

Length368 cmReference

2WD Weight2810 kgReference

4WD Weight3030 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
